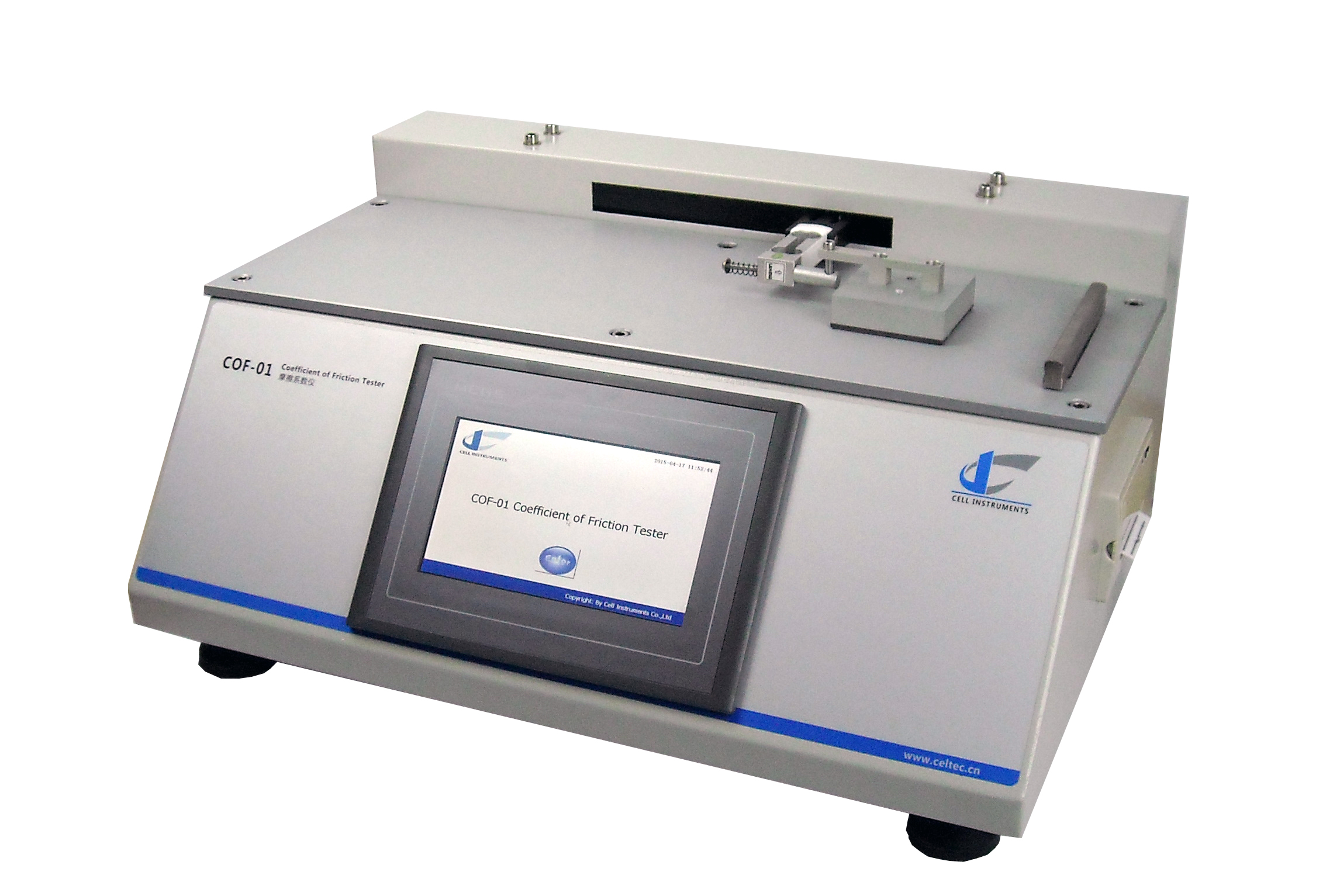

Coefficient of Friction Tester
The Coefficient of Friction Tester determines static and kinetic coefficients of friction. It is suitable for plastic films, sheets, rubber, paper, and paper board.
Technical Specifications
Overview
Precision Friction Testing
The Coefficient of Friction Tester is a specialized instrument designed for the accurate determination of both static and kinetic coefficients of friction. It is suitable for a wide range of materials including plastic films, sheets, rubber, paper, fabrics, and composite belts. By precisely measuring surface smoothness, this device helps optimize packaging line speeds and ensures consistent quality control across various industrial applications.
Technical Specifications
Load Cell Capacity
5 N
Capacity
Test Speeds
- 100 mm/min (ISO)
- 150 mm/min (ASTM)
- Accuracy
- 0.5 F.S.
- Maximum Stroke
- 150 mm
- Sled Weight
- 200 g
- Power Supply
- AC 220V 50Hz
- Dimensions
- 540mm(L) x 380mm(W) x 240mm(H)
Features
Key Features
- PLC control and touch screen operation
- Real-time display of test data, results, and curves
- Measures both static and kinetic friction
- Test results calculation, analysis, and curve superposition
- RS232 output with professional software
- Microprint function for test results
Compliance
- Supported Standards
- ASTM D1894ISO 8295TAPPI T816GB 10006
Applications
Compatible Materials
Plastic FilmsRubberPaperFabricsComposite BeltsWoodCoatingsBrake PadsTires
