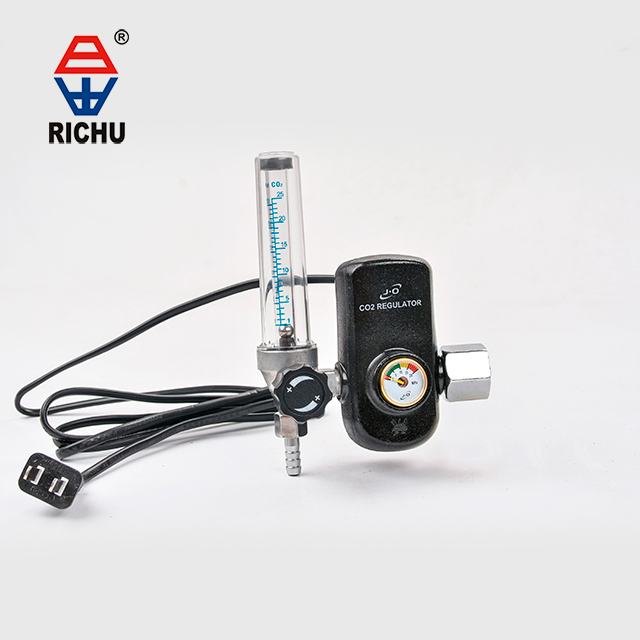

CO2 Pressure Regulator with Flow Meter
This CO2 pressure regulator controls and monitors carbon dioxide gas flow. It features a flow meter, pressure gauge, and adjustment knob for accurate CO2 delivery in various applications.
Technical Specifications
Product Overview
Economic CO2 Heater Flowmeter Regulator
This single-stage CO2 pressure regulator is engineered for precise gas control and monitoring in demanding industrial environments. Featuring integrated heating capabilities and a robust flowmeter, it ensures consistent output for applications requiring accurate CO2 delivery. Designed for reliability and ease of maintenance, the unit utilizes a sintered metal inlet filter to trap impurities and features a solder-free construction.
Technical Specifications
Standards Compliance
EN ISO 2503
Construction Details
- Single stage construction
- Integrated flowmeter and heater
- Sintered metal inlet filter
- No soldered joints for easy maintenance
- Available Voltages
- 220V110V36V
Performance Metrics
Gas Flow Range
0 Lt./min
Min Flow
25 Lt./min
Max Flow
- Cylinder Pressure
- 200 Bar
Model Comparison
Model Specifications
| Model No. | Body Material |
|---|---|
| JTR-189 | Aluminum |
| JTR-189B | Brass |
