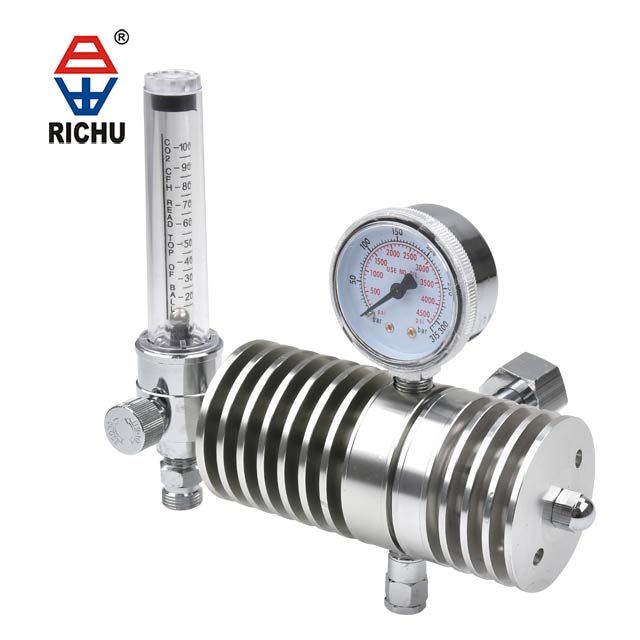

CO2 Aluminum Regulator with Flow Meter
This high-flow CO2 aluminum regulator ensures precise gas flow control. It features a flow meter calibrated for CO2 and a pressure gauge displaying pressure in both psi and bar.
Technical Specifications
Product Overview
High-Performance CO2 Regulation
The SR300 Series is a high-flow aluminum regulator engineered specifically for CO2 applications. Featuring a robust machined aluminum body and a stem-type seat mechanism, it ensures reliable gas delivery for core wire applications and other industrial processes requiring consistent flow. Designed for non-siphoned tube cylinders, this regulator provides precise control through an integrated flow meter and pressure gauge system.
Performance Specifications
- Maximum Inlet Pressure
- 1500 PSIG
- Delivery Range
- 100 SCFH
Design & Construction
- Body Material
- Machined Aluminum
- Diaphragm Size
- 44.5 mm
- Diaphragm Material
- Fabric reinforced neoprene
- Safety Features
- Self-reseating relief valveSintered bronze inlet filter
Operational Guidelines
Important Operational Note
This regulator uses a flow gauge which may become inaccurate if back pressure exceeds 2 PSIG. Back pressure is commonly caused by downstream restrictions such as metering valves, kinked hoses, or excessively long hoses. In environments where back pressure is likely, utilizing a regulator equipped with a flow meter is recommended to ensure accuracy.
Suitable Applications
- CO2 applications (non-siphoned tube cylinders)
- High flow CO2 applications
- Core wire applications
