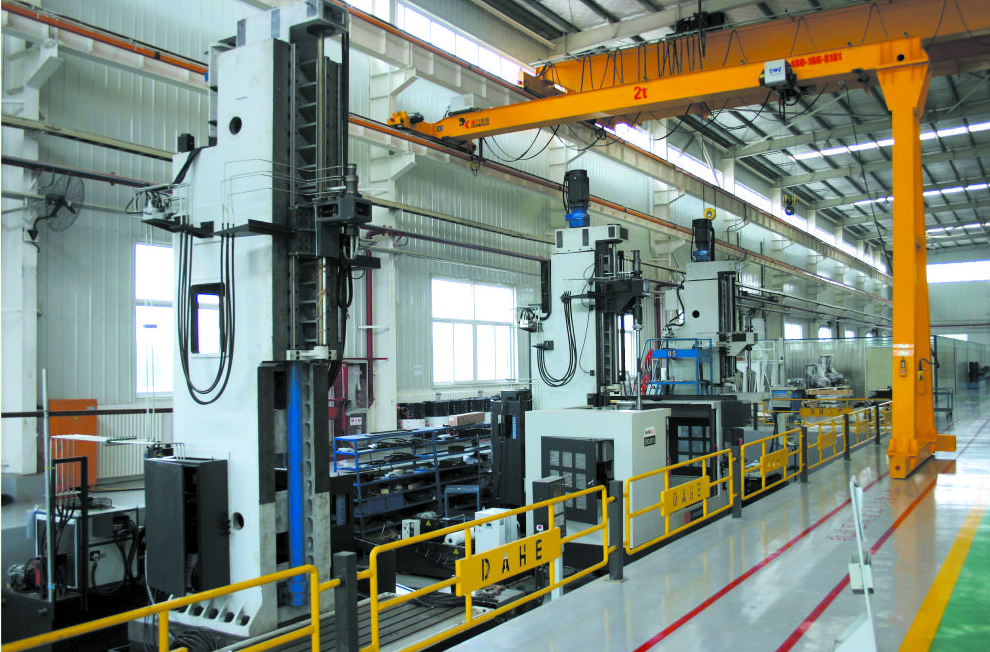

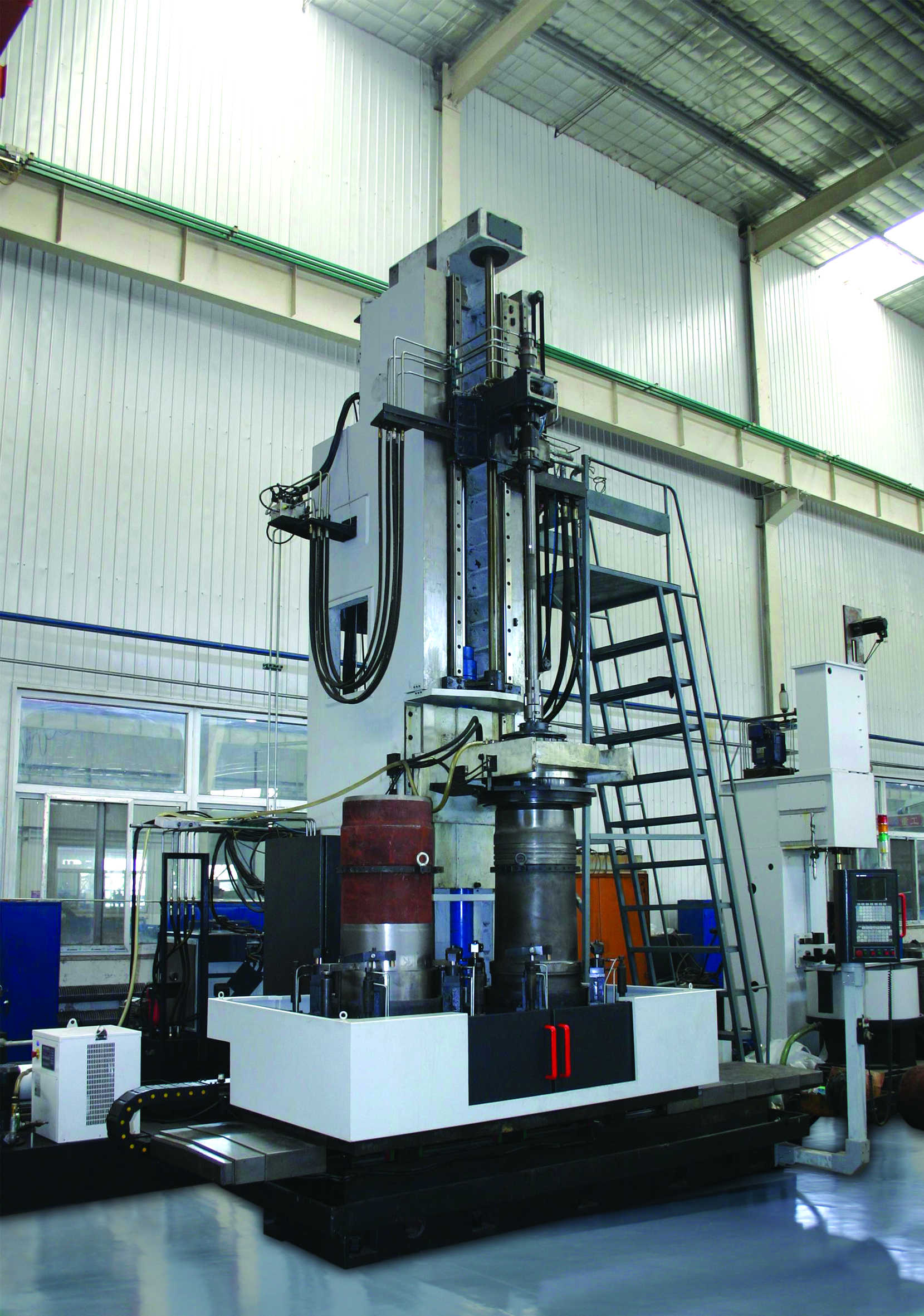

CNC Vertical Honing Machine for Precision Finishing
This CNC vertical honing machine is designed for precision internal diameter finishing of metal parts. It features a robust frame, advanced control system, and multi-axis capabilities for high-volume production.
Technical Specifications
Overview
Precision CNC Vertical Honing
This CNC vertical honing machine is engineered for high-precision finishing of through holes and blind holes in components like engine blocks, cylinder liners, and hydraulic servo cylinders. Featuring a modular design with a C-shaped box structure, it offers advanced digital control over spindle reciprocation, rotation, and honing stone pressure. The system supports complex mesh pattern machining and automatic short-stroke dressing, ensuring consistent quality and superior surface finishes for demanding industrial applications.
Key Features
- Capabilities
- CNC ControlModular DesignAutomatic Short-Stroke DressingMesh Pattern MachiningElectro-Hydraulic Proportional Control
Technical Specifications
Model Specifications
| Feature | 2MK2220x100 | 2MK2240x100 | 2MK2250x150 |
|---|---|---|---|
| Honing Dia. Range | 50-200mm | 80-400mm | 80-500mm |
| Max. Honing Depth | 1000mm | 1000mm | 1500mm |
| Max. Spindle Stroke | 1150mm | 1300mm | 2050mm |
| Spindle Rotary Speed | 30-200r/min | 30-200r/min | 30-200r/min |
| Spindle Motor Power | 11KW | 15KW | 15KW |
Performance Metrics
Spindle Performance
5 m/min
Min Reciprocation Speed
20 m/min
Max Reciprocation Speed
