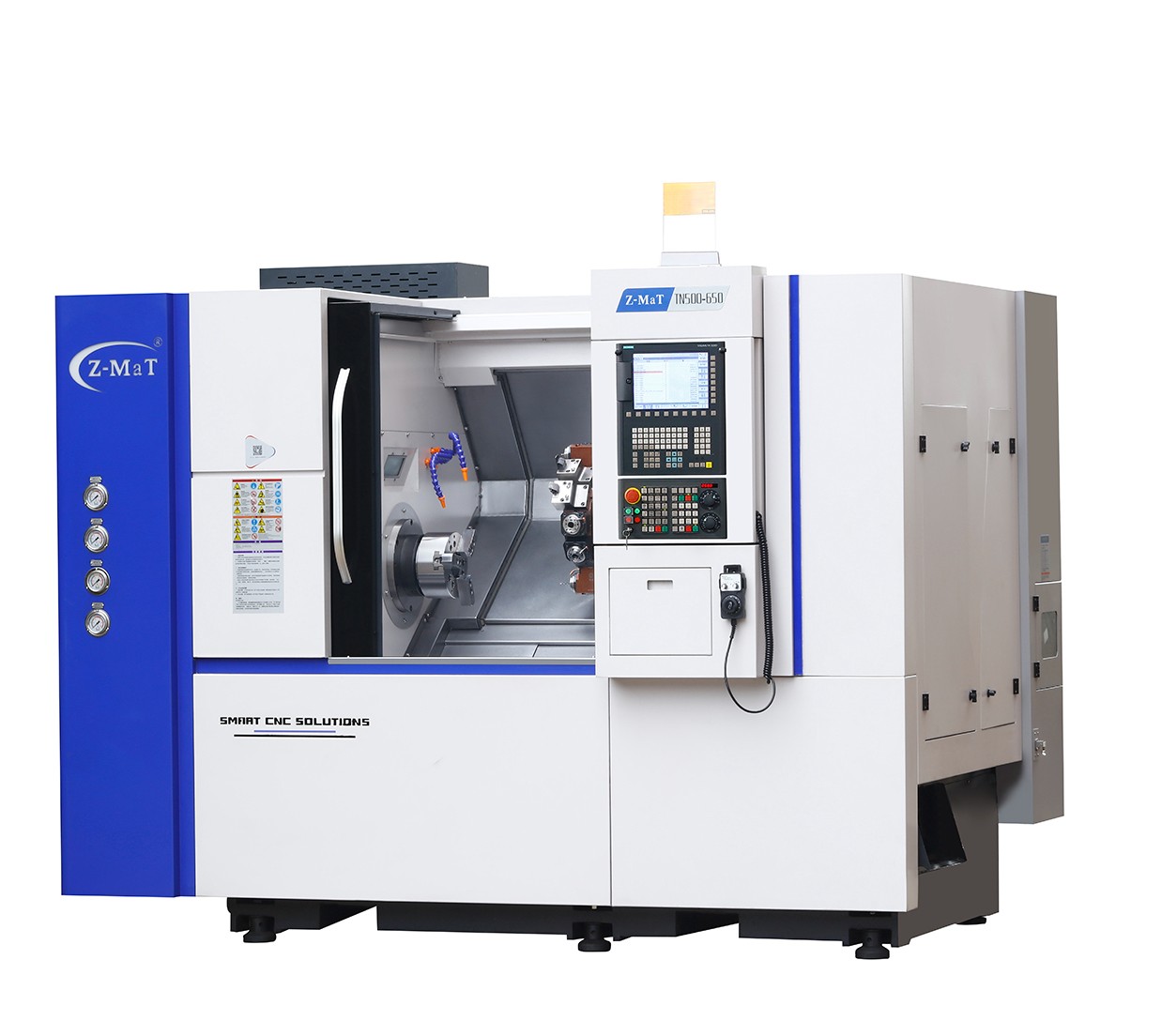

CNC Turning Center
This CNC turning center is designed to flexibly handle various workpieces. Its power turret enables machining of workpieces from simple to complex shaped components with one setup operation.

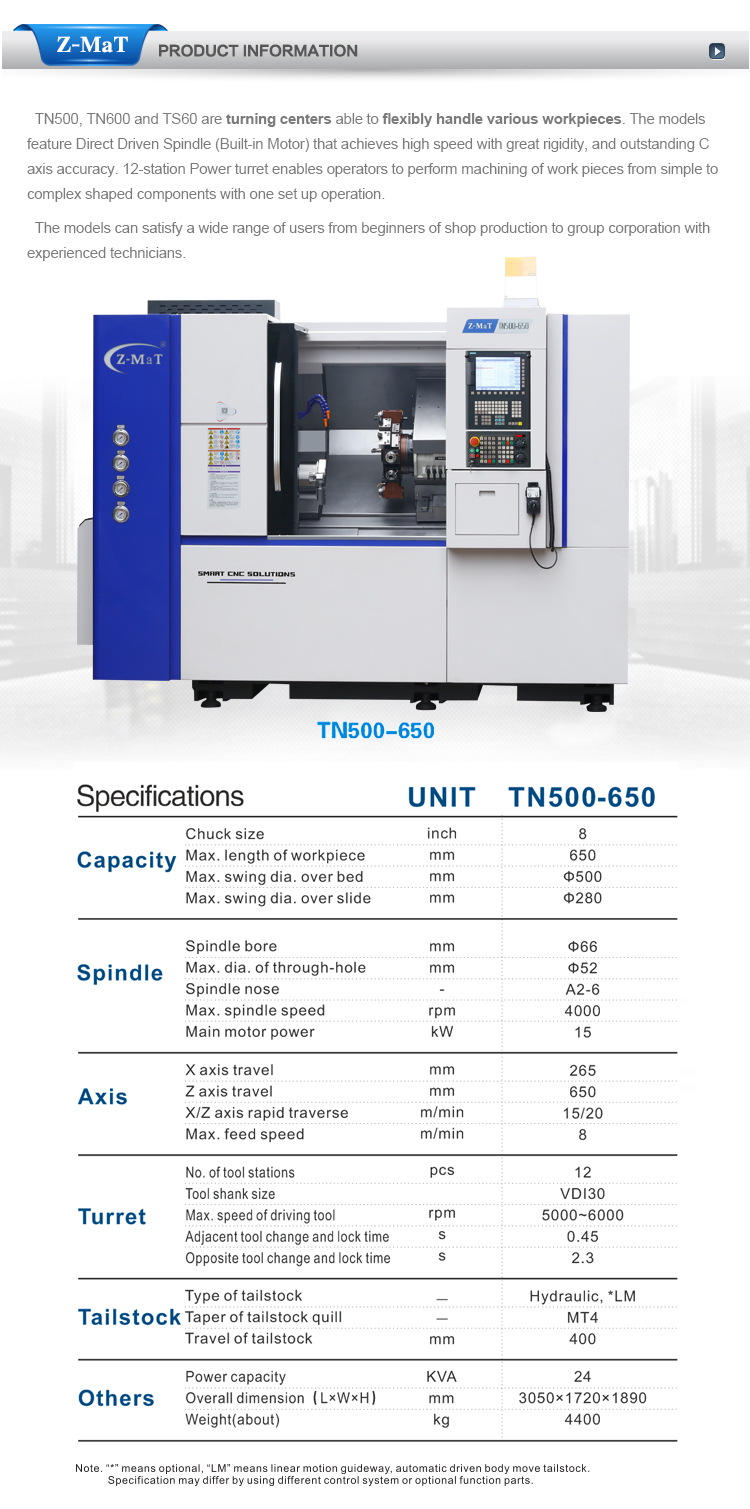

Technical Specifications
Overview
High-Performance Turning Center
The TN Series Turning Centers are engineered for high-precision machining, offering exceptional flexibility for handling various workpieces. Featuring a direct-driven spindle and a robust 12-station power turret, these machines allow for the efficient production of both simple and complex components in a single setup. Designed for reliability and high-speed performance, this machine is suitable for everything from small-scale production to large-scale industrial manufacturing environments.
Key Metrics
Performance Highlights
4,000 rpm
Max Spindle Speed
15 kW
Main Motor Power
12 pcs
Tool Stations
650 mm
Max Workpiece Length
Capacity
Workpiece Capacity
| Parameter | Value |
|---|---|
| Max Swing Dia. over Bed | Φ500 mm |
| Max Swing Dia. over Slide | Φ280 mm |
| Max Workpiece Length | 650 mm |
| Chuck Size | 8 inch |
Technical Details
Spindle Configuration
- Spindle Bore: Φ66 mm
- Through-hole Diameter: Φ52 mm
- Spindle Nose: A2-6
- Max Speed: 4000 rpm
Axis Travel and Speed
- X Axis Travel: 265 mm
- Z Axis Travel: 650 mm
- Rapid Traverse (X/Z): 15/20 m/min
- Max Feed Speed: 8 m/min
Tooling
Turret Specifications
- Station count: 12
- Tool shank size: VDI30
- Driving tool max speed: 5000-6000 rpm
- Adjacent tool change time: 0.45 s
- Opposite tool change time: 2.3 s
Physical Properties
Machine Dimensions
- Overall Dimensions: 3050 × 1720 × 1890 mm
- Total Weight: 4400 kg
Options
- Tailstock Configuration
- HydraulicOptional LMMT4 Quill Taper
