CNC Slant Bed Lathe
This CNC lathe features a 45° slant bed for easy chip removal and a compact design. It utilizes a hydraulic turret for fast and accurate tool changes.
![[copy]High Precision CNC Lathe with Slanting Bed - Image 1](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopyhigh-precision-cnc-lathe-with-slanting-bed%2F1.jpg&w=1536&q=75)

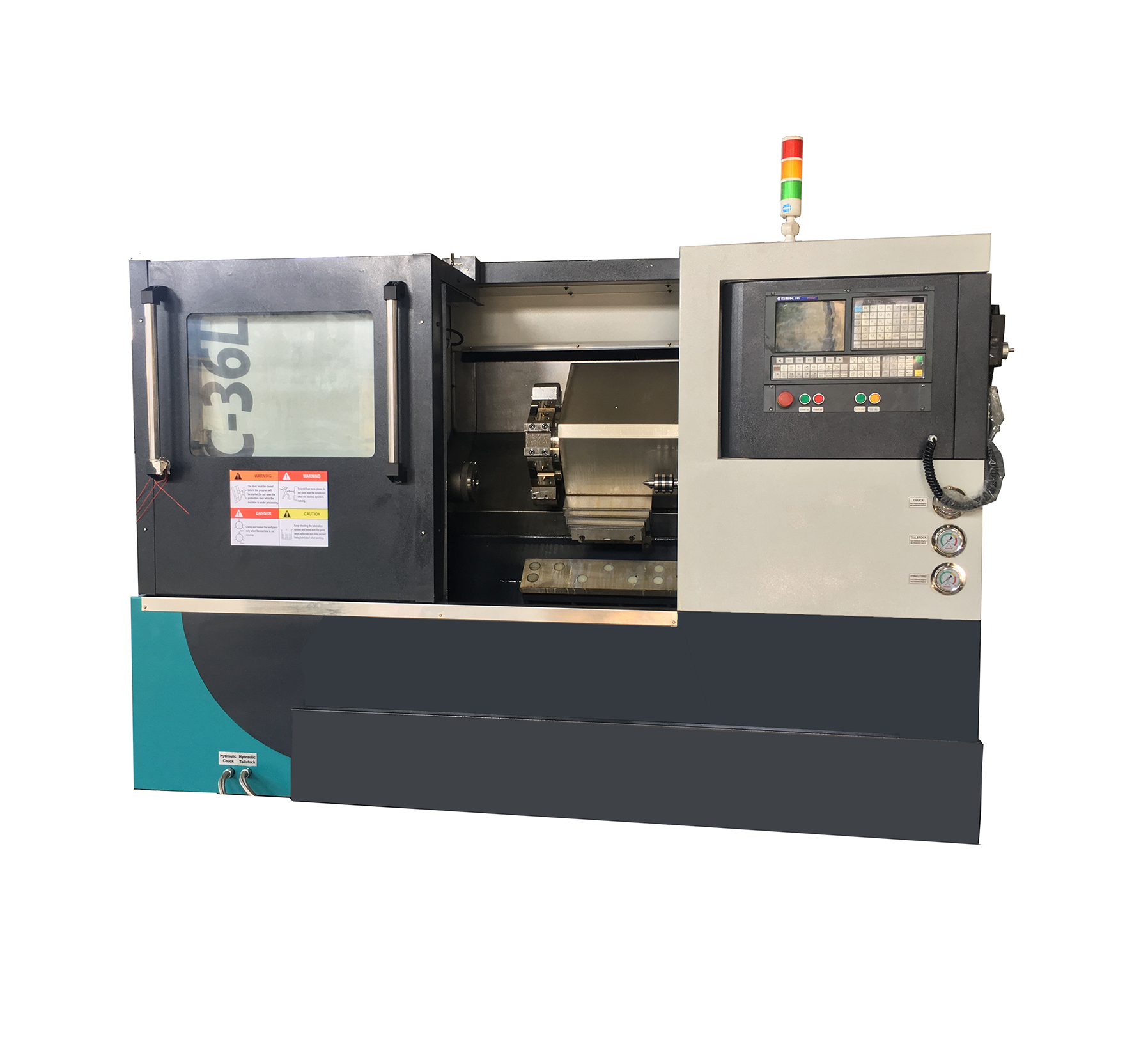

![[copy]High Precision CNC Lathe with Slanting Bed - Image 2](/_next/image?url=https%3A%2F%2Fgiueljlssfehchxmbepc.supabase.co%2Fstorage%2Fv1%2Fobject%2Fpublic%2Fpublic-site%2Fproducts%2Fcopyhigh-precision-cnc-lathe-with-slanting-bed%2F0.jpg&w=1536&q=75)
Technical Specifications
Overview
High-Precision CNC Slant Bed Lathe
This CNC Slant Bed Lathe features a high-rigidity 45-degree inclined bed structure, ensuring smooth chip discharge and a compact, stable footprint. Designed for high-precision machining, it effectively handles inner and outer diameters, end faces, tapers, arcs, and threading tasks with high efficiency. The machine is fully enclosed for operator safety and is compatible with major industry-standard control systems like GSK, KND, SIEMENS, and FANUC.
Performance Metrics
Spindle Speed Range
150 rpm
Min Speed
4,000 rpm
Max Speed
- Max Swing Over Bed
- 360 mm
- Max Turning Diameter
- 210 mm
- Max Turning Length
- 500 / 750
Spindle & Axis
- Spindle Bore
- 56 mm
- Spindle Nose Type
- A2-5 or A2-6
- Rapid Travel Speed (X/Y)
- 20000 mm/min
Tailstock
- Tailstock Quill Diameter
- 60 mm
- Tailstock Travel
- 80 mm
- Tailstock Taper
- MT4
Technical Specs
- Main Motor Power
- 5KW or 5.5KW
- Coolant Pump Power
- 370 W
- Net Weight
- 2700 kg
Compatibility
- Compatible Control Systems
- GSKKNDSIEMENSFANUC
Features
Key Features
45° Slant BedLinear Guide RailHydraulic ChuckHydraulic TailstockFully Enclosed
