Technical Specifications
Overview

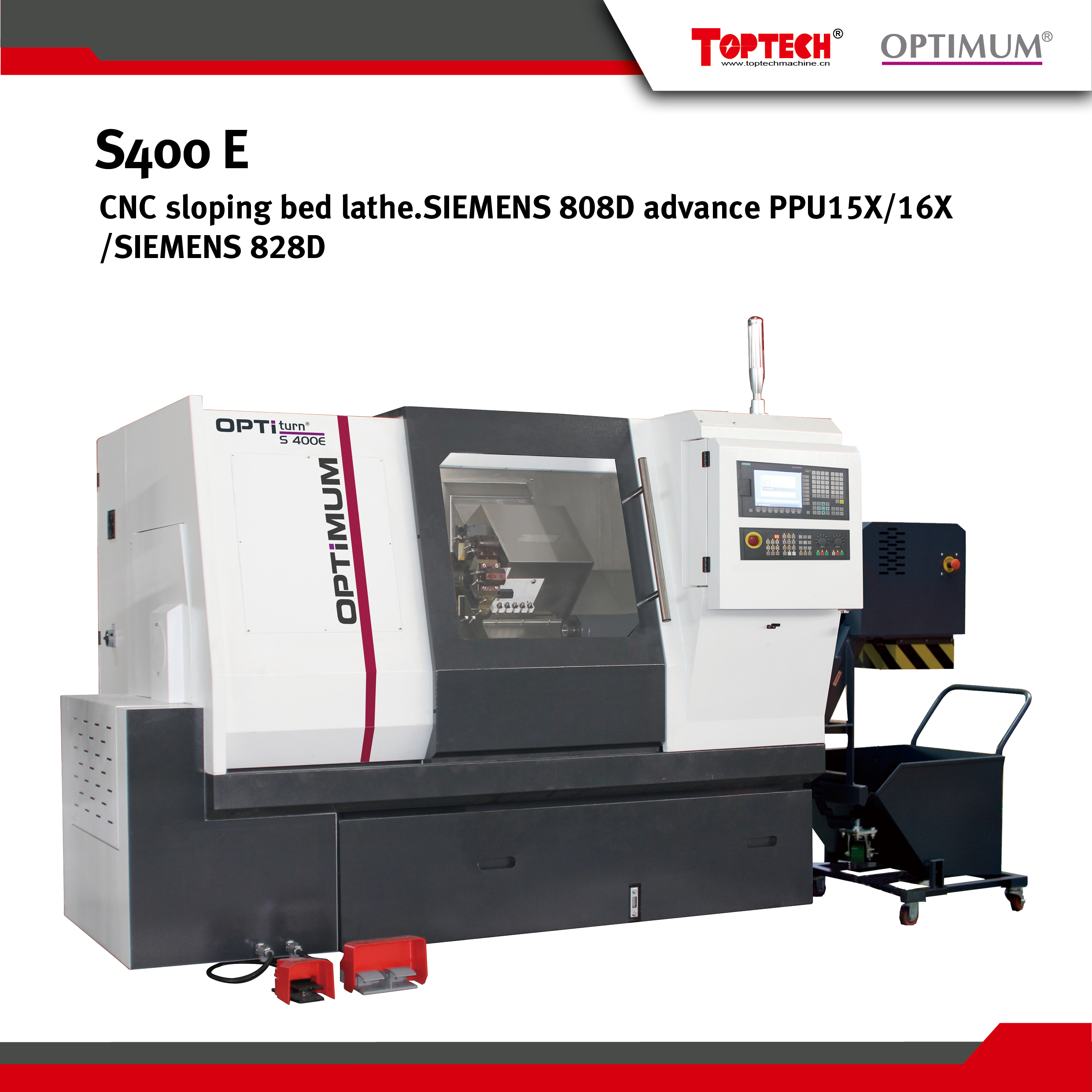

High-Precision CNC Slant Bed Lathe
This CNC slant bed lathe is engineered for high-accuracy metal cutting, featuring a robust resin sand casting bed for maximum stability. Equipped with a high-precision spindle and imported linear guides, it supports complex turning and milling operations through a power-turret combination. Designed for efficiency, it includes an automatic lubrication system and chip conveyor, making it ideal for professional industrial manufacturing.
Key Performance Metrics
Performance Highlights
4,500 rpm
Spindle Speed
450 mm
Max Turning Length
12 kW
Total Power
45 °
Slant Bed Angle
Capacity & Dimensions
- Swing Over Bed
- 450 mm
- Max Turning Diameter
- 400 mm
- Axis Travel (X/Z)
- 230 mm / 530 mm

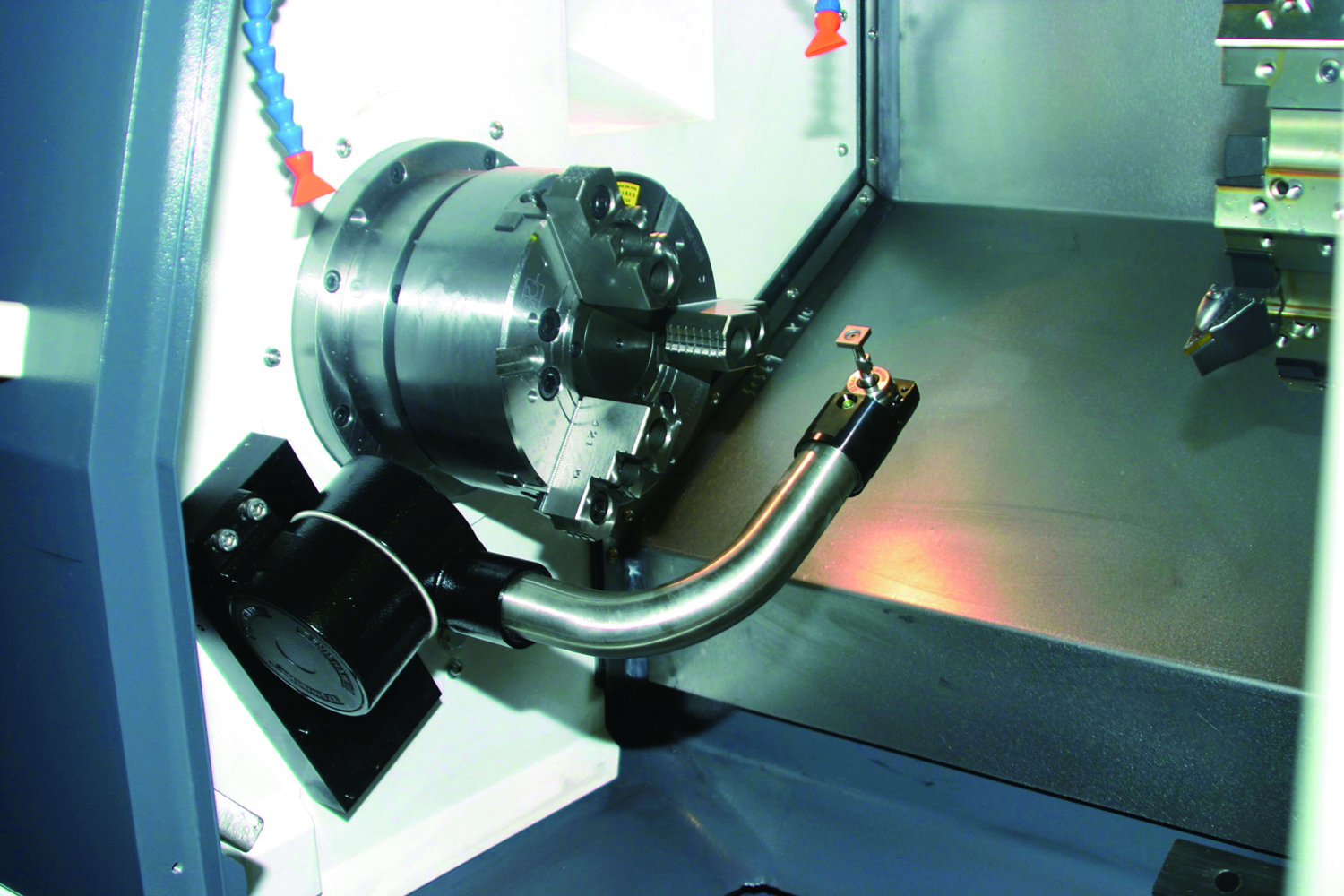

Spindle & Accuracy
Spindle Specifications
| Feature | Specification |
|---|---|
| Spindle Hole Diameter | 61 mm (Optional 79 mm) |
| Spindle Nose | A2-6 |
| Spindle Taper | 1:20 |
| Positioning Accuracy | ±0.01 mm |
| Repeatability Accuracy | ±0.008 mm |
Tooling & Tailstock
Tailstock Specifications
- Travel: 100 mm
- Diameter: 72 mm
- Taper: MT4
- Turret Type
- Hydraulic
- Number of Tools
- 8
Electrical & Cooling
Cooling System
- Pump Motor: 650 W
- Tank Capacity: 200 L
- Electrical Connection
- 400V 50Hz 3ph
Standard Features
- Standard Equipment
- Linear GuideBall ScrewAutomatic LubricationChip ConveyorPower-TurretEU Safety Standards
Physical Properties
- Net Weight
- 3500 kg
