CNC Sheet Metal Bending Machine
This CNC sheet metal bending machine is designed for the accurate and efficient bending of sheet metal. It features a robust frame, advanced CNC control system, and hydraulic drive for precise bending operations.
Technical Specifications
Overview
Precision Sheet Metal Bending

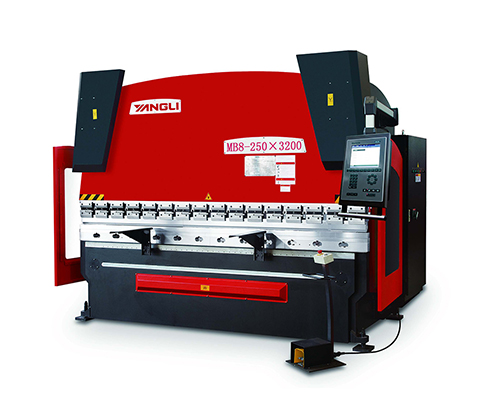

The MB series CNC bending machine is a high-precision metal forming tool engineered for efficient and repeatable sheet metal processing. Featuring a robust, tempered steel welded frame and advanced electro-hydraulic servo valve control, this machine ensures consistent bending accuracy. With integrated multi-axis back gauge capabilities and an intuitive CNC interface, it is designed to handle complex geometries for industries ranging from automotive to aerospace.
Control System
- CNC System
- DELEM (Holland) DA56/DA66T/DA52
- Interface Features
- Graphic DisplayChinese Manual
Hydraulic System
Sealing Components
Imported Seal Rings
- Drive Mechanism
- Dual cylinders synchronous controlled by electro-hydraulic servo valve
Construction
- Frame Design
- Steel welded frame with tempering treatment
- Compensation
- Hydraulic automatic compensation system
Operational Features
- Back Gauge System
- Multi-axis control
- Tooling
- Upper die quick clamp device
Key Specifications
Capacity Metrics
250 Tons
Bending Force
3,200 mm
Bending Length
