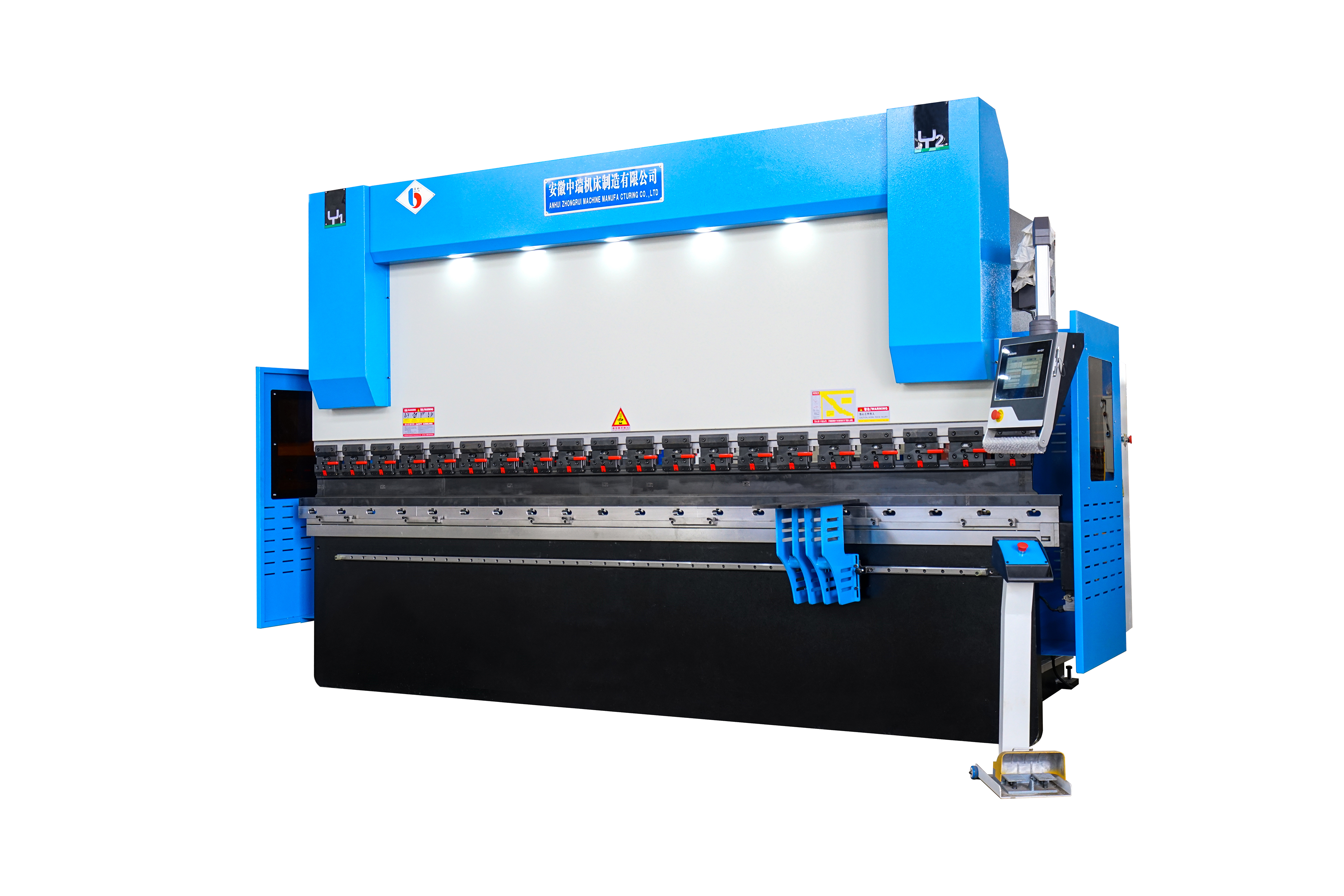

CNC Servo Hydraulic Press Brake with DA53T
This hydraulic CNC servo press brake is equipped with a DA53T control system for high precision in metal forming. Its robust frame ensures stability for bending, folding, straightening, and leveling processes.
Technical Specifications
Overview
High-Precision CNC Servo Hydraulic Press Brake
This advanced CNC servo hydraulic press brake is engineered for high-precision metal forming, including bending, folding, straightening, and leveling. Featuring the DA53T control system, it offers automated, reliable operation with exceptional repeat positioning accuracy. The machine utilizes an integrated welded structure analyzed via finite element analysis, ensuring long-term stability and structural integrity for demanding industrial applications.
Technical Specifications
Precision Features
- Closed-loop electro-hydraulic servo valve control
- Imported grating ruler for stroke feedback
- Hydraulic automatic deflection compensation mechanism
- C-shaped plate design to minimize body distortion influence
Key Machine Metrics
30 TON/M
Bending Capacity
50 mm
Tooling Length
- Control System
- DA53T CNC Control System
- Backgauge Mechanism
- Digital AC Servo MotorBall Screw DriveLinear Guide Rail
Safety & Compliance
Safety Equipment
- Integrated safe fence
- Electric interlocker system
