CNC Router 1325 for Wood and Advertising
This CNC router is designed for woodworking and advertising applications. The 1325 model features a large working area and a user-friendly interface.
Technical Specifications
Overview

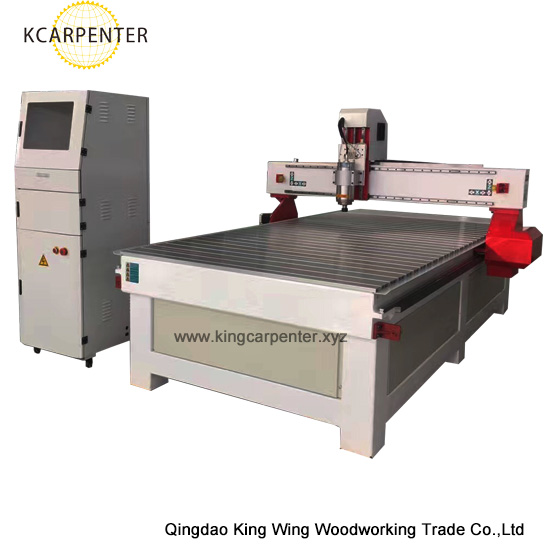

Professional CNC Router 1325
The KC1325 series CNC router is engineered for high-precision woodworking and advertising production. Built on a robust big steel tube structure, it ensures stability during complex cutting and engraving operations. Featuring a spacious 1300x2500mm working area, this machine is an ideal solution for industrial-grade fabrication of furniture components, signage, and decorative materials.
Performance Metrics
Key Performance Indicators
24,000 RPM
Spindle Speed
4,200 mm/min
Max Motion Speed
3 KW
Spindle Power
Technical Specifications
Motion System Components
- XY Axis: Taiwan Hiwin linear rails
- XY Axis: Helical rack and pinion
- Z Axis: Taiwan Hiwin linear rails
- Z Axis: Taiwan TBI ball screw
Accuracy
- Motion positioning: ± 0.02/300mm
- Repositioning: ± 0.0254mm
- Working Dimensions
- 1300 x 2500 x 200 mm
- Control System
- NcStudio
Physical Properties
Machine Weight
1,500 KGS
Net Weight
1,600 KGS
Gross Weight
Compatibility
- Software Supported
- Type3JDPaintArtCAM
- Supported File Formats
- G code, uoo, mmg, plt
