CNC Polygon Machining Center
This CNC polygon turning machine allows for the simultaneous execution of operations such as chamfering, deburring, and boring. It is also capable of spot facing.
Technical Specifications
Overview
High-Efficiency CNC Polygon Machining

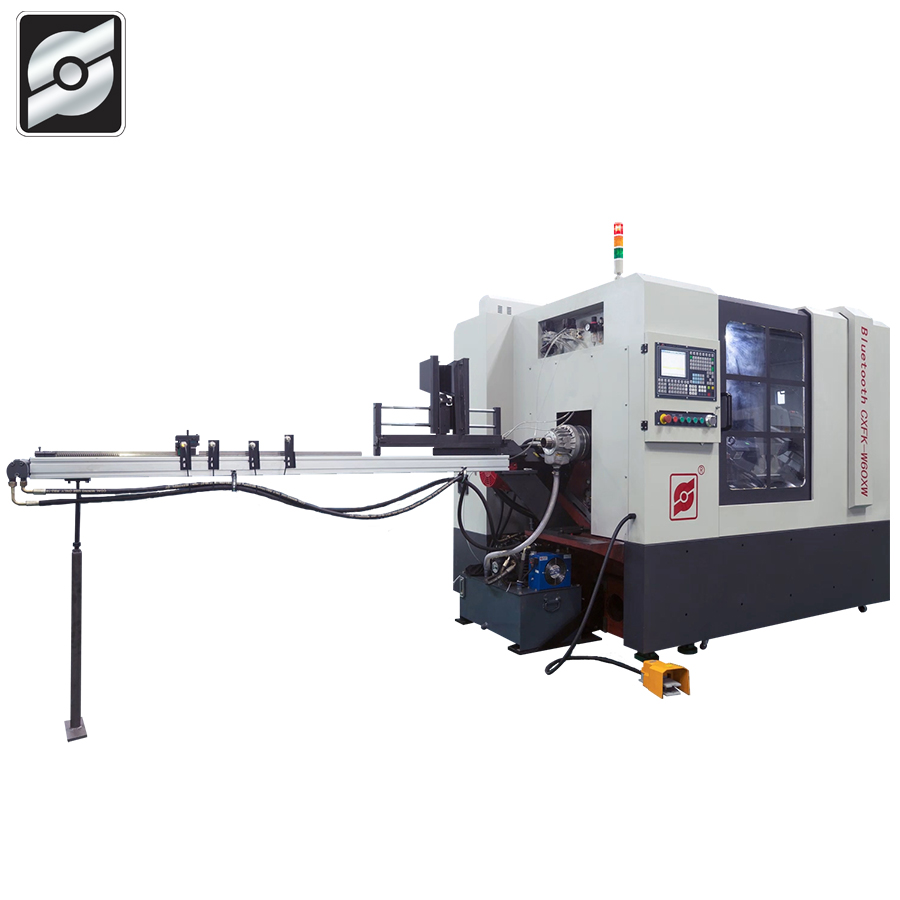

The CXF-W60XW is a specialized CNC polygon machining center designed for high-speed mass production of small parts with 2, 4, or 6 sides. By integrating turning and polygon cutting into a single machine, it achieves exceptional concentricity and symmetry while significantly reducing production time. This versatile system supports simultaneous operations like chamfering, deburring, and boring, making it an ideal solution for complex component manufacturing.
Key Capabilities
- Supported Operations
- Polygon CuttingTurningChamferingDeburringBoringSpot FacingContouring
Technical Features
Axis Control System
- CNC controller with servo motors
- Z-Axis (Longitudinal slide) control
- X-Axis (Cross slide) control
- Dual rotational, single stroke operation
Cutter Configuration
2 qty
Simultaneous Cutter Heads
Optional Modules
Power Milling Turret
Applications
Common Workpieces
- Square tangs on top surfaces
- Hex, square, and flats on special bolts
- Drive tangs on drills and sockets
- Polygons on yoke nuts
- Flats on shafts, brake cams, and shifters
- Collared nuts
Performance Benefits
Manufacturing Advantages
| Feature | Benefit |
|---|---|
| Dual Rotational Operation | Multiplies production rate and saves time |
| All-in-one Functionality | High concentricity and symmetricity |
| Rigid Construction | High performance in mass production |
| Cut Division | Compensation of cutting forces and reduced cycle time |
