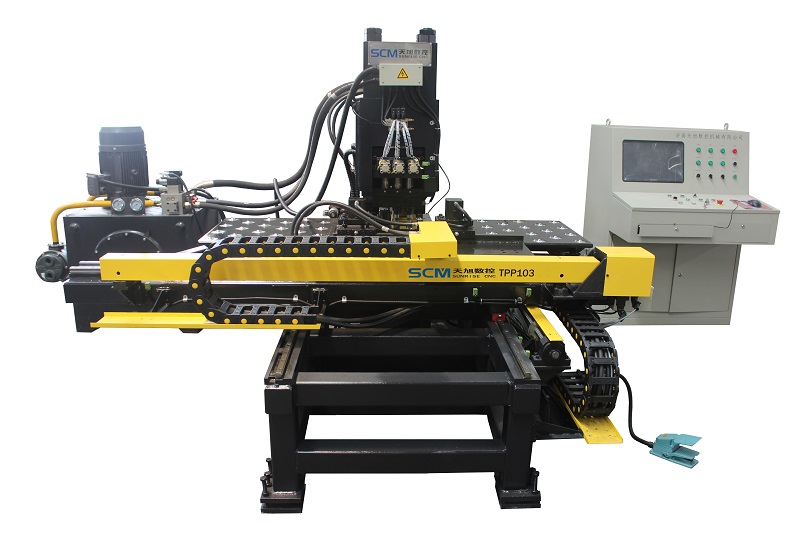

CNC Plate Punching Machine
The CNC plate punching machine is a high-precision tool for efficient hole punching in metal plates. It features a CNC control system for automated operation and a multi-tool head for versatile punching capabilities.
Technical Specifications
Product Overview
High-Efficiency CNC Plate Punching
This CNC plate punching and marking machine is engineered specifically for the steel tower industry and general metal fabrication. It features a rigid C-type welded frame, an automated triple-station die system, and precision servo-controlled axis movement. Designed for productivity, it supports CAD-integrated programming and utilizes high-performance hydraulic systems to deliver consistent, repeatable results.
Key Features
- Capabilities
- Automatic Die SwitchingCNC Servo ControlCAD/NC1 IntegrationSelf-DiagnosisShielded Interference Resistance
Technical Specifications
Performance Metrics
1,000 KN
Punching Force
800 KN
Marking Force
26 mm
Max Punch Diameter
25 mm
Max Plate Thickness
Dimensions & Capacity
| Parameter | Value |
|---|---|
| Max Workpiece Size (mm) | 1500 x 800 |
| Net Weight (kg) | ~5420 |
| Overall Dimensions (mm) | 3200 x 3000 x 1900 |
Tooling and Control
Die and Character Specs
- Number of Die-stations: 3
- Character Dimensions: 14 x 10 x 19 mm
- Quantity of Characters: 12
- Programming: Auto CAD or lofting software
