CNC Pipe Threading Lathe
This CNC pipe threading lathe precisely processes various threads, cutting both Metric and British cylindrical and conical pipe threads. It is suitable for machining tubing, casing, and drill pipe in industries like petroleum, metallurgy, and chemical processing.
Technical Specifications
Overview
Professional CNC Pipe Threading Performance

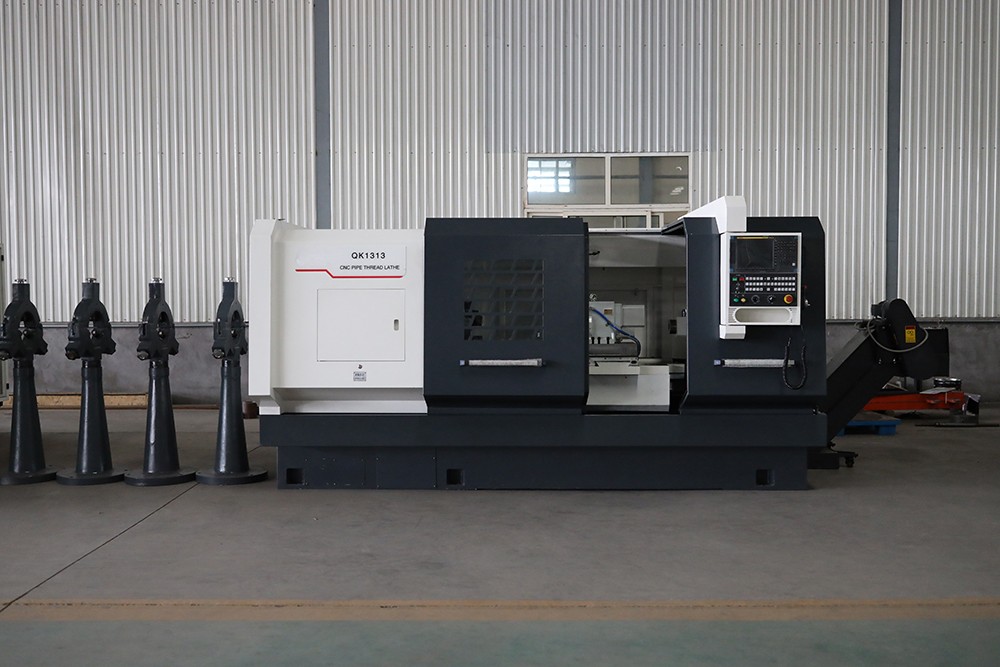

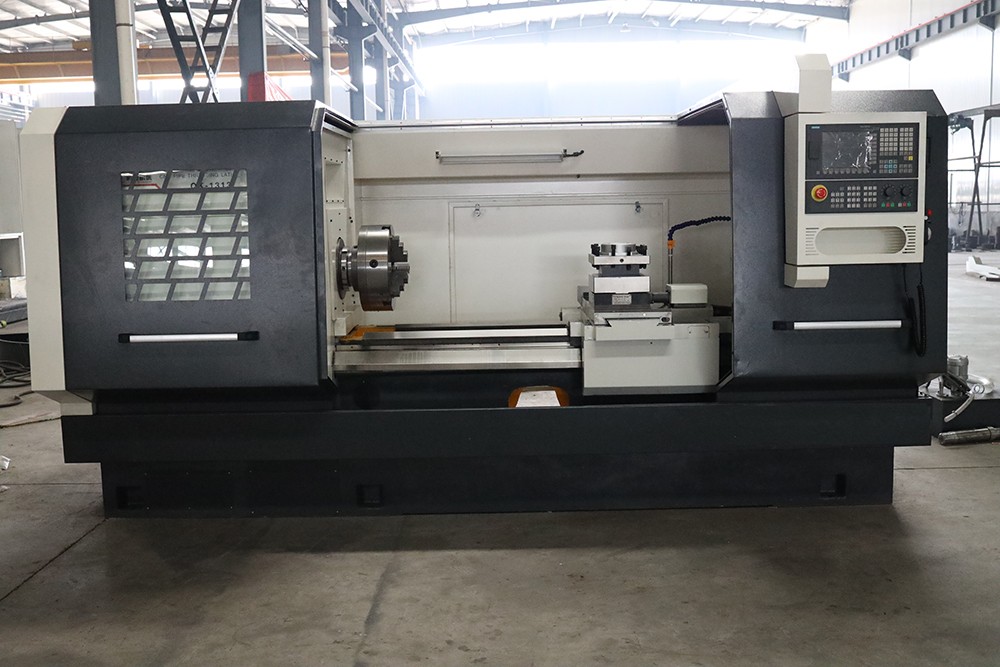

The QK1313 CNC pipe thread lathe is a high-precision machine tool engineered for efficient processing of metric and British cylindrical and conical pipe threads. Built with a rigid horizontal bed and integrated mechanical, electrical, and hydraulic systems, it delivers stable, high-speed performance for demanding industries like petroleum, metallurgy, and water treatment. The lathe features automated lubrication, advanced CNC control, and a robust spindle design capable of handling ultra-long rotating components with exceptional precision.
Key Technical Metrics
Key Performance Metrics
Machining Accuracy
- Positioning accuracy: 0.020mm
- Repositioning accuracy: 0.01mm
- Tool rest indexing precision: ±0.003mm
Machine Configuration
Spindle Details
| Feature | Value |
|---|---|
| Spindle Bore | 135mm |
| Speed Mode | Two gears, smooth adjustment |
| Speed Range (Low) | 0-130 r/min |
| Speed Range (High) | 130-800 r/min |
- Supported CNC Systems
- GSK980TC3FANUC 0i Mate TdFANUC 0i TdSIMENS 808DKND K1000TiGSK980TDC

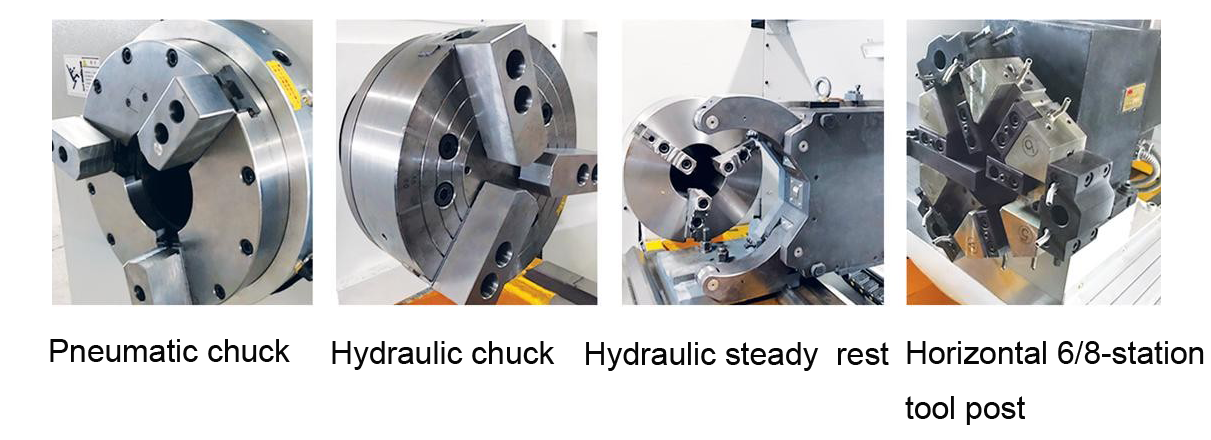

Optional Equipment
Available Upgrades
- Pneumatic chuck
- Hydraulic chuck
- Hydraulic steady rest
- Horizontal 6/8-station tool post
Physical Specifications
Size and Weight
- Overall dimensions: 3700 x 1755 x 1800 mm
- Machine weight: 4 T
