CNC Pipe Threading Lathe
This CNC pipe threading lathe is designed for precise pipe thread processing, capable of cutting Metric and Inch cylindrical and taper pipe threads. It is also suitable for high-efficiency processing of oil casing and drill pipe joints.
Technical Specifications
Overview
Industrial CNC Pipe Threading Lathe

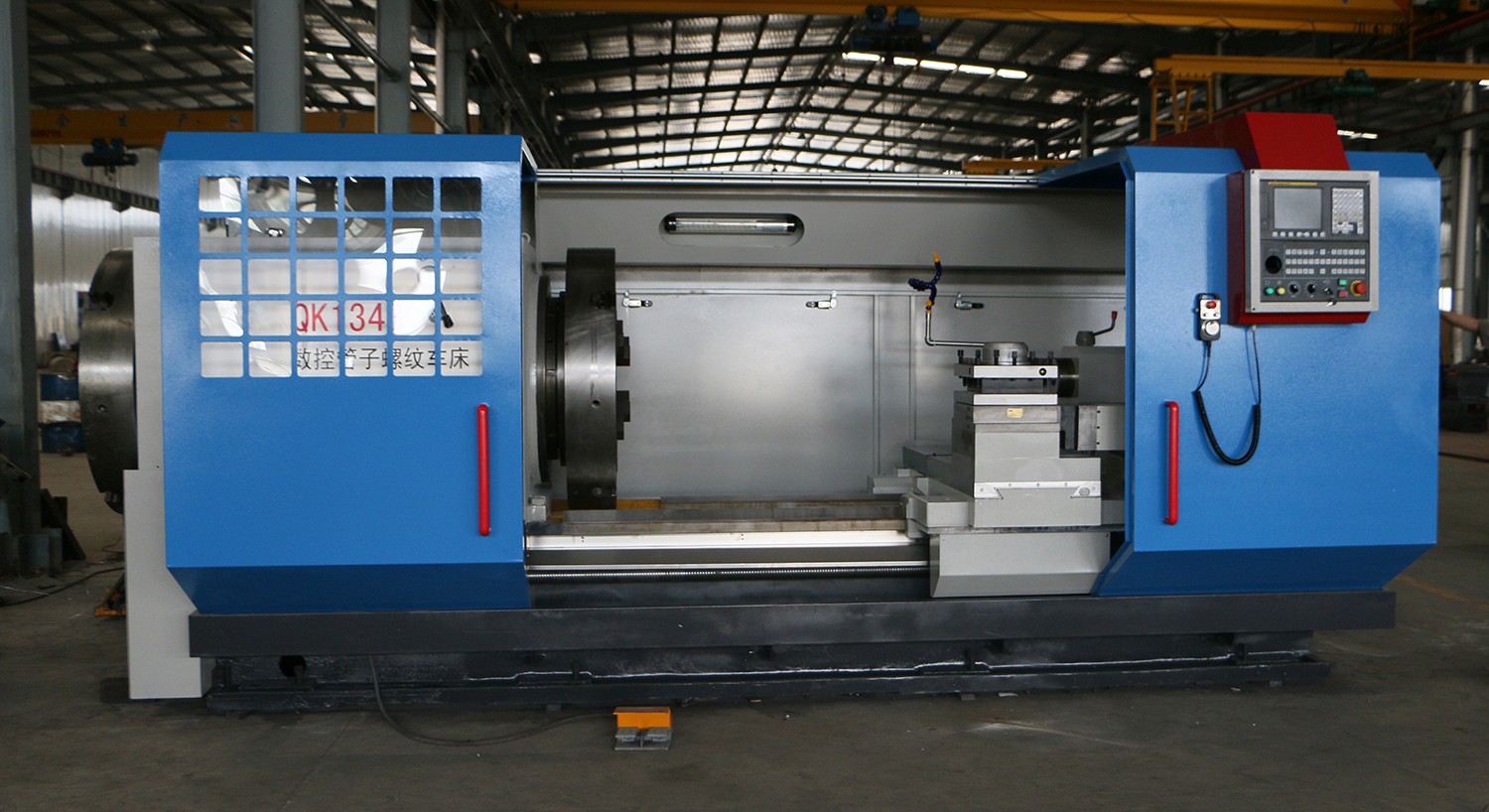

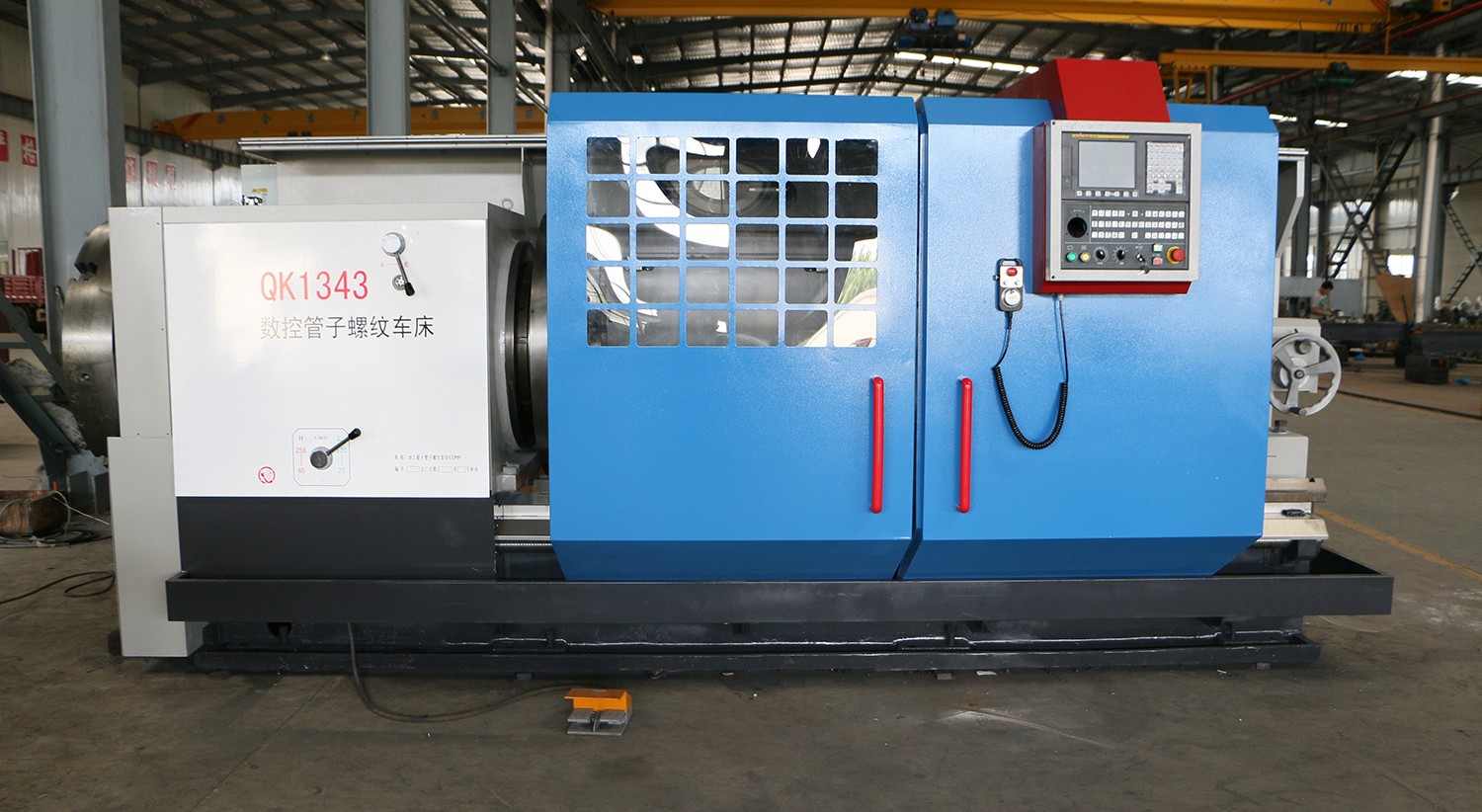

The QK1343 is a high-performance CNC pipe threading lathe engineered for the precise machining of pipes, casings, and drill pipe joints. Designed for industries such as petroleum, metallurgy, and chemical processing, it excels at turning inner/outer surfaces, cones, and complex thread profiles. With a robust resin sand cast bed and advanced integration of mechanical, electrical, and hydraulic systems, this machine ensures high rigidity and consistent quality for heavy-duty industrial applications.
Technical Specifications
Working Capacity
| Parameter | Value |
|---|---|
| Max Swing Over Bed | 1000 mm |
| Max Swing Over Cross Slide | 610 mm |
| Max Workpiece Length | 1500 mm |
| Bed Width | 755 mm |
| Spindle Bore | 440 mm |
Spindle Performance
22 Kw
Motor Power
23 r/min
Low Speed Range
258 r/min
High Speed Range
- Supported CNC Controllers
- GSK980TDIFANUC 0i Mate TdFANUC 0i TdSIEMENS 808DKND K1000Ti
Mechanical Features
Axis Dynamics (X/Z)
| Axis | Torque (N.m) | Power (Kw) |
|---|---|---|
| X-Axis | 18 | 2.8 |
| Z-Axis | 22 | 3.5 |
Tooling and Chuck
- Vertical four-station electric tool post (300x300mm)
- Turret indexing time: 5.6 seconds
- K66-1000 four-jaw electric chuck
- Positioning accuracy: 0.020mm
- Repositioning accuracy: 0.01mm
Physical Attributes
Dimensions & Weight
5,000 mm
Length
2,200 mm
Width
2,100 mm
Height
14 T
Weight
