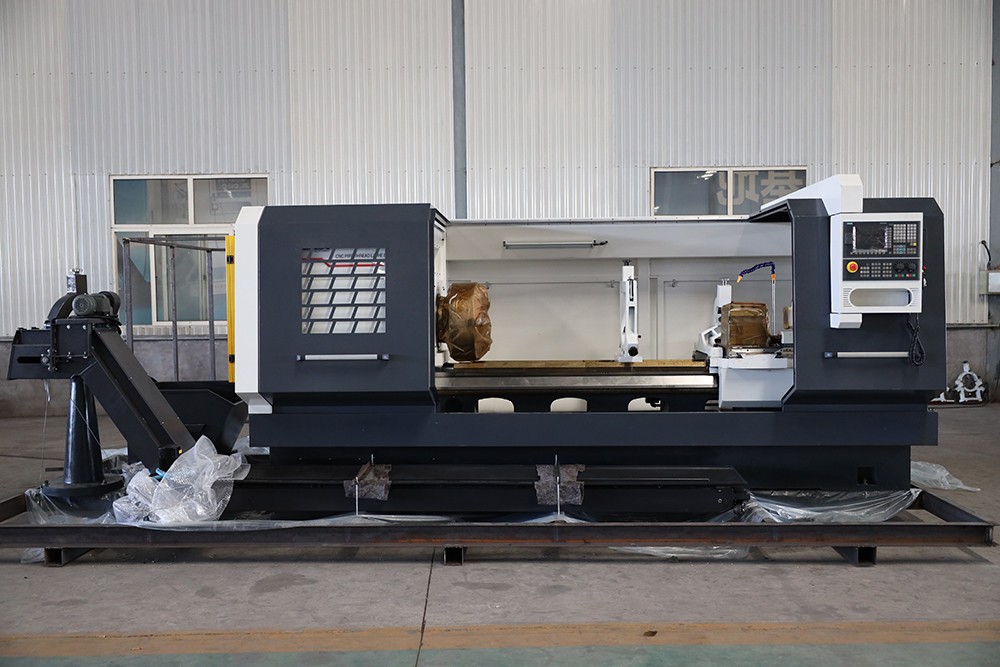

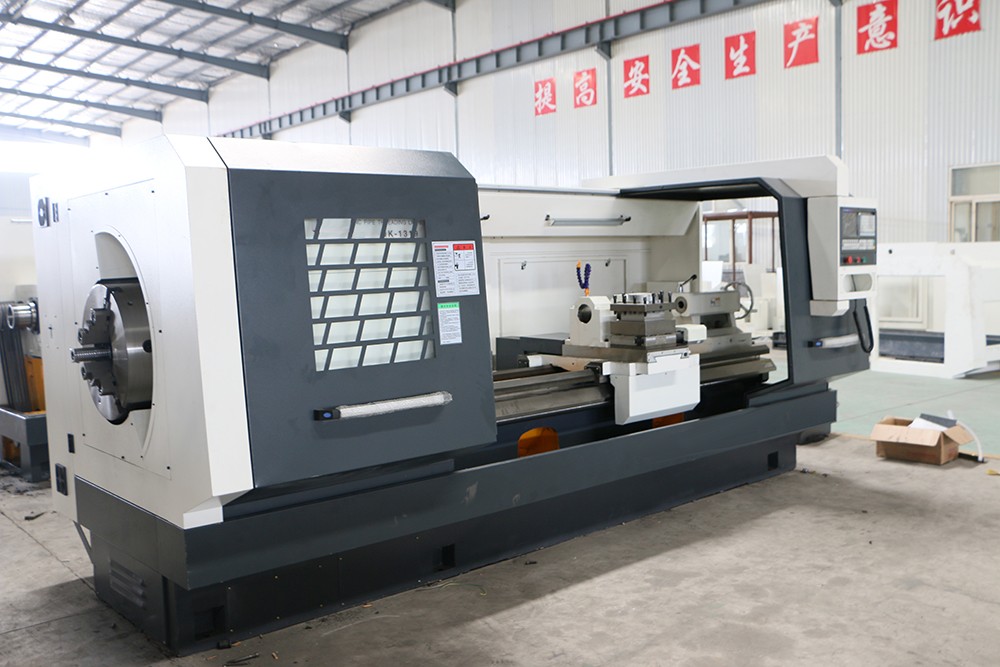

CNC Pipe Threading Lathe
This CNC pipe threading lathe is designed for the pipe thread processing industry and adopts the international VDI/DGQ3441 standard. It precisely processes all kinds of threads and incorporates a semi-closed protection device, precision ball screw feeding, and automatic lubrication.
Technical Specifications
Overview
Precision CNC Pipe Threading Lathe
This CNC pipe thread lathe is designed specifically for the rigorous demands of the petroleum, chemical, and metallurgical industries. It offers high rigidity and precision, capable of achieving IT7 machining accuracy and Ra1.6 surface roughness. The machine utilizes a front and rear double chuck system with an automated lubrication process, ensuring reliable and repeatable performance for processing oil pipelines, drill pipes, and casings.
Technical Specifications
Dimensions & Capacity
630 mm
Max Swing Over Bed
1,500 mm
Max Workpiece Length
200 mm
Spindle Bore
4.6 T
Machine Weight
Performance Parameters
| Parameter | Value |
|---|---|
| Spindle Motor Power | 11 Kw |
| Positioning Accuracy | 0.020 mm |
| Repositioning Accuracy | 0.01 mm |
| Rapid Traverse (X/Z) | 4000 mm/min |
Features
Compatible CNC Systems
- FANUC 0i Mate Td
- FANUC 0i Td
- SIEMENS 808D
- KND K1000Ti
- GSK980 TDC

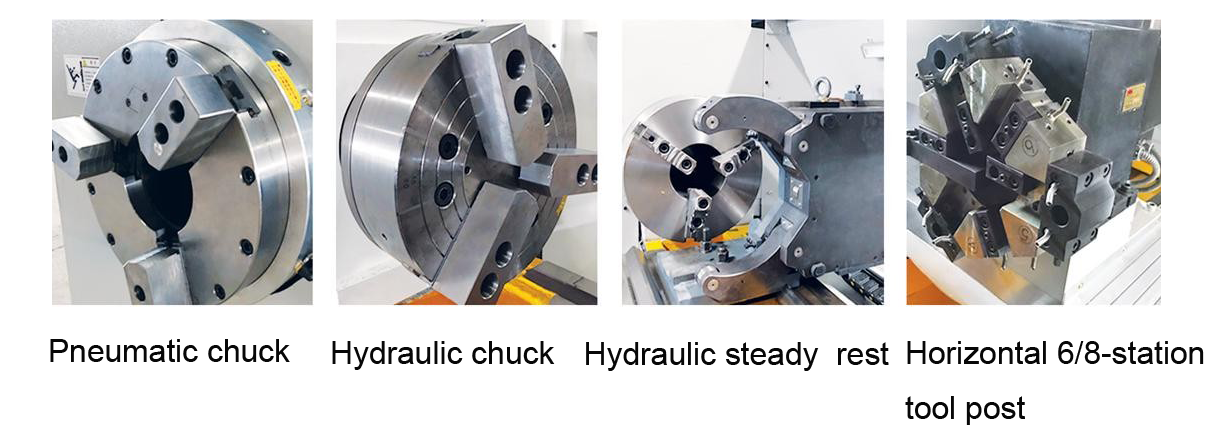

- Optional Configurations
- Pneumatic ChuckHydraulic ChuckHydraulic Steady RestHorizontal 6/8-station Tool Post
