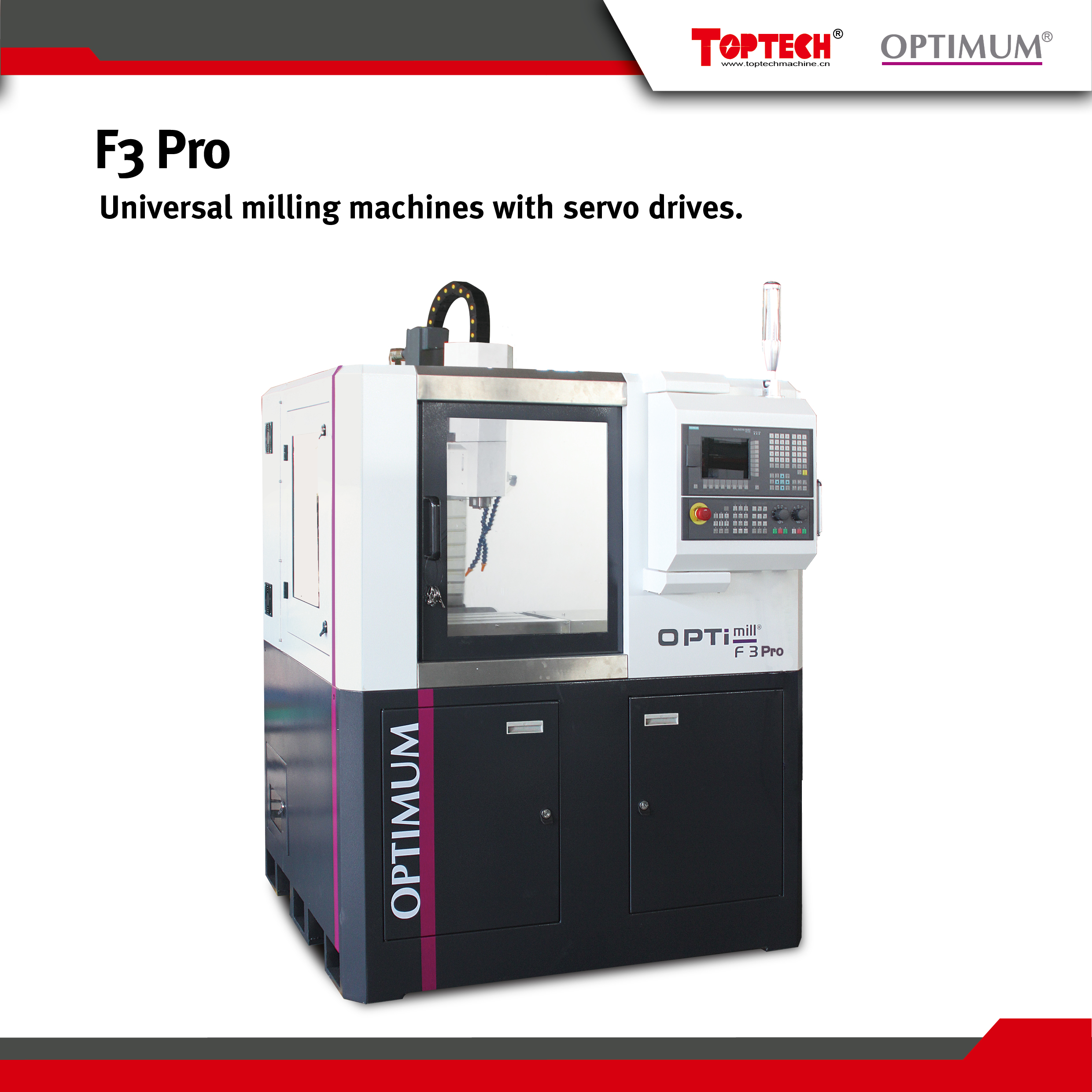

CNC Milling Machine
This CNC milling machine features imported moving parts for good stability and precision. It is applicable for small-batch machining and education.
Technical Specifications
Overview
Precision CNC Milling for Professional Applications
This CNC milling machine is engineered for high-precision metal cutting, combining German-inspired technology with high-rigidity components. Featuring 3-axis linear guides and a robust bus system, it offers exceptional stability and low friction for long-term service. It is an ideal solution for small-batch machining, educational purposes, and versatile milling tasks requiring high-speed performance.
Performance Highlights
Key Performance Metrics
4,000 rpm
Max Spindle Speed
6,000 mm/min
Rapid Feed Rate
3.5 kW
Total Power
Technical Specifications
Electrical & Motor Data
| Parameter | Value |
|---|---|
| Electrical Connection | 400V / 50Hz / 3PH |
| Main Motor Power | 1.5 kW |
| Coolant Pump Power | 95 W |
| Torque Motor (X,Y,Z) | 1.9 / 3.5 / 3.5 Nm |
Machining Capabilities
Axis Travel & Table
| Description | Dimension |
|---|---|
| X-Axis Travel | 355 mm |
| Y-Axis Travel | 155 mm |
| Z-Axis Travel | 230 mm |
| Table Size | 620 x 180 mm |
| Max Table Load | 30 kg |
| Spindle Taper | BT30 |
Precision & Accuracy
- Positioning Accuracy
- 0.015 mm
- Repeat Positioning Accuracy
- 0.01 mm
Physical Characteristics
- Overall Dimensions
- 1450 x 1380 x 2000 mm
- Net Weight
- 650 kg
- Coolant Tank Capacity
- 45 L
Features & Standards
Core Features
- 3-axis linear guides for high precision
- Full-automatic lubrication system
- High rigidity lead screw and guide rails
- Compact design for small-batch and education
- Integrated bus system for electrical stability
Compliance & Safety
CE CertifiedEU Safety Standards
