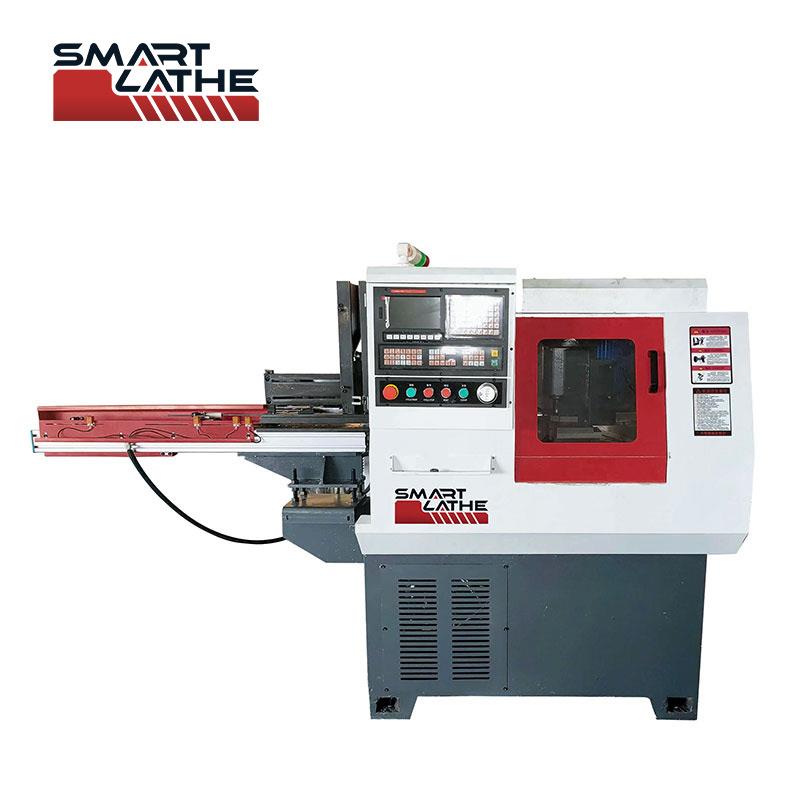

CNC Lathe Machine for Screwdriver Bit Machining
This CNC lathe is designed for efficient machining of screwdriver bits, integrating turning, milling, and drilling into a single machine. It is specialized for producing various types of screwdriver bits and reduces labor costs with high production capacity.
Technical Specifications
Product Overview
Precision Screwdriver Bit Machining
The SBL-20 CNC lathe is a specialized solution designed for the high-efficiency production of various screwdriver bits, including Phillips, slotted, Torx, and hex types. By integrating turning, milling, and drilling into one multi-task process, it delivers significant labor savings as one operator can manage multiple units simultaneously. This robust system features dynamic balance-tested spindle assemblies and automated feeding, ensuring high-speed precision and consistent quality for complex industrial components.
Performance
Production Capacity
Process Cycle Times
| Task Type | Duration |
|---|---|
| Simple Slotting | 5-6 seconds |
| Standard Processing | 5-8 seconds |
| Complex Shapes | 10-12 seconds |
Technical Specifications
- Control System
- GSK 980TC3
- Compatible Bit Types
- PhillipsSlottedSquare RecessPozi LockTorxHex TamperTri-WingSpannerTorq-setSpline
Machine Physicals
Machine Dimensions
- Length: 2400 mm
- Height: 1620 mm
Key Hardware Features
