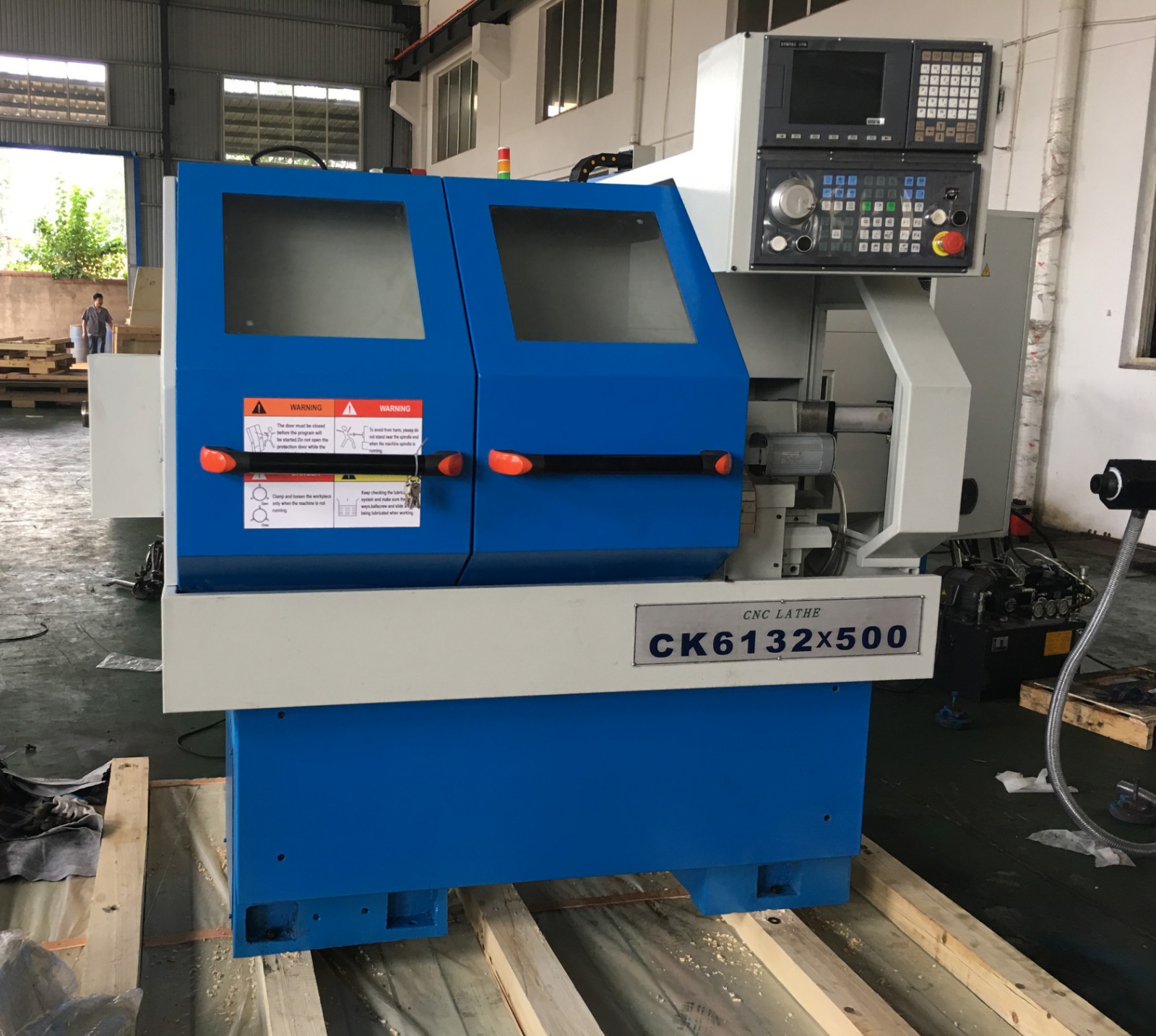

CNC Lathe Machine CK6132
The CNC Lathe Machine CK6132 is a compact turning machine designed for precision machining. It features a rigid bed structure and a user-friendly CNC control system.
Technical Specifications
Overview
Precision CNC Turning Solution
The CK6132 CNC lathe is a versatile and compact machine designed for high-efficiency processing of cylindrical, taper, and arc surfaces. Featuring a rigid bed structure that has been finely ground after ultra-tone quenching, it offers long-term durability and stability. This machine is ideal for industries such as automotive, valve manufacturing, and hardware, supporting both electric and gang-tool turrets for flexible production needs.
Key Metrics
Performance Highlights
2,500 rpm
Max Spindle Speed
3.7 kW
Max Motor Power
320 mm
Max Swing Over Bed
Technical Specifications
Machining Capacity
| Parameter | Value |
|---|---|
| Max Swing Over Bed | 320 mm |
| Max Swing Over Carriage | 150 mm |
| Max Cutting Length | 500 / 750 / 1000 mm |
| Spindle Bore | 40 mm |
| Rail Width | 212 mm |
Spindle and Tooling
- Spindle Nose: A2-5
- Spindle Taper: MT5
- Chuck Size: 6 inch
- Spindle Speed Range: 150-2500 rpm
- Tool Station Capacity: 4 or 6 stations
- Max Tool Section: 20x20mm or 16x16mm
Axes and Tailstock
- X-Axis Travel: 180 mm
- Z-Axis Travel: 500 / 750 / 1000 mm
- Rapid Speed (X/Z): 4 / 7 m/min
- Tailstock Sleeve Stroke: 100 mm
- Tailstock Sleeve Diameter: 32 mm
- Tailstock Taper: MT3
Configuration Options
- Customizable Features
- Half EnclosureFull EnclosureElectric TurretGang-tools TurretManual LubricationAuto Lubrication4-Position Tool Post6-Position Tool Post2.2kW Motor3.7kW Motor
Logistics
Physical Dimensions & Weight
| Metric | Value |
|---|---|
| Overall Dimensions | 1600/1920/2100 x 1120 x 1750 mm |
| Net Weight | 800 / 900 / 1050 kg |
| Gross Weight | 950 / 1050 / 1200 kg |
