High-Precision 45° Inclined Bed CNC Lathe

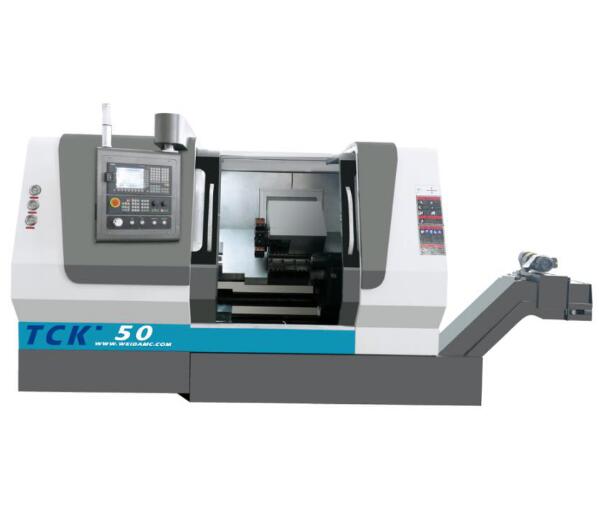

The TCK50 is a high-rigidity CNC lathe featuring a 45-degree inclined bed design, engineered for exceptional bending and torsional stability during heavy cutting operations. This machine integrates advanced linear guideways and a high-precision hydraulic turret to ensure consistent accuracy and efficiency for complex part processing. Designed for versatility, it handles everything from metric and inch threading to complex arc and cone face machining, making it an ideal solution for high-volume B2B manufacturing.
Key Performance Metrics
Key Performance Metrics
45 °
Bed Incline
2
Controlled Axes
Technical Design
- Bed Structure
- Integral 45° inclined bed with secondary aging treatment for enhanced stability
- Axis Control
- Directly connected X and Z axis servos with semi-closed loop control
- Guideway Type
- High-precision linear guideways
Machining Capabilities
- Processing Capabilities
- GroovingInner/Outer HoleBall TypeR-AngleArc SurfaceCone FaceEnd FaceMetric ThreadInch ThreadMulti-head Thread
Components & Configuration
Standard Configuration
- Hydraulic hollow chuck
- High-rigidity hydraulic turret
- Hydraulic tailstock
- Automatic centralized lubrication system
- Coolant system
- Full rail protection cover
- Precision ball screws with elastic coupling
CNC System Options
GSK980 TDiFANUC Oi TFSIEMENS 808D
Operational Features
- Design & Maintenance
- Electromechanical integration with compact layout for easy maintenance
- Thermal Protection
- Yes
- Chip Management
- Separated coolant tank and chip conveyor to protect machine accuracy
