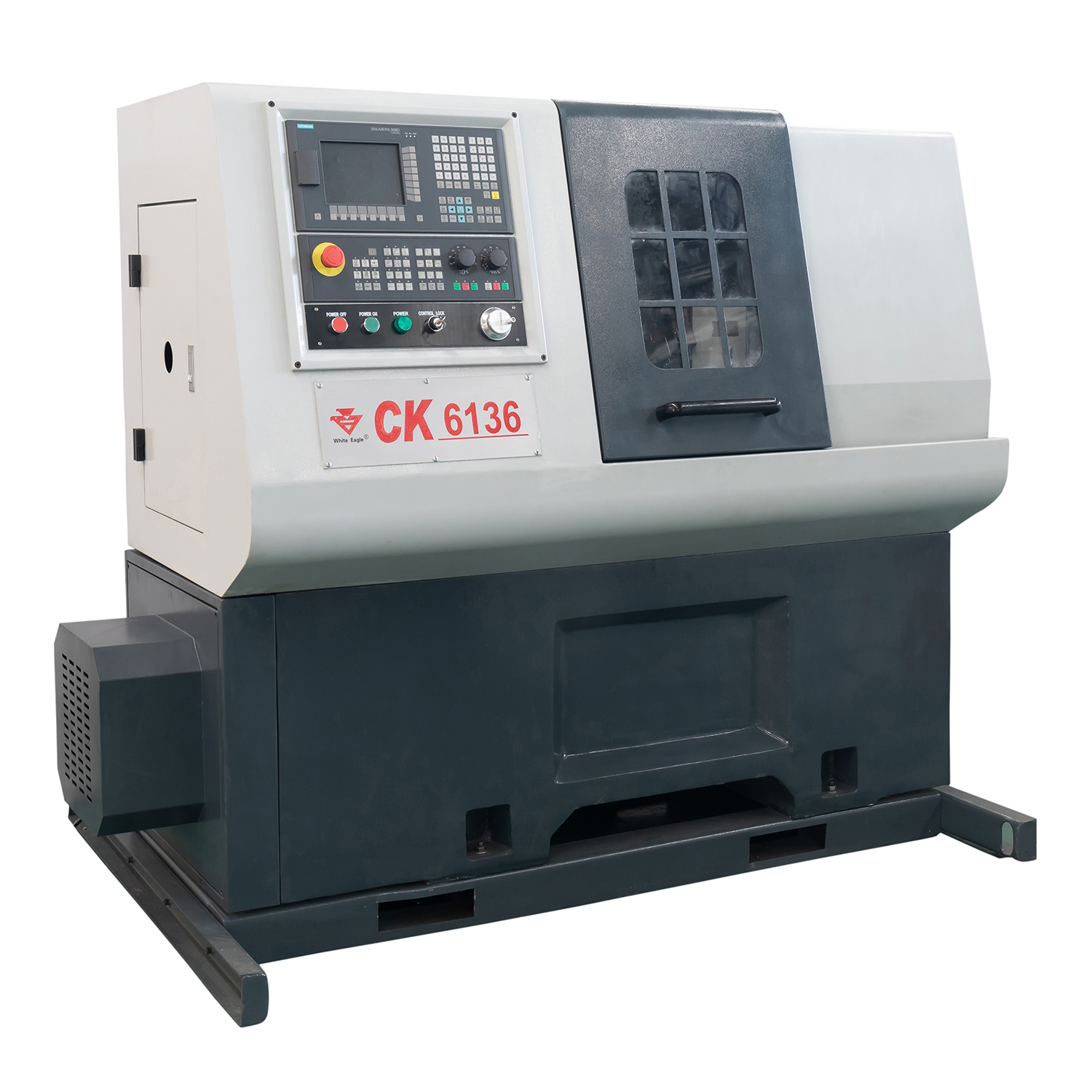

CNC Lathe Machine
This CNC lathe is designed for high-efficiency machining of internal and external diameters, faces, tapers, arcs, and threads. The machine features an induction-hardened bedway and imported precision bearings for enhanced accuracy and service life.
Technical Specifications
Overview
High-Efficiency CNC Lathe
This precision CNC lathe is designed for high-efficiency processing of internal and external diameters, facing, tapering, and complex threading operations. Featuring an induction-hardened bed-way and a spindle supported by imported precision bearings, it ensures long-term accuracy and stability. The machine offers flexible configuration options, including various toolpost stations and chuck types to meet specific industrial machining requirements.
Key Performance Metrics
Key Capabilities
360 mm
Swing Over Bed
130 mm
Swing Over Carriage
Technical Specifications
- Model
- CK6136
- Distance Between Centers
- 500mm700mm1000mm
- Spindle Speed Control
- Frequency changed
- Bed Construction
- Induction hardened bed-way with plastic sticker on bed saddle
Tooling & Hardware
Toolpost Stations
- 4-stations (Standard)
- 6-stations (Optional)
Available Chuck Types
- 3-jaw chuck (Standard)
- Hydraulic chuck (Optional)
- Pneumatic chuck (Optional)
Control System
- CNC Control System
- Siemens Sinumerik 808D
Compliance & Safety
Certifications
CE
Safety Features
- Full safety enclosure
- Control lock functionality
- Emergency power off
