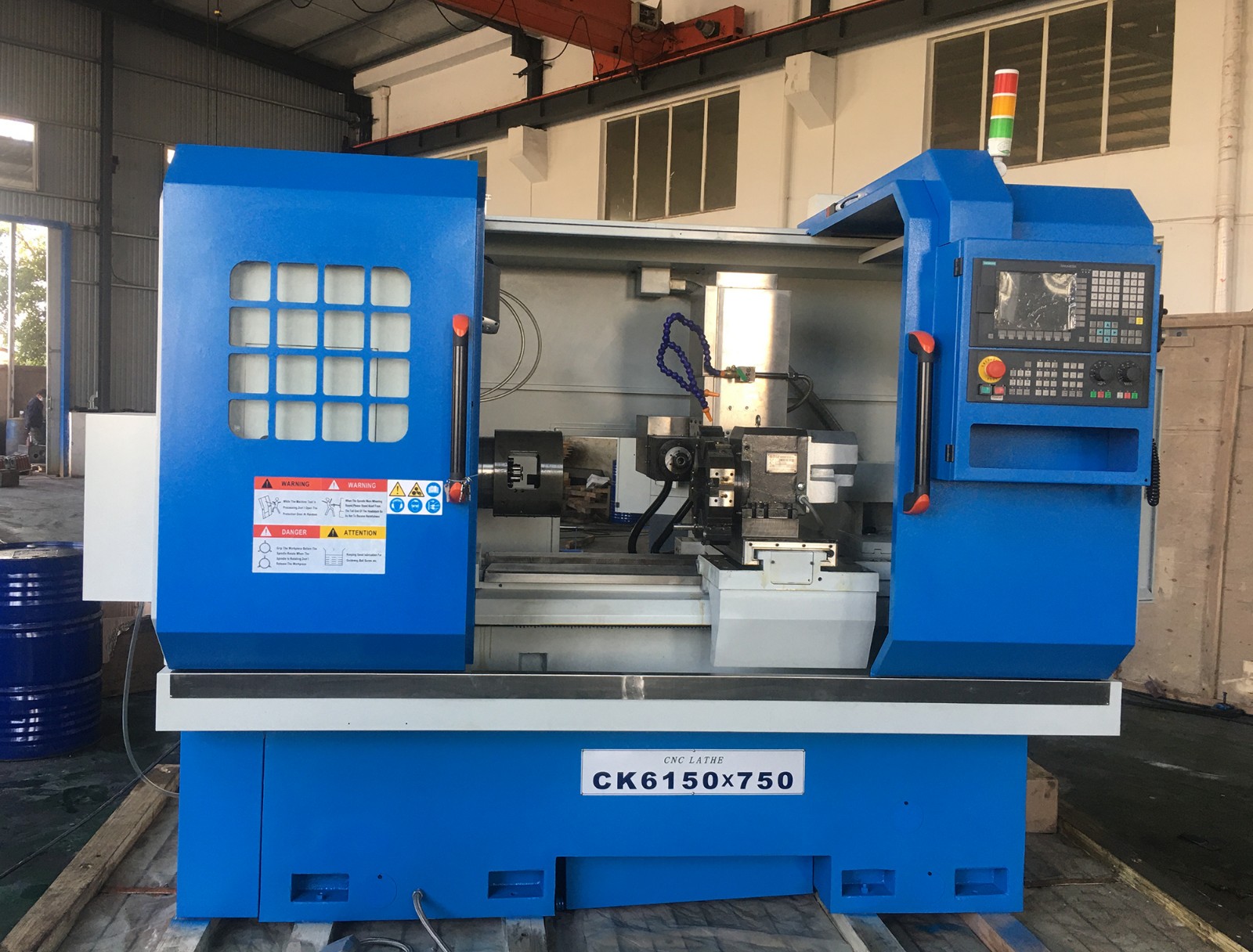

CNC Lathe CK6150
This CNC lathe features a braced machine bed made of grey cast iron. Its enclosure can be fixed with GSK, KND, Simens 808D or Fanuc controlling system.
Technical Specifications
Overview
High-Precision CNC Lathe CK6150
The CK6150 is a versatile, high-precision CNC lathe engineered for efficient metal cutting, turning, facing, and threading operations. Built with a rigid structure and supersonic frequency-hardened bedways, it ensures long-term stability and machining accuracy. This machine features an integrated automatic lubrication system and advanced servo-driven ball leadscrews, making it a reliable choice for both small-batch manufacturing and prototyping environments.
Capacity & Dimensions
- Max Swing Over Bed
- 500 mm
- Max Swing Over Carriage
- 280 mm
- Max Cutting Length
- 500mm750mm1100mm1500mm
Performance Metrics
Spindle Speed Range
1,600 rpm
Max Speed
30 rpm
Min Speed
- X/Z Rapid Traverse Speed
- 8 m/min
- Main Motor Power Options
- 7.5 kW11 kW
Technical Specifications
Spindle Specifications
| Feature | Value |
|---|---|
| Spindle Bore | 52/80 mm |
| Spindle Nose | A2-8 |
| Taper | MT6 / 1:20 |
Tailstock Specifications
- Stroke: 150mm
- Diameter: 75mm
- Taper: MT4
Tooling Configuration
4-Station6-Station8-StationGang Tools
- Coolant Pump Power
- 180 W
