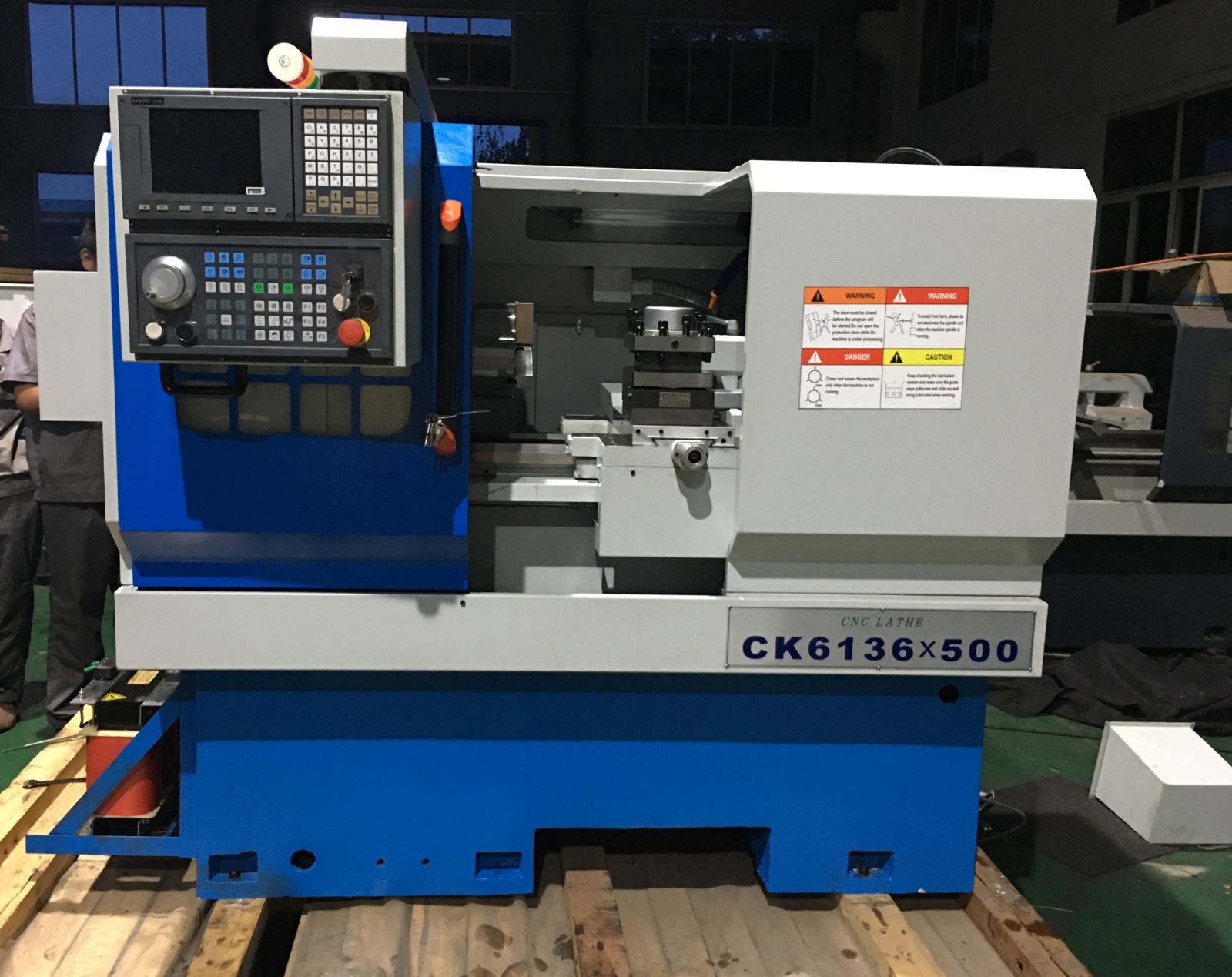

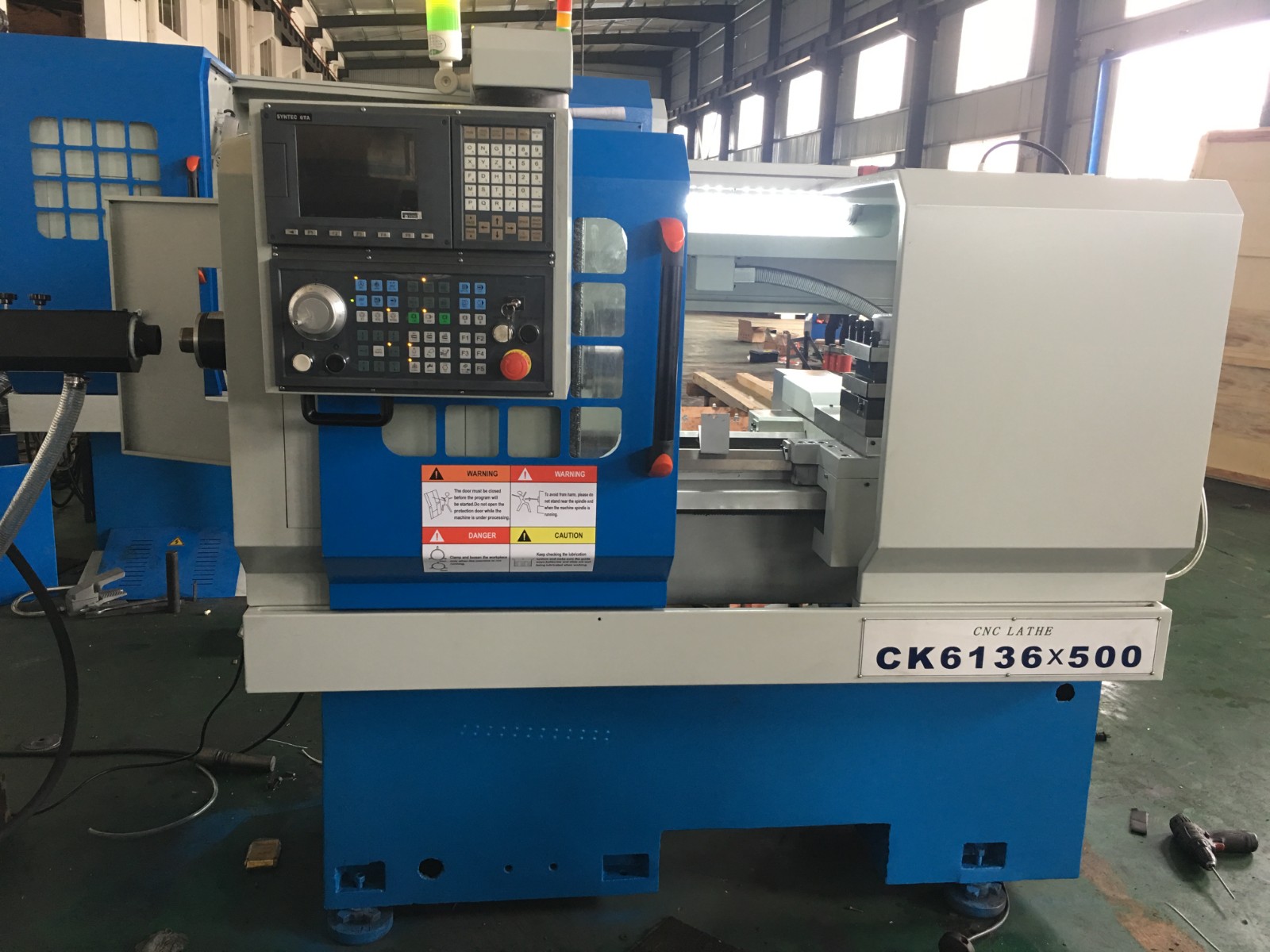

CNC Lathe CK6136
This CNC lathe features a braced machine bed made of grey cast iron and an elaborate spindle bearing. Bed guideways and the dovetail slot lathe carriage are inductively hardened.
Technical Specifications
Overview
High-Precision CNC Lathe CK6136
The CK6136 is a robust, high-precision CNC lathe engineered for efficient metal cutting, turning, and threading operations. It features a rigid bedway design with supersonic frequency hardening for long-term durability and accuracy. Equipped with servo-driven ball leadscrews and a versatile tool post system, this machine is suitable for both small-batch production and high-volume manufacturing environments.
Machining Capacity
- Max Swing Over Bed
- 360 mm
- Max Swing Over Carriage
- 210 mm
- Max Cutting Length
- 500mm750mm1100mm1500mm
Spindle System
- Spindle Bore Diameter
- 60 mm
- Spindle Speed Range
- 150-2000 rpm (or dual range 60-600 / 280-2000 rpm)
- Spindle Nose
- A2-6
Performance Metrics
Key Performance Metrics
5.5 kW
Main Motor Power
4 m/min
X-Axis Rapid Speed
7 m/min
Z-Axis Rapid Speed
Tooling & Accessories
- Tool Carrier Stations
- 4, 6, or 8 stations
- Max Tool Section
- 25 x 25 mm
- Tailstock Specifications
- Stroke: 120mm; Diameter: 55mm; Taper: MT4
Physical Dimensions
Weight and Dimensions
| Metric | Net Weight (kg) | Gross Weight (kg) |
|---|---|---|
| Standard | 1,350 | 1,550 |
| Extended | 1,500 | 1,700 |
| Long | 1,700 | 1,900 |
| Extra Long | 2,100 | 2,300 |
