CNC Lathe
This CNC lathe is designed for precision machining with stability and accuracy during high-speed operations. It features a user-friendly control panel for programming and monitoring, and an enclosed design for operator safety.
Technical Specifications
Overview

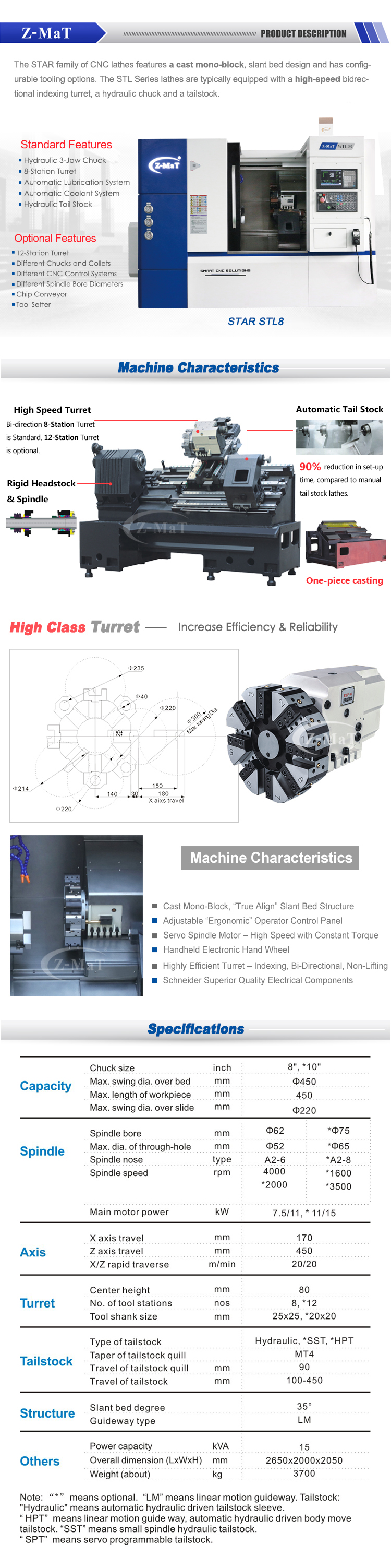

High-Precision CNC Lathe for Advanced Manufacturing
The STL8 is a high-performance CNC lathe featuring a cast mono-block, 35-degree slant bed design for maximum stability and precision during high-speed operations. Equipped with a high-speed bi-directional indexing turret and a hydraulic tailstock, it is designed to increase efficiency and reliability in diverse turning applications. Its ergonomic control panel and enclosed safety design make it a versatile solution for professional manufacturing environments.
Key Performance Metrics
Key Performance Metrics
4,000 RPM
Max Spindle Speed
450 mm
Max Swing Diameter
450 mm
Max Workpiece Length
20 m/min
Rapid Traverse (X/Z)
Machine Structure
Machine Characteristics
- Cast Mono-Block Construction
- 35° True Align Slant Bed Structure
- Linear Motion (LM) Guideways
- Servo Spindle Motor with Constant Torque
- Handheld Electronic Hand Wheel
- Schneider Quality Electrical Components
Technical Specifications
Capacity & Spindle
| Parameter | Value |
|---|---|
| Chuck Size | 8 inch (Standard) / 10 inch (Optional) |
| Max. Swing Over Slide | 220 mm |
| Spindle Bore | 62 mm / 75 mm |
| Max. Through-hole Diameter | 52 mm / 65 mm |
| Spindle Nose Type | A2-6 / A2-8 |
| Main Motor Power | 7.5/11 kW or 11/15 kW |
Tooling & Tailstock
Turret & Tailstock Details
| Feature | Specification |
|---|---|
| Turret Stations | 8 (Standard) / 12 (Optional) |
| Tool Shank Size | 25x25 mm / 20x20 mm |
| Tailstock Type | Hydraulic / SST / HPT |
| Tailstock Quill Taper | MT4 |
| Tailstock Quill Travel | 90 mm |
| Tailstock Total Travel | 100-450 mm |
Standard Features
- Standard Equipment
- Hydraulic 3-Jaw Chuck8-Station TurretAutomatic Lubrication SystemAutomatic Coolant SystemHydraulic Tail Stock
Optional Configurations
- Optional Features
- 12-Station TurretTool SetterChip ConveyorAlternative CNC Control SystemsCustom Chucks & Collets
Physical Dimensions
- Machine Weight
- 3700 kg
- Overall Dimensions (LxWxH)
- 2650 x 2000 x 2050 mm
- Power Capacity
- 15 kVA
