CNC Large Press Brake for Metal Forming
The CNC press brake is a large CNC bending machine with a big throat and opening height, featuring automated loading and unloading. It is suited for processing bottom beams of trucks, truck frame booms, and steel structures.
Technical Specifications
Overview
High-Capacity CNC Press Brake

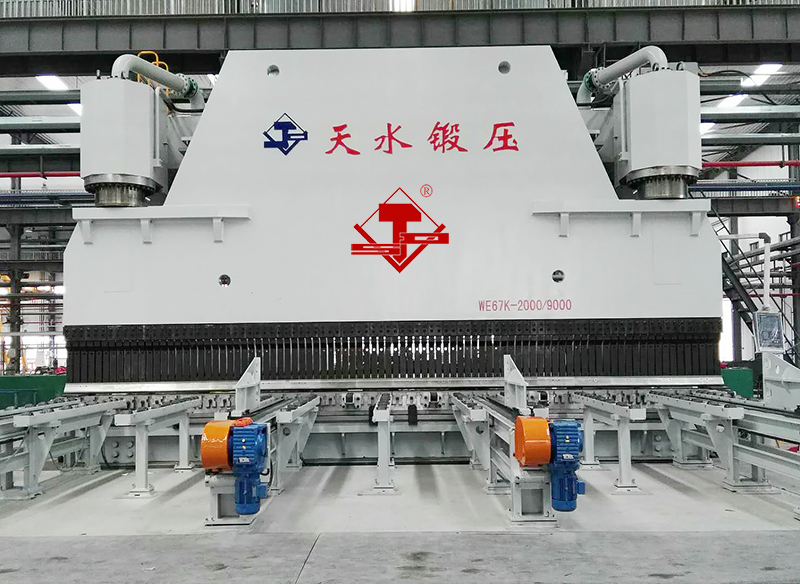

The WE67K-2000/9000 is a robust CNC press brake engineered for large-scale metal forming, specifically optimized for truck crane booms, bottom beams, and heavy steel structures. Featuring advanced finite element analysis design and patented multi-point mechanical deflection compensation, this machine ensures high rigidity and consistent bending precision. Its large throat and opening height, combined with automated loading capabilities, provide an efficient solution for heavy-duty industrial manufacturing.
Performance Metrics
Key Performance Metrics
20,000 kN
Nominal Pressure
9,000 mm
Table Length
1,200 mm
Max Open Height
800 mm
Throat Depth
Technical Specifications
Technical Data
| Parameter | Value |
|---|---|
| Center Distance (Uprights) | 7100 mm |
| Ram Stroke | 400 mm |
| Main Motor Power | 2*55 kW |
| Overall Dimensions (L*W*H) | 9500*4450*6400 mm |
Operating Speeds
Operational Speeds
- Approaching: 80 mm/s
- Working: 7 mm/s
- Returning: 60 mm/s
Configuration
Optional Features
Variable Throat DepthCustom ToolingAdditional Control AxesLight CurtainOil Cooler/WarmerCE Certified
- Standard Configuration
- CNC System (Delem/Cybelec/ESA)Hydraulic Proportional Valve (Hoerbiger/Bosch)Schneider Electrical ComponentsGivi Optical ScaleNachi Gear PumpNOK Cylinder SealsABBA Ball Screw/Linear Guide
