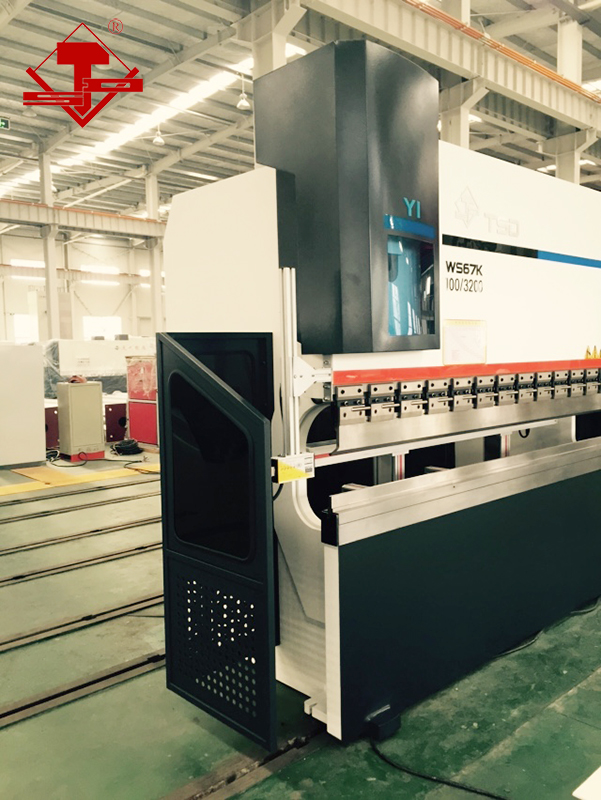

CNC Hydraulic Press Brake
This CNC hydraulic press brake utilizes hydraulic power and a CNC system for controlled metal forming. It ensures stable operation, high repositioning precision, and accurate workpiece creation.
Technical Specifications
Overview

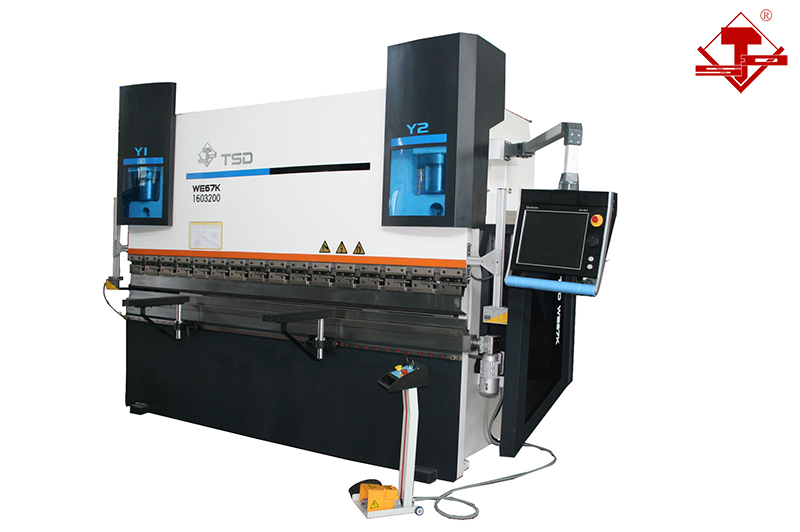

High-Precision CNC Hydraulic Press Brake
The WE67K-160/3200 series is an advanced up-stroke CNC press brake featuring a fully welded ASTM283M Gr.D steel construction for maximum rigidity. It utilizes an international electro-hydraulic proportional synchronous control system to ensure high repositioning precision and stable performance even under eccentric loading. This machine is designed for professional metal fabrication, offering a fully closed-loop control system for precise ram speed and position management.
Performance Metrics
Key Performance Metrics
1,600 kN
Nominal Pressure
3,200 mm
Table Length
11 kW
Motor Power
Technical Dimensions
- Distance Between Uprights
- 2700 mm
- Throat Depth
- 400 mm
- Stroke of Ram
- 200 mm
- Max Open Height
- 470 mm
Operation Speed
Operating Speeds
| Phase | Speed |
|---|---|
| Approaching | 120 mm/s |
| Working | 9 mm/s |
| Returning | 95 mm/s |
Control System
Control Features
- Electro-hydraulic proportional synchronous control (Y1, Y2)
- Fully closed loop control
- Optical scale feedback
- Automatic oil cylinder crowning in table
- CNC System Options
- Delem DA52Cybelec DNC880SESA S530
Components
Standard Configuration Components
| Component | Origin/Brand Type |
|---|---|
| Proportional Valve Group | Germany |
| Main Electrical Components | Schneider |
| Optical Scale | Italy |
| Gear Pump | Japan (Low Noise) |
| Oil Cylinder Seal Ring | Japan |
| Ball Screw & Linear Guide | Taiwan |
Physical Characteristics
- Overall Dimensions (L*W*H)
- 3300 * 2210 * 2660 mm
Optional Features
Available Options
Custom Throat DepthSpecial ToolingR/Z Axis Back GaugeLight CurtainOil Cooler/WarmerCE Certificate
