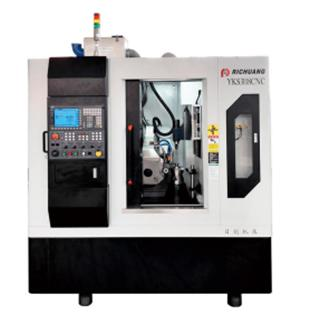

CNC Gear Hobbing Machine
This machine utilizes the generating method principle and an electronic gearbox within its CNC system. It is mainly used for machining high-precision spur gears, helical gears, turbines, drum gears, and splines, offering strong steel construction and stable precision for high-speed cutting.
Technical Specifications
Machine Overview
High-Precision CNC Gear Hobbing Solution
This CNC gear hobbing machine is engineered for high-rigidity and superior stability, featuring a double-wall cast iron base that ensures consistent accuracy. Equipped with advanced servo and direct-drive motor systems, it eliminates transmission errors while providing robust tool support for demanding machining tasks. Designed for both efficiency and durability, it includes automated tool channeling and rapid fallback protection to maximize productivity and safeguard equipment during operation.
Technical Performance
Machining Accuracy
- Hard Tooth Surface Machining
- Yes
Design & Construction
Structural Highlights
- High-rigidity cast iron base with double-wall structure
- Direct-drive DD motor for work shaft (C axis)
- Servo motor direct-connected tool holder (B axis)
- Balanced cylinder and motor-starting tool feed drive
Operational Features
- Automation & Safety
- Automatic Tool ChannelingFast Fallback ProtectionQuantitative Oil CoolingUser-Friendly HMI
