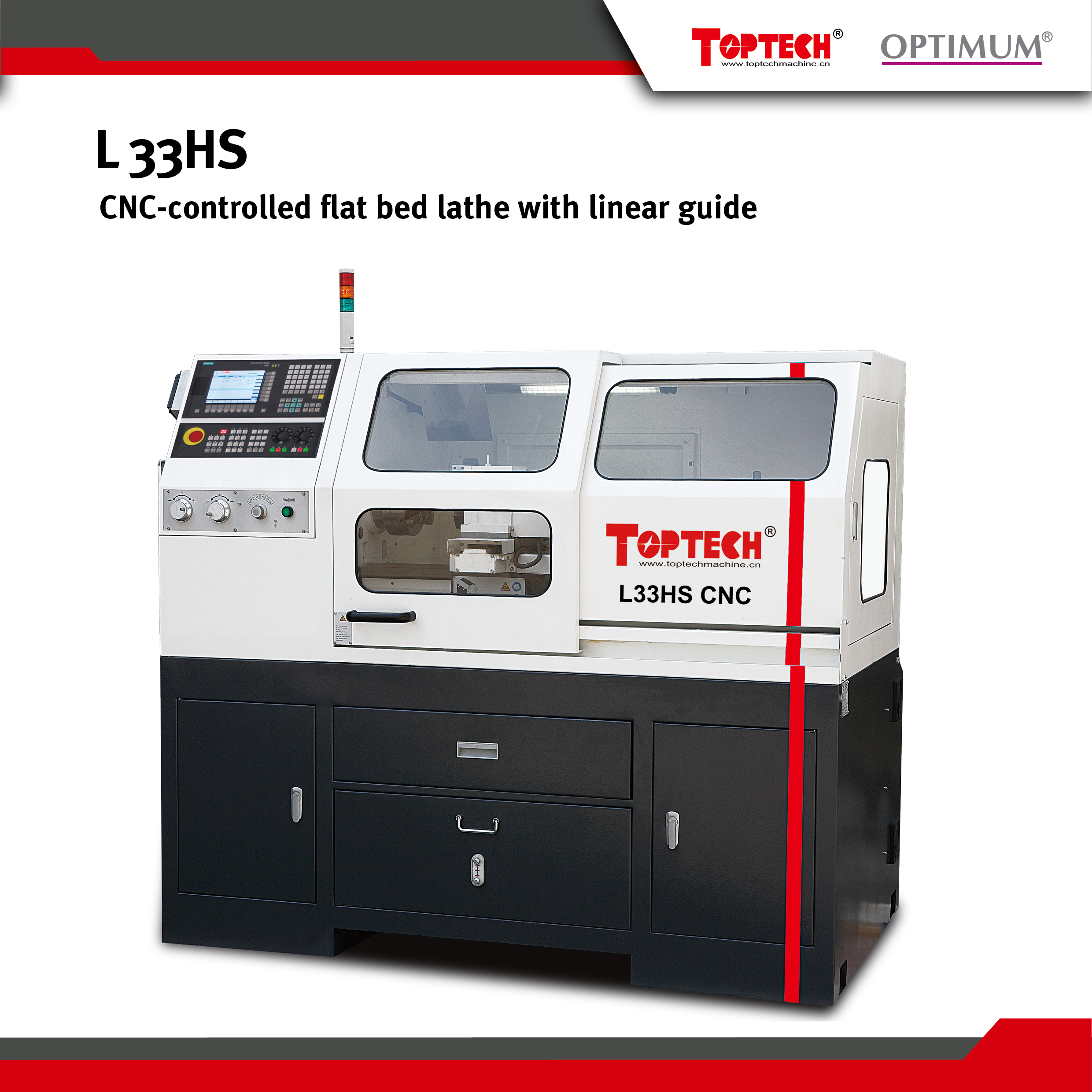

CNC Flat Bed Lathe
This CNC flat bed lathe is equipped with a linear guide and designed for precision metal cutting and turning operations. It features a user-friendly control panel and a robust construction for stability and accuracy during machining.
Technical Specifications
Overview
Precision CNC Flat Bed Lathe
This CNC-controlled flat bed lathe is designed for high-precision metal cutting and versatile turning operations, including facing, threading, and profiling. Featuring a robust construction with inductively hardened bed guideways (HRC42-52) and linear guides, it ensures exceptional stability and accuracy. Equipped with a 6-way electric turret and an advanced servo-drive system, this machine provides efficient multi-tool machining suitable for a wide range of industrial applications.
Key Performance Metrics
Key Performance Metrics
4,000 rpm
Max Spindle Speed
330 mm
Swing Over Bed
6 pos
Tool Positions
0.025 mm
Position Accuracy
Capacity & Dimensions
- Swing Over Cross Slide
- 152 mm
- Center Width
- 630 mm
- Center Height
- 165 mm
Spindle System
Spindle Specifications
| Feature | Specification |
|---|---|
| Spindle Nose | A2-4 |
| Spindle Taper | 1:20 |
| Spindle Bore | Ø38 mm |
| Lathe Chuck | Ø160 mm |
Machining & Travel
Axis Travel & Speed
| Axis | Travel | Rapid Speed |
|---|---|---|
| X Axis | 165 mm | 6000 mm/min |
| Z Axis | 600 mm | 8000 mm/min |

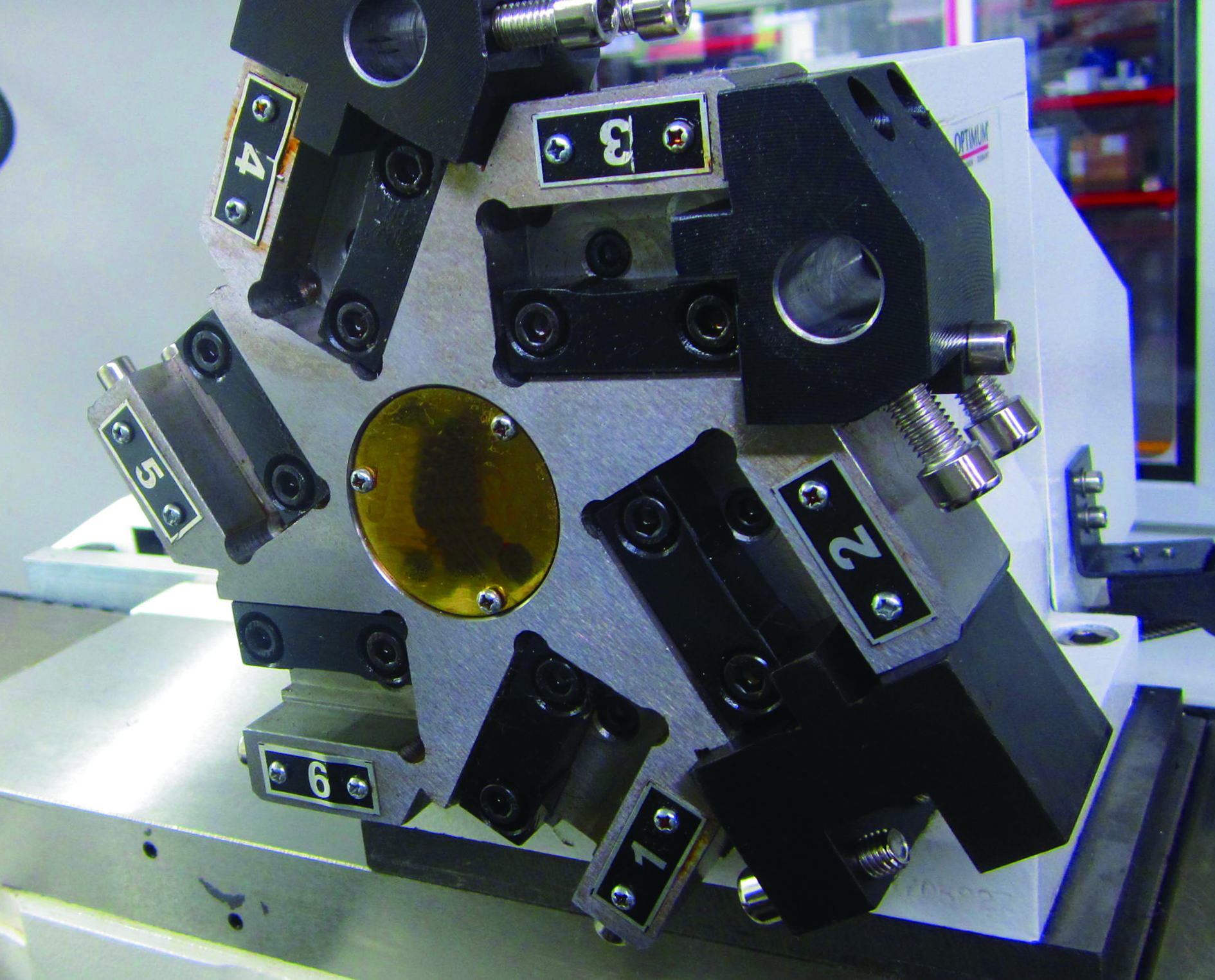

Tooling & Turret
- Turret Type
- 6-way electric turret
- Max Tool Section
- 16x16 mm
Electrical & Power
Power Requirements
- Connection: 400V 50Hz 3ph
- Total Power: 5 KW
- Main Motor Power: 3 KW
- Coolant Pump Power: 95 W
Tailstock
- Tailstock Taper
- MT3
- Sleeve Diameter
- 45 mm
Standard Features
- Included Systems
- Coolant SystemAutomatic LubricationBall Screw (2-axis)Servo-driveLinear GuideInductively Hardened Guideways
Compliance
Safety Compliance
European Safety Standards
