CNC Engraving and Milling Router
This CNC router is designed for engraving and milling operations on a variety of materials. It features a control system for precise and efficient performance, ensuring high-quality results in various applications.
Technical Specifications
Overview
Professional CNC Engraving and Milling Solution

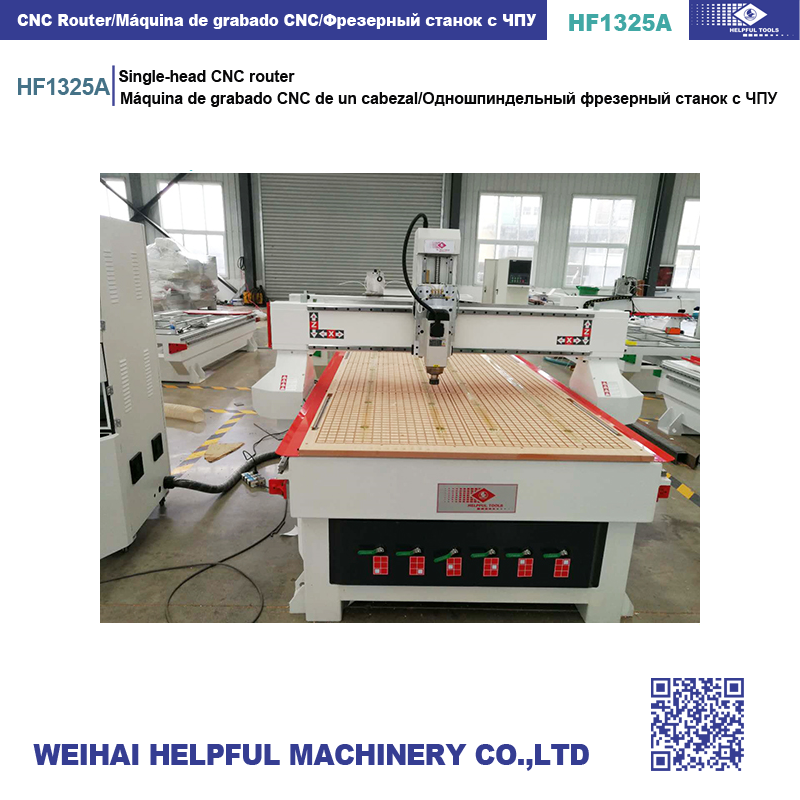

The HF1325A is a high-precision, single-head CNC router engineered for versatile engraving and milling operations across various materials including wood and plastics. This robust machine combines high-speed spindle performance with advanced transmission systems to deliver efficient and accurate results for furniture making and sign production. Designed for professional B2B applications, it offers a stable platform for complex machining tasks with reliable control options.
Performance Metrics
Key Performance Metrics
18,000 RPM
Max Spindle Speed
6 kW
Spindle Power
25 m/min
Travel Speed
15 m/min
Working Speed
Technical Specifications
Work Area and Dimensions
| Parameter | Specification |
|---|---|
| Travelling Area | 1260 x 2500 mm |
| Working Area | 1240 x 2480 mm |
| Table Size | 1300 x 2500 mm |
Mechanical Design
Transmission & Drive
- X/Y Axis: Rack and pinion drive
- Z Axis: High-precision ball screw drive
- Working Mode: Stepper system
- Table Structure
- Vacuum system for secure workpiece holding
Control Systems
- Available Control Systems

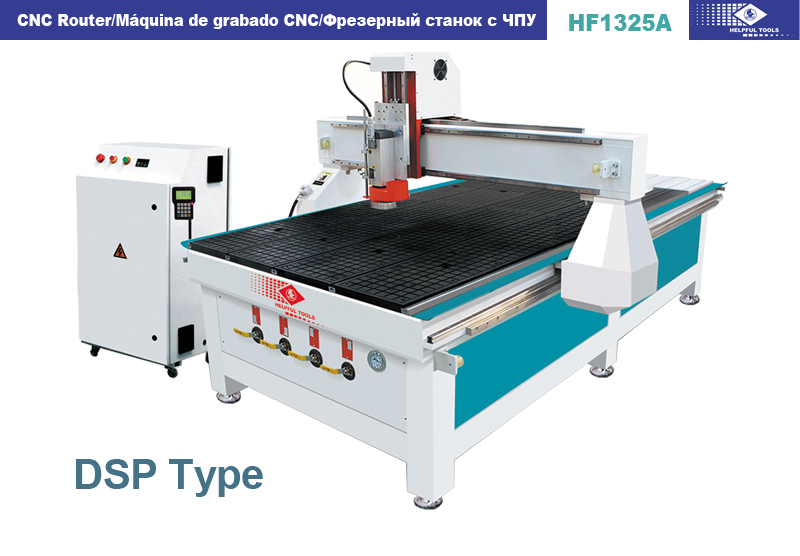

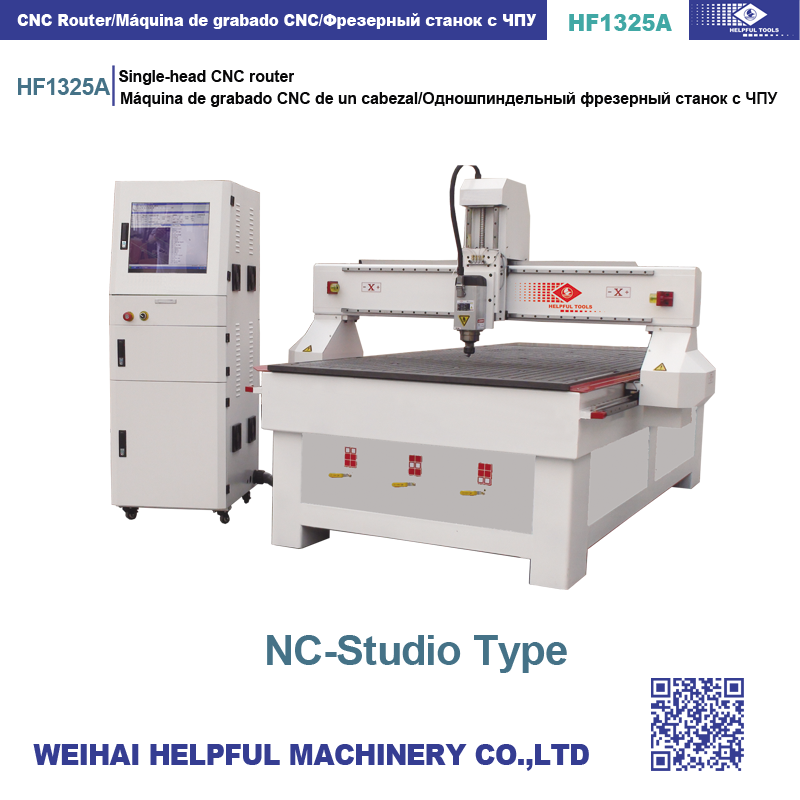

- DSP TypeNC-Studio PC
Power Requirements
- Power Supply
- AC380V / 3 Phase / 50Hz
Applications
Compatible Materials
WoodPlasticsComposite Materials
Target Industries
- Furniture Manufacturing
- Sign Making
- Custom Woodworking
- Industrial Engraving
Compliance
- Certifications
- CE
