CNC Drilling Machine

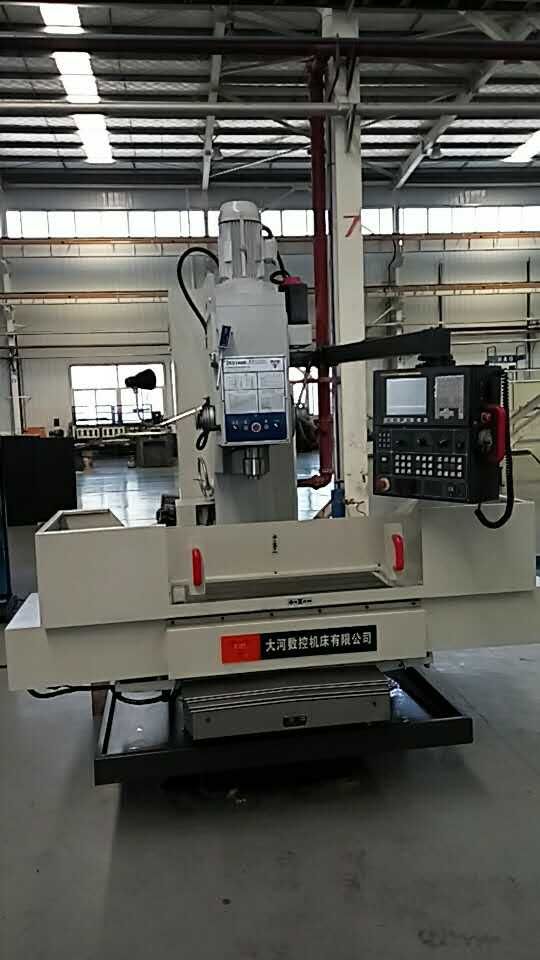

This CNC drilling machine features a vertical machining center lathe bed and sliding seat for high rigidity. It is equipped with a full gear transmission structure and can be fitted with a Guangzhou CNC system.
Technical Specifications
Overview
High-Rigidity CNC Drilling Solution
This CNC drilling machine is built on a specialized cast iron base with a vertical machining center design, ensuring high structural rigidity and stability during heavy-duty operations. The ergonomic design features a reduced worktable height to facilitate easier loading and unloading of workpieces for operators. Equipped with a Guangzhou CNC system and servo motor control for all axes, it delivers precise and efficient drilling performance across a wide range of industrial applications.
Key Performance Metrics
Performance Highlights
80 mm
Max Drilling Diameter
0.025 mm
Positioning Accuracy
800 N.m
Max Spindle Torque
5.5 kW
Main Motor Power
Technical Specifications
Model Specifications Comparison

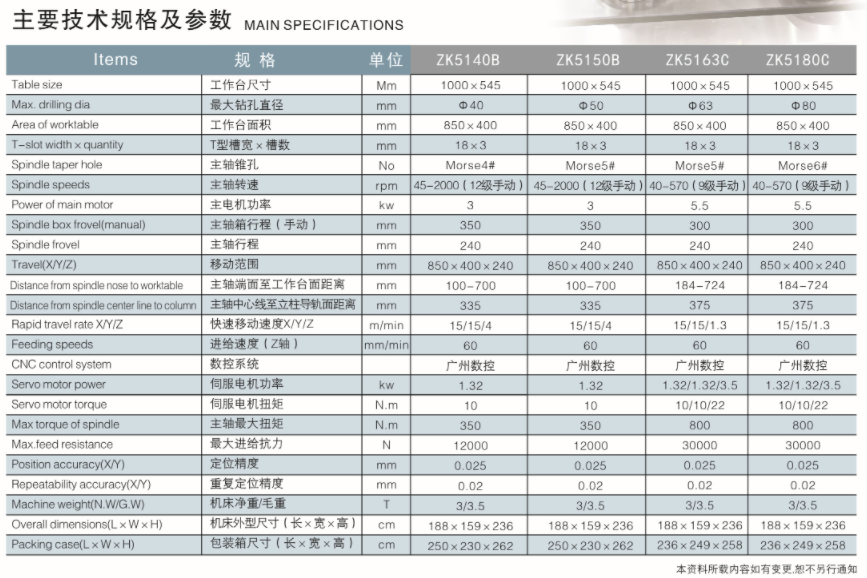

| Feature | ZK5140B | ZK5150B | ZK5163C | ZK5180C |
|---|---|---|---|---|
| Max Drilling Diameter | Φ40 mm | Φ50 mm | Φ63 mm | Φ80 mm |
| Spindle Taper | Morse 4# | Morse 5# | Morse 5# | Morse 6# |
| Spindle Speed (RPM) | 45-2000 | 45-2000 | 40-570 | 40-570 |
| Main Motor Power | 3 kW | 3 kW | 5.5 kW | 5.5 kW |
| Max Spindle Torque | 350 N.m | 350 N.m | 800 N.m | 800 N.m |
| Max Feed Resistance | 12000 N | 12000 N | 30000 N | 30000 N |
Worktable & Travel
- Worktable Dimensions
- 1000 x 545 mm
- Travel Range (X/Y/Z)
- 850 x 400 x 240 mm
- Rapid Travel Rate (X/Y/Z)
- Up to 15/15/4 m/min
Mechanical Features
Core Features
- High-rigidity vertical machining center bed and sliding seat
- Quenched and ground guide rails and worktable
- Automatic intermittent lubrication for smooth feeding
- Ball screw drive for X and Y axes with direct motor connection
- Full gear transmission spindle box structure
- High flow rate cooling system and wide swarf discharging slot
- Optional Equipment
- 4th Axis Rotary Indexing Coordinate
Control System
Drive Mode
Servo Motor Spindle3-Axis Servo ControlBall Screw Drive
- CNC Control System
- Guangzhou CNC Model 980MD
Physical Data
- Net/Gross Weight
- 3 / 3.5 T
- Overall Dimensions
- 188 x 159 x 236 cm
