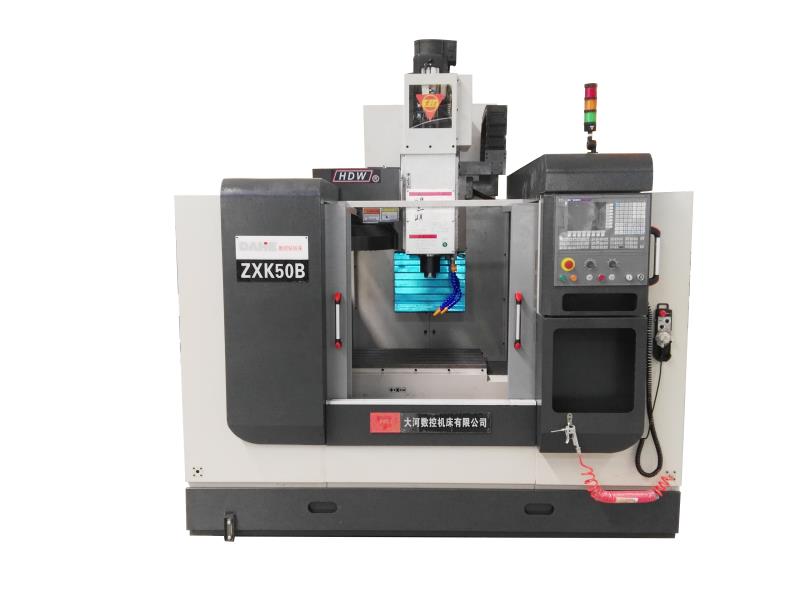

CNC Drilling and Milling Machine
This CNC drilling and milling machine features high rigidity and heavy cutting capabilities with a maximum spindle torque of 450NM. It can be equipped with a Guangzhou CNC system and a 7" widescreen color LCD for easy operation.
Technical Specifications
Overview
High-Performance CNC Machining Center
This heavy-duty CNC drilling and milling machine is engineered for high-rigidity and precision cutting operations. Featuring a robust cast structure and direct-drive ball screw axes, it ensures smooth feeding and exceptional accuracy. Equipped with an advanced control system and automatic tool changing capabilities, this machine is designed to handle complex milling, boring, and drilling tasks with maximum efficiency.
Performance Metrics
Key Performance Metrics
450 Nm
Max Spindle Torque
30 M
Tapping Capacity
25,000 N
Max Feed Resistance
Technical Specifications
Machine Technical Data
| Parameter | ZXK50A | ZXK50A-100 | ZXK80 |
|---|---|---|---|
| Worktable Area (mm) | 1000 x 545 | 1000 x 545 | 1000 x 545 |
| Spindle Taper | BT40 | BT40 | BT50 |
| Spindle Speed (rpm) | 30-2000 | 30-2000 | 30-1051 |
| Positioning Accuracy (mm) | 0.025 | 0.025 | 0.025 |
| Repeatability (mm) | 0.02 | 0.02 | 0.02 |
Machine Features
- Core Capabilities
- Automatic Tool Changer (ATC)Full Gear TransmissionDirect Motor-Screw ConnectionIntermittent LubricationHigh-Rigidity Casting
- Control System
- 7-inch widescreen color LCD with support for drilling, boring, and milling cycles.
