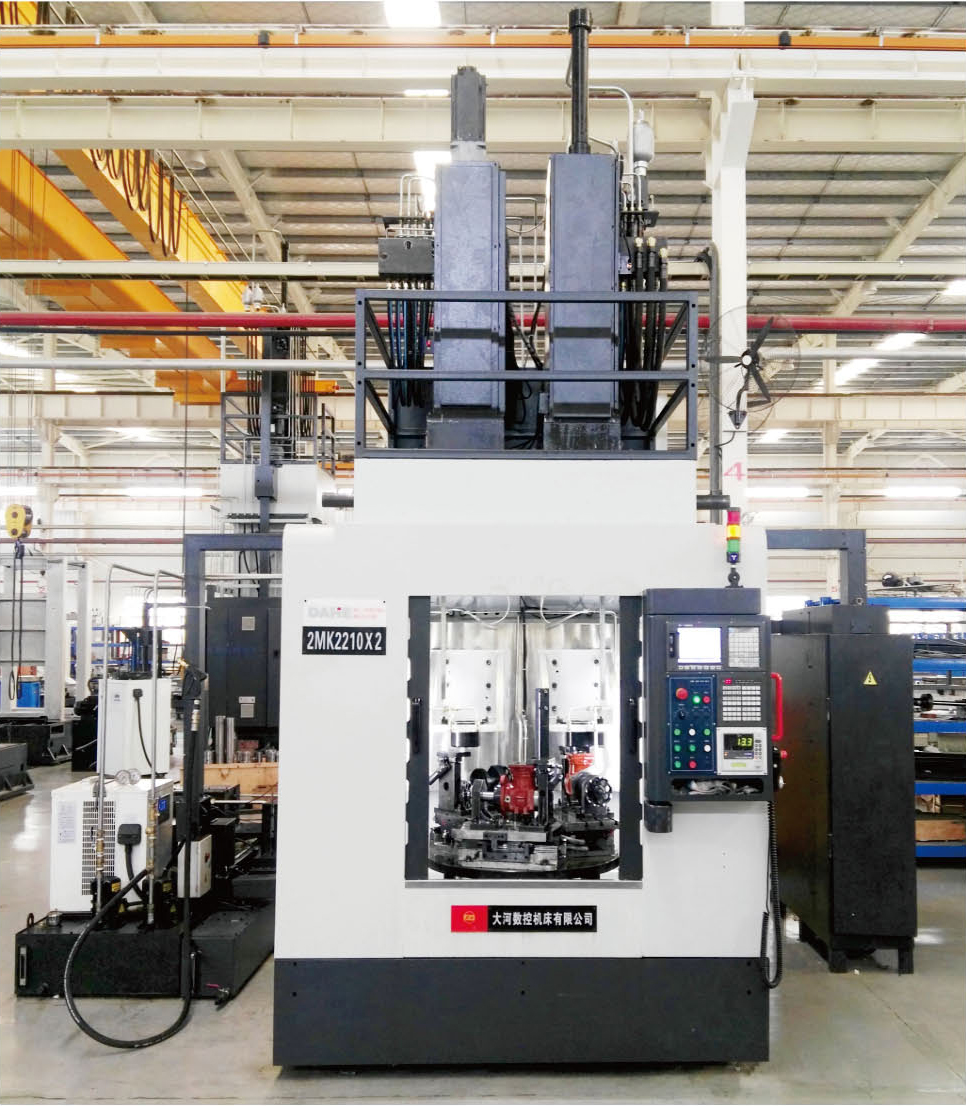

CNC Double Axis Honing Machine
The CNC double axis honing machine is a precision machine tool designed for grinding and honing applications. It features a robust construction with a vertically oriented structure and a CNC control panel for automated operation.
Technical Specifications
Overview
Precision Dual-Axis Honing
The CNC Double Axis Honing Machine is engineered for high-precision internal finishing of cylindrical bores and surfaces. Featuring dual spindles that operate simultaneously or independently, this machine allows for both rough and fine machining in a single setup, significantly increasing production efficiency. Its robust frame construction and integrated cooling systems ensure stability and consistent thermal control for demanding industrial applications.
Technical Specifications
- Machine Type
- CNC Vertical Honing Machine
- Spindle Configuration
- Double Axis / Dual Spindle
- Max Brake Hub Diameter
- 450 mm
- Key Features
- CNC ControlDual SpindleVertical OrientationIntegrated CoolingAdjustable Spindle Spacing
Operational Capabilities
Processing Modes

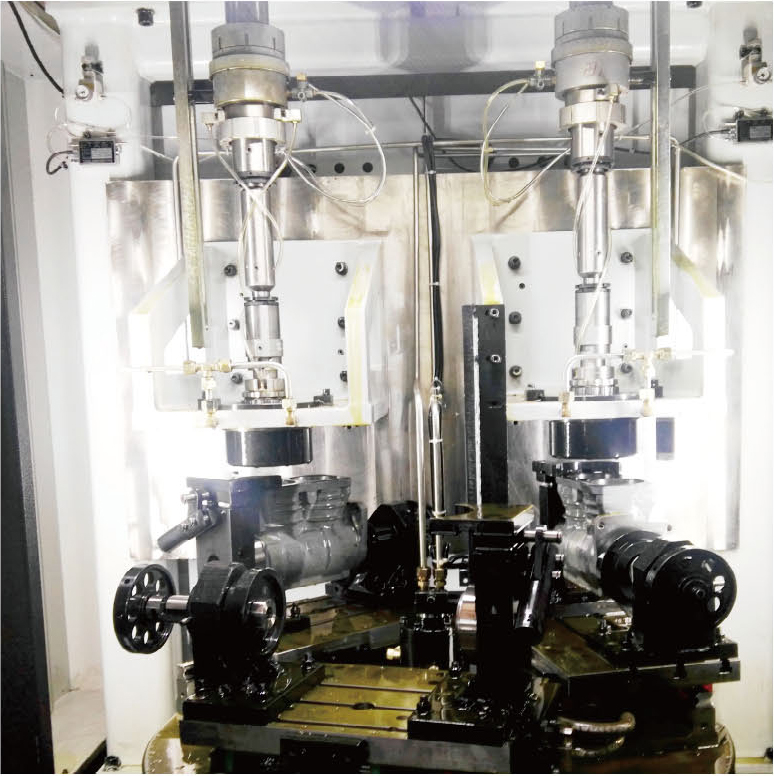

- Simultaneous processing of two workpieces
- Independent rough and fine machining
- Synchronized workpiece displacement and spindle movement
Performance Metrics
450 mm
Max Honing Diameter
Construction & Design
Safety Features
Fully Enclosed Work AreaConstant Temperature Control
- Structural Design
- Frame-type welding structure for high rigidity
