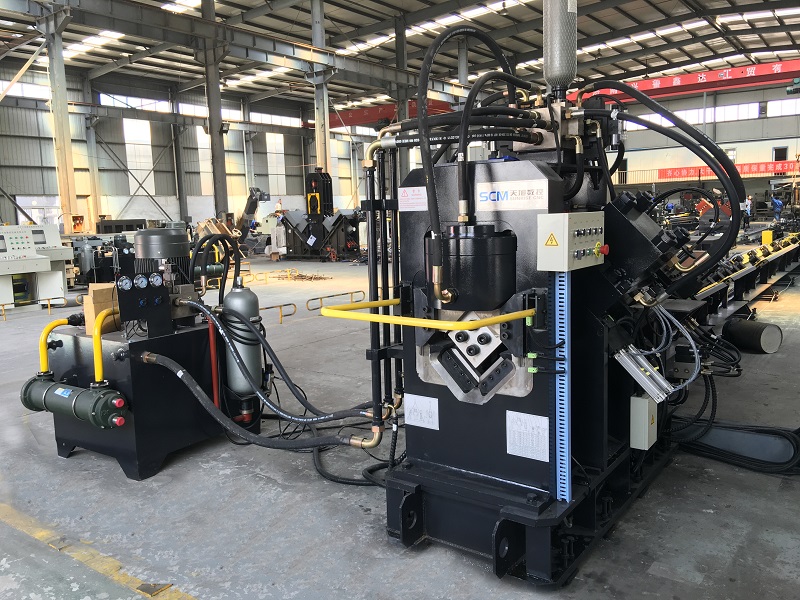

CNC Angle Steel Punching, Marking, and Shearing Line
This CNC angle punching, marking, and shearing line is designed for efficient and precise processing of angle steel. The automated system integrates punching, marking, and shearing operations to streamline production and reduce material handling.
Technical Specifications
Product Overview
High-Efficiency CNC Processing Line
This automated CNC line is engineered for the precision punching, marking, and shearing of angle steel in structural fabrication, power fitting, and construction industries. Featuring advanced numerical control and high-speed material feeding, the system integrates multiple processing steps into a single, seamless workflow. It utilizes specialized hydraulic systems and robust marking units to ensure high accuracy while minimizing raw material scrap through intelligent shearing technologies.
Key Features
- Advanced Capabilities
- Automatic FeedingCNC Precision ControlEnclosed Marking UnitMaterial Waste ReductionIntegrated Hydraulic SystemProgrammable Selection
Performance Metrics
Featured Performance
80 m/min
Feeding Speed
3 axes
CNC Axes
12 m
Max Blank Length
Technical Specifications
Model Specifications
| Specification | TBL1412 | TBL1412A | TAPM1412 |
|---|---|---|---|
| Punching Force (kN) | 600 | 600 | 1000 |
| Marking Force (kN) | 630 | 630 | 1030 |
| Cutting Force (kN) | 900 | 1800 | 1800 |
| Shearing Mode | Double blade | Single blade | Single blade |
| Punches per side | 2 | 2 | 3 |
Electrical & Physical
- Power requirement: 34kW (TBL1412/1412A) - 43kW (TAPM1412)
- Letter size: 14x10x19 mm
- Max finished length: 8 m
- Angle size range: 40x40x3 to 140x140x12 mm
