Technical Specifications
Product Overview
High-Efficiency Centrifugal Pumping

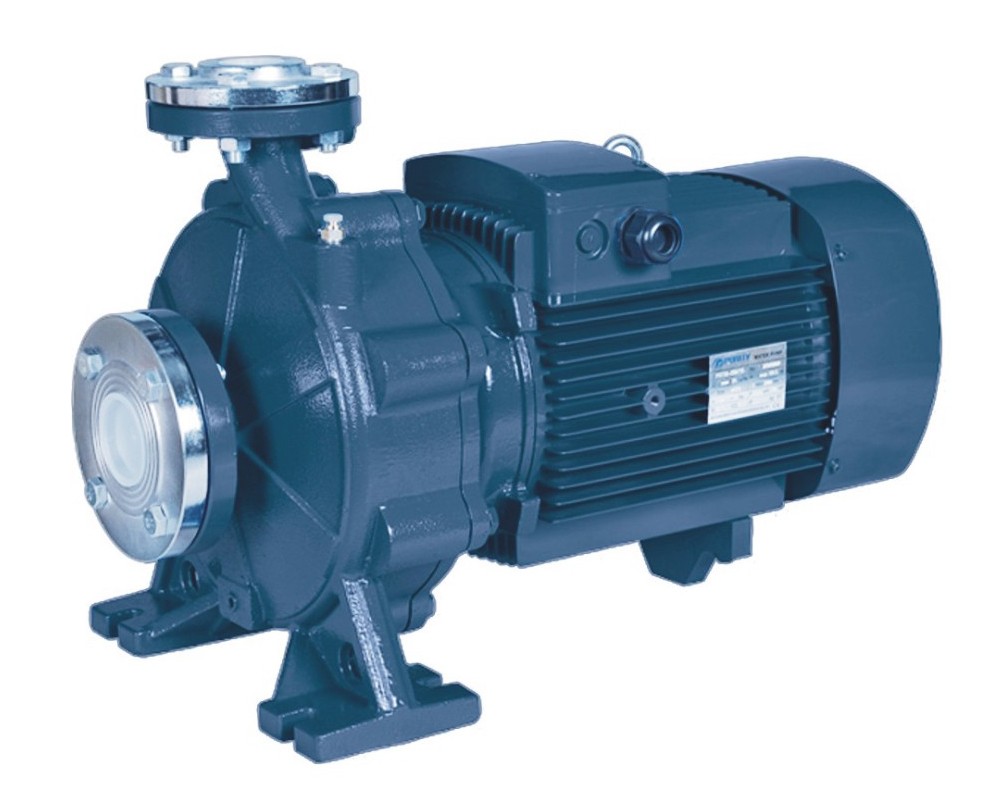

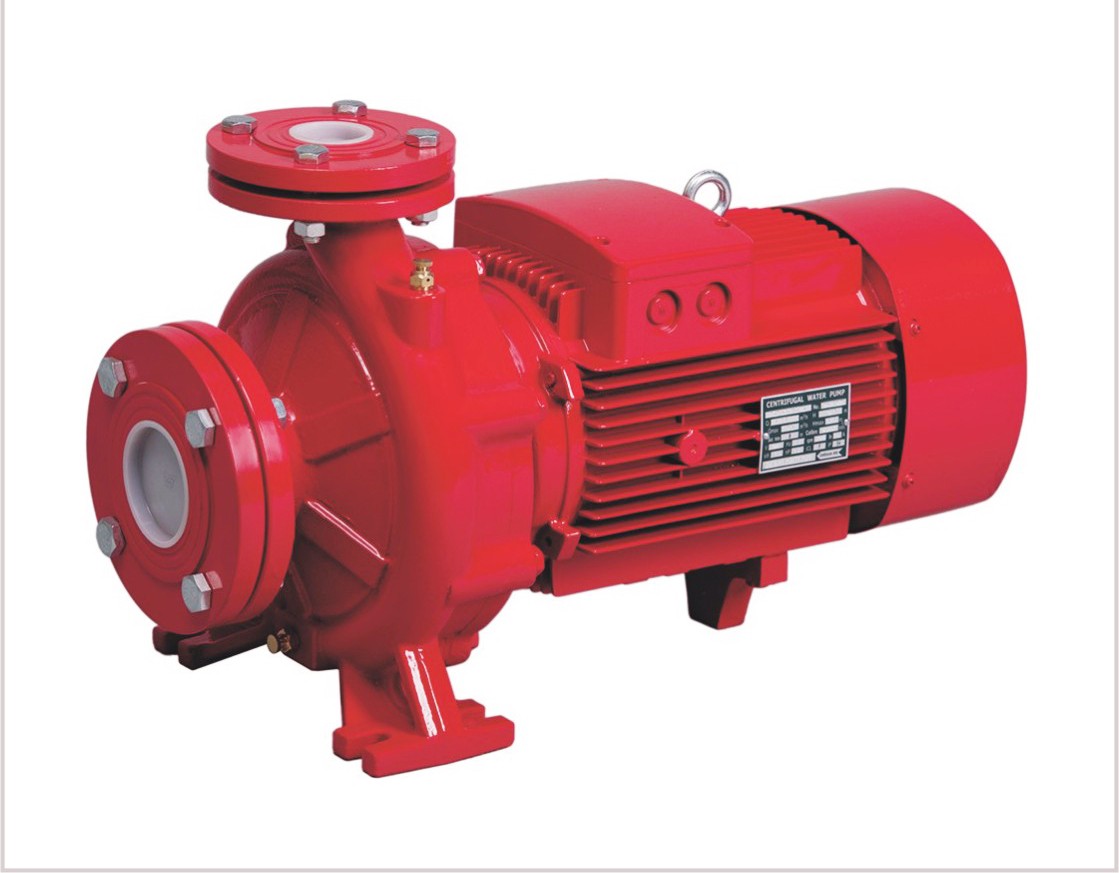

This EN733 standard centrifugal pump is engineered for superior performance in fluid transfer and pressure boosting applications. Featuring a high-efficiency motor with IP55 protection and a robust anti-corrosive pump casing, it provides reliable operation in demanding environments. Available with multiple material options for impellers and shafts, this pump is designed for long-term durability and continuous duty, making it an ideal choice for industrial, agricultural, and firefighting systems.
Technical Specifications
- EN Standard
- EN733
- Motor Type
- Square MotorRound Motor
- Motor Efficiency
- YE3 High Efficient
- IP Protection Class
- IP55
- Insulation Class
- F
- Duty Cycle
- S1 Continuous
Materials
- Impeller Material
- Stainless Steel AISI 304Cast Iron
- Shaft Material
- Stainless Steel AISI 304Galvanized Iron
- Casing Coating
- Anti-corrosive
Operating Limits
Operational Thresholds
-10 °C
Min Liquid Temp
120 °C
Max Liquid Temp
50 °C
Max Ambient Temp
16 bar
Max Working Pressure
Applications
Suitable Applications
- Water supply
- Pressure boosting
- Firefighting sets
- Agricultural irrigation
- Industrial processes
- Water circulation
- Climatisation systems
