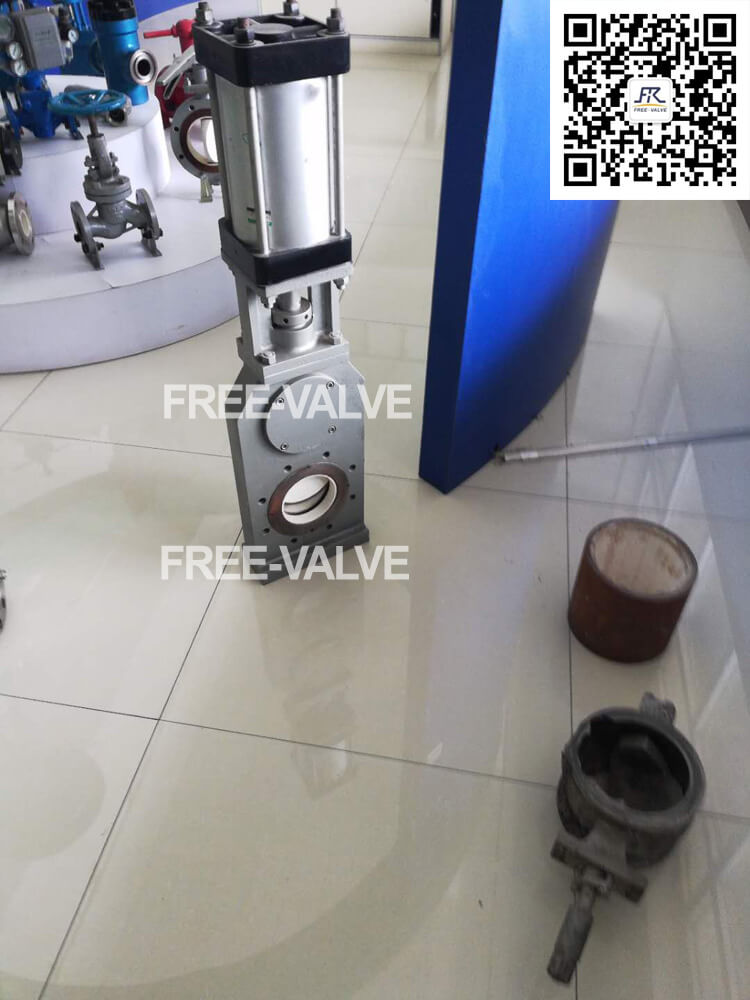

Ceramic Slurry Slab Gate Valve for Abrasive Media
This ceramic slurry slab gate valve is designed to cut off media containing solid particles and fibers. Ceramic components make the valve suitable for erosive mediums containing hard solid particles.
Technical Specifications
Overview
High-Performance Ceramic Slurry Handling
Ceramic Knife Gate Valves are engineered for high-performance slurry handling, featuring a simple, space-saving structure that effectively manages abrasive media containing solid particles and fibers. The sealing surfaces are constructed from advanced engineering ceramics, ensuring superior abrasion resistance and a significantly extended service life compared to traditional metal-seated valves. Designed with a single-seat configuration to prevent clogging and ash accumulation, these valves offer reliable performance in demanding industrial applications such as mining, power generation, and wastewater treatment.
Technical Specifications
Operating Temperature
Body Material Options
Connection Types
- Flange
- Wafer
Operating Modes
- Manual
- Electric
- Pneumatic
- Size Range
- NPS 2 to NPS 24 / DN 50 to DN 600
- Pressure Ratings
- Class 150PN 6PN 10
Compliance & Standards
Design Standards
| Standard Type | Reference |
|---|---|
| Pressure Test | GB/T13927, API598 |
| Face to Face | GB/T12221, API609 |
| Valve Body | GB/T12224, ASME B16.34 |
Applications
- Suitable Industries
- Iron & SteelPower PlantsPaper IndustryWastewater TreatmentMiningCoal Processing
