Product Overview

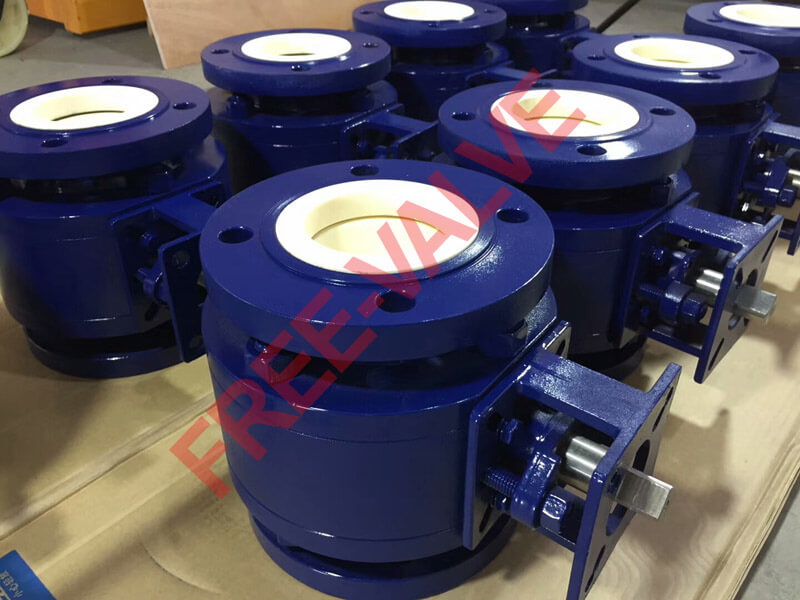

High-Performance Ceramic Lined Valve

This 3-piece floating ball valve is engineered with specialized ceramic internal parts to provide exceptional wear and corrosion resistance. Designed for demanding industrial applications, it excels in handling abrasive solids and corrosive media with a hardness rating exceeding HRC80. The floating ball design ensures a tight seal against the downstream seat, making it ideal for both open/close functions and throttling control.

Technical Specifications

Nominal Pressure: 1.0 MPa, Class 150
Size Range: DN50 - DN200 (NPS 2 - NPS 8)
Max Working Temperature: 200 ℃
Connection Type: Flange
Flange Standards: ASME B16.5GB/T9113
Pressure Test Standards: GB/T13927API598
Face to Face Standards: GB/T12221API609

Material & Design

Ceramic Hardness

80 HRC

Hardness

Available Actuation Types

Manual Lever
Gear Box

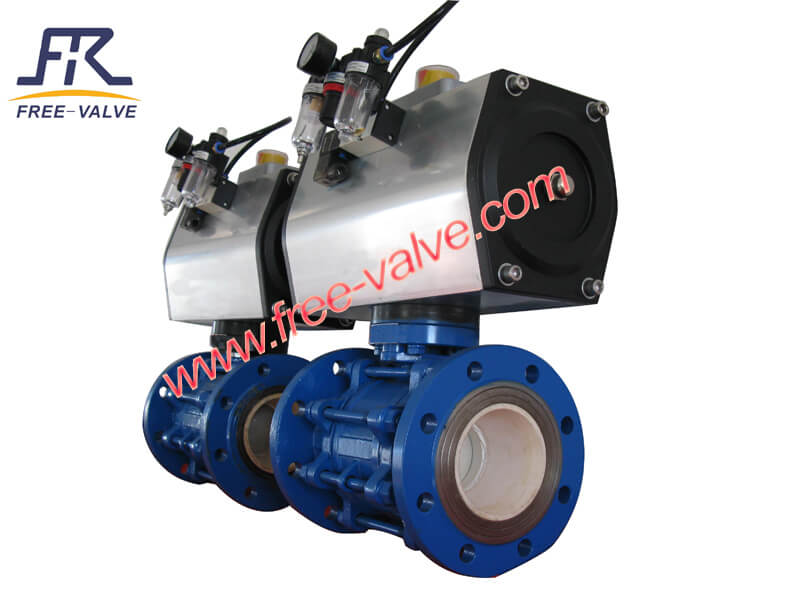

Pneumatic Actuator
Electric Actuator
Hydraulic Actuator

Sealing Surface Material: Engineering Ceramic

Applications

Suitable Media & Applications

Silicon PowderAlumina PowderDry Coal PowderLimestone SlurryGypsum SlurryPlasterFly AshMining OreCoal Powder InjectionMetallurgical DustFGD SystemsLiCoO2 Powder
