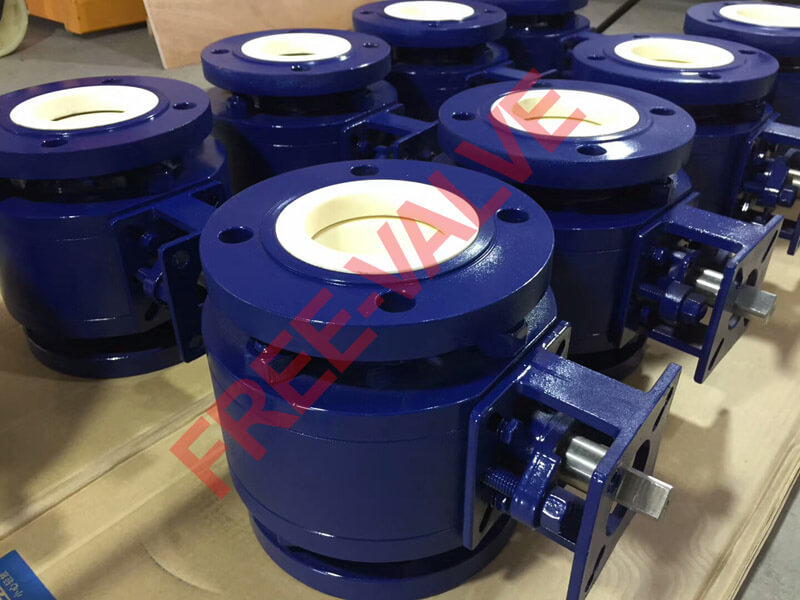

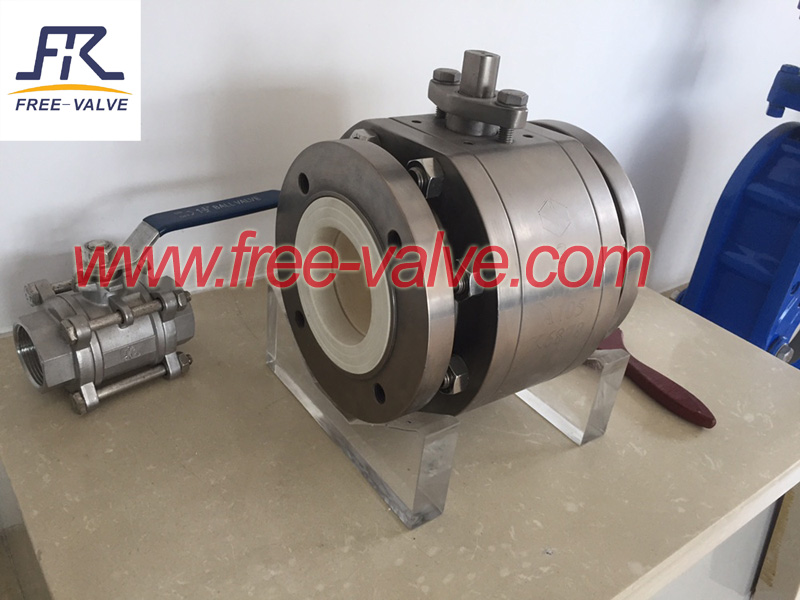

Ceramic Lined Composite Ball Valve with O Port
This ceramic-lined composite ball valve features an O port for enhanced abrasion resistance. The valve is suitable for corrosive media with abrasive solids, providing reliable shutoff and precise flow control.
Technical Specifications
Overview
High-Performance Ceramic Lined Ball Valve
This O Port Ceramic Lined Composite Ball Valve is engineered for superior wear and corrosion resistance in demanding industrial environments. Utilizing advanced engineering ceramics with hardness exceeding HRC80, it provides exceptional durability when handling abrasive solids and corrosive media. The floating ball design ensures reliable sealing against downstream seats, making it an ideal choice for both open/close functions and throttling control tasks.
Technical Specifications
- Nominal Pressure
- 1.0 MPa, Class 150
- Size Range
- DN50 to DN200 (NPS 2 to NPS 8)
- Connection Type
- Flange
- Flange Standards
- ASME B16.5GB/T9113
- Max Working Temperature
- 200 ℃
Design & Materials
Ceramic Hardness
80 HRC
Minimum Hardness
Available Actuation
- Manual Lever
- Gear Box
- Pneumatic Actuator
- Electric Actuator
- Hydraulic Actuator
- Sealing Surface Material
- Engineering Ceramic
Applications
- Suitable Media & Applications
- Silicon PowderAlumina PowderDry Coal PowderLimestone SlurryGypsum SlurryFly AshMining OreMetallurgical DustLiCoO2 Powder
