Technical Specifications
Overview

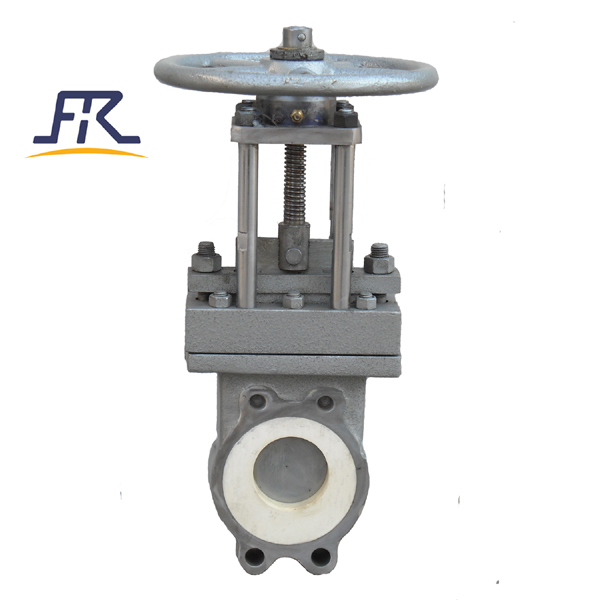

Ceramic Knife Gate Valve for Slurries
This ceramic knife gate valve is specifically engineered for challenging industrial environments involving slurries, solid particles, and fibrous media. Featuring a robust ceramic sealing surface, it provides exceptional abrasion resistance and extended service life compared to traditional metal-seated valves. Its compact, lightweight design facilitates easy installation while preventing clogging and residue accumulation.
Technical Specifications
Operating Temperature
0 °C
Min Temp
200 °C
Max Temp
Body Materials
WCBCF8CF8MCF3M
Operating Modes
- Manual
- Electric
- Pneumatic
- Size Range
- NPS 2 to NPS 24 / DN 50 to DN 600
- Pressure Rating
- Class 150PN6PN10
- Connection Types
- FlangeWafer
Compliance & Standards
Design & Testing Standards
| Category | Standard |
|---|---|
| Pressure Test | GB/T13927, API598 |
| Face to Face | GB/T12221, ASME B16.10 |
| Valve Body | GB/T12224, ASME B16.34 |
Applications
- Suitable Industries
- MiningPower PlantIron and SteelPaper IndustryWastewater TreatmentCoal Processing
