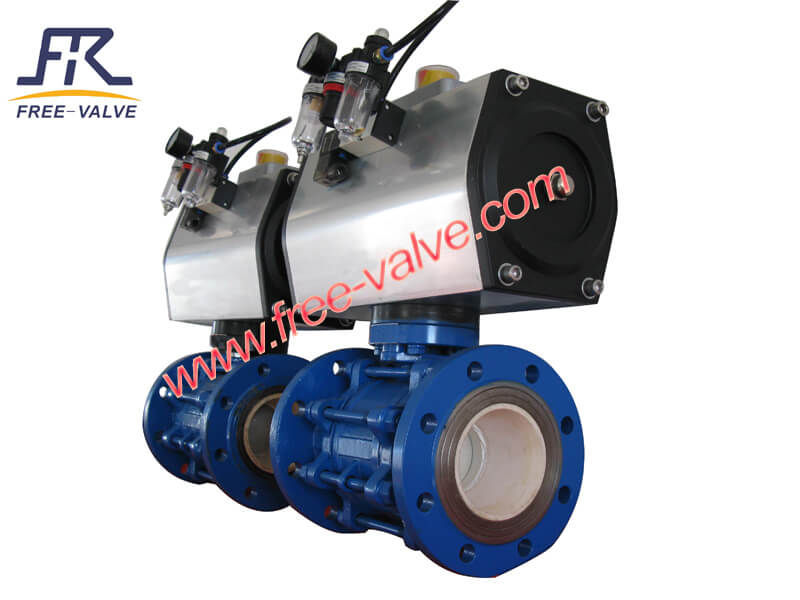

Ceramic Ball Valve with Abrasion Resistant Flange
This ceramic ball valve is engineered with ceramic internal parts for exceptional wear resistance. It is designed for open/close and throttling control in corrosive media containing abrasive solids.
Technical Specifications
Product Overview
Industrial Ceramic Ball Valve
Engineered for extreme environments, these ceramic ball valves provide superior protection against corrosive and abrasive media. The internal ceramic components, boasting a hardness exceeding HRC80, ensure long-term durability in challenging tasks like slurry handling and throttling control. Featuring a floating ball design for reliable sealing, these valves are an essential component for high-wear industrial applications.
Technical Specifications
Nominal Pressure
1 MPa
Pressure
- Size Range
- DN50 to DN200 (NPS2 to NPS8)
- Max Temperature
- 200 °C
- Connection Type
- Flange
- Flange Standards
- ASME B16.5GB/T9113
Construction
Material Specifications
- Sealing surface: Engineering ceramic
- Ceramic hardness: >HRC80
- Design: Floating ball
Available Actuation
ManualPneumaticElectricHydraulic
Standards & Compliance
Testing Standards
| Standard Type | Reference |
|---|---|
| Pressure Test | GB/T13927, API598 |
| Face to Face | GB/T12221, API609 |
Applications
- Industry Applications
- Silicon PowderAlumina PowderDry Coal PowderLimestone SlurryGypsum SlurryFly AshMining OreThermal Power
