Technical Specifications
Product Overview

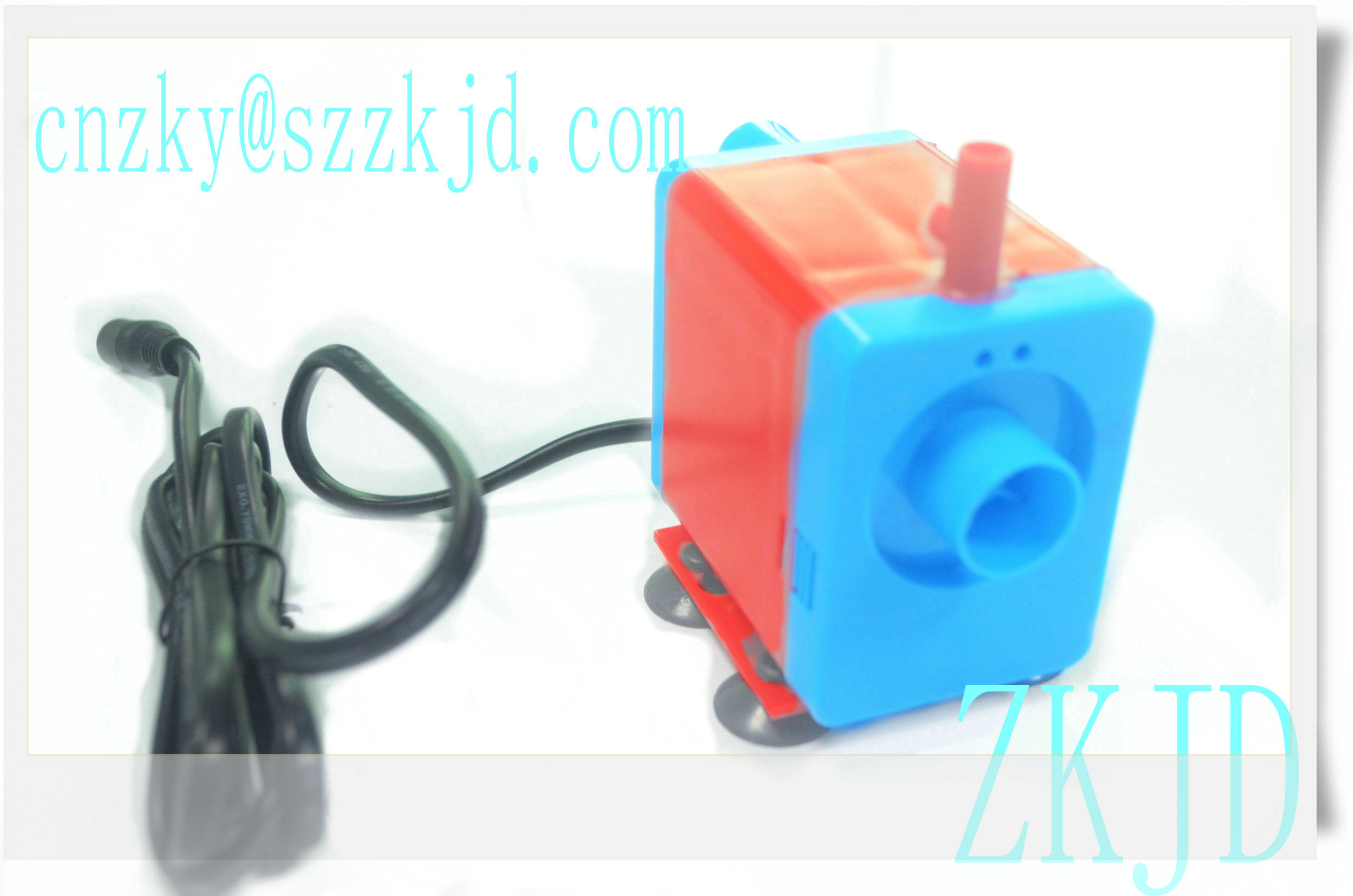

Compact Centrifugal Pump
This efficient centrifugal water pump is designed for reliable water circulation in small to medium-sized setups. With a submersible design and a maximum head of 1.0 meter, it is suitable for aquariums, hydroponics, and various water-based systems. It utilizes brushless, permanent magnetic technology to ensure energy-efficient operation and quiet performance.
Performance Metrics
Key Operating Metrics
1 m
Max Head
600 L/H
Max Flow Rate
5 W
Power Consumption
Technical Specifications
Electrical Requirements
- Rated Voltage: 12VDC
- Max Rated Current: 0.42A
- Driving Method: Brushless, Permanent Magnetic
Physical Dimensions
| Property | Value |
|---|---|
| Size | 71.5mm x 70mm x 50mm |
| Weight | 0.42kg |
| Outlet Diameter | 16mm |
- Material
- ABS
Environmental and Usage
- Operational Conditions
- SubmersibleFresh Water CompatibleSalt Water Compatible
- Max Working Temperature
- 60 Celsius
