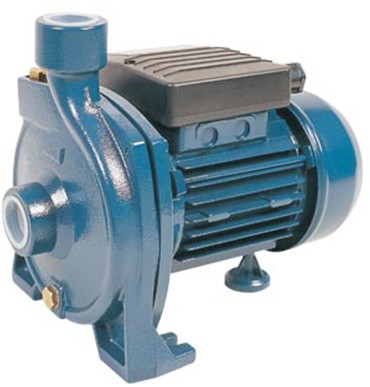

Centrifugal Water Pump
This centrifugal water pump is designed for transferring clean water and non-aggressive chemical liquids. It is suitable for domestic and industrial applications, including garden, hotel, villa, and agricultural irrigation.
Technical Specifications
Product Overview
High-Efficiency Centrifugal Pumps
The SCPM series pumps are designed for high efficiency and energy savings, featuring a compact, robust structure that is easy to maintain. These pumps are engineered to deliver high head performance with efficient flow, making them ideal for both domestic and industrial applications. They are suitable for conveying clean water and non-aggressive chemical liquids, serving diverse needs from garden irrigation to hotel water supply.
Technical Specifications
Insulation Class
Class BClass F
- Max Ambient Temperature
- 40 °C
- Max Fluid Temperature
- 80 °C
- Max Pressure
- 10 bar
Construction Materials
Material Composition
- Pump Body: Cast Iron
- Motor Housing: Aluminum
- Shaft: 45# Steel / Stainless Steel
- Impeller: Brass
Performance Data
Model Performance Metrics
| Model | Power (kW) | Q.max (l/min) | H.max (m) | N.W (kg) |
|---|---|---|---|---|
| CPM128 | 0.37 | 90 | 22 | 9.3 |
| CPM146 | 0.55 | 100 | 28 | 12.3 |
| CPM158 | 0.75 | 110 | 34 | 14.3 |
| CPM180 | 1.1 | 120 | 42 | 21.8 |
| CPM200 | 1.5 | 130 | 47 | 24 |
Usage Guidelines
- Installation Requirements
- Pumps must be installed in a covered area, protected against the weather.
