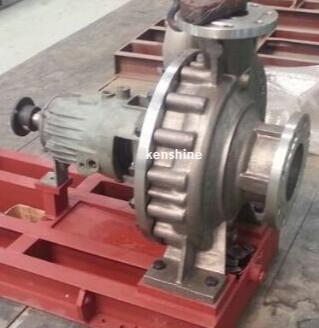

Centrifugal Pump for Petrochemical Applications
This centrifugal pump is designed for demanding applications in the petrochemical industry. Its robust construction and centrifugal action provide a consistent flow rate for fluid transfer and circulation.
Technical Specifications
Overview
High-Performance Petrochemical Process Pump
The ZA/ZAO series is a horizontal, single-stage centrifugal pump engineered to comply with API 610 and VDMA 24297 standards for heavy-duty industrial service. Designed for maximum reliability, it handles chemically aggressive, hot, or cold liquids in demanding sectors like oil refineries, chemical processing, and seawater desalination. With its robust radial split volute casing and advanced sealing options, this pump provides a consistent and efficient solution for complex fluid transfer requirements.
Performance Metrics
Operating Metrics
2,600 m3/h
Max Capacity
250 m
Max Head
2.5 MPa
Max Pressure
Technical Specifications
Design Features
- Horizontal radial split volute casing
- Single entry radial impeller
- Centerline support
- Hydraulic balance via wear rings and balance holes
- Casing cover with cooling/heating connections
- Temperature Range
- -20 to 180 °C (up to 450 °C with centerline support)
- Compatible Flange Standards
- DINANSI
Application Suitability
Suitable Pumping Media
- Sulphuric acid
- Nitric acid
- Hydrochloric acid
- Phosphoric acid
- Sodium hydroxide
- Sodium carbonate
Target Industries
PetrochemicalRefineriesCoal ProcessingPaper and PulpSugarDesalinationOffshore
