Centrifugal Fan for HVAC and Air Purification
This centrifugal fan is designed for HVAC and air purification systems. Its compact structure, efficient impeller, and robust construction ensure optimal airflow and reliable operation.
Technical Specifications
Overview

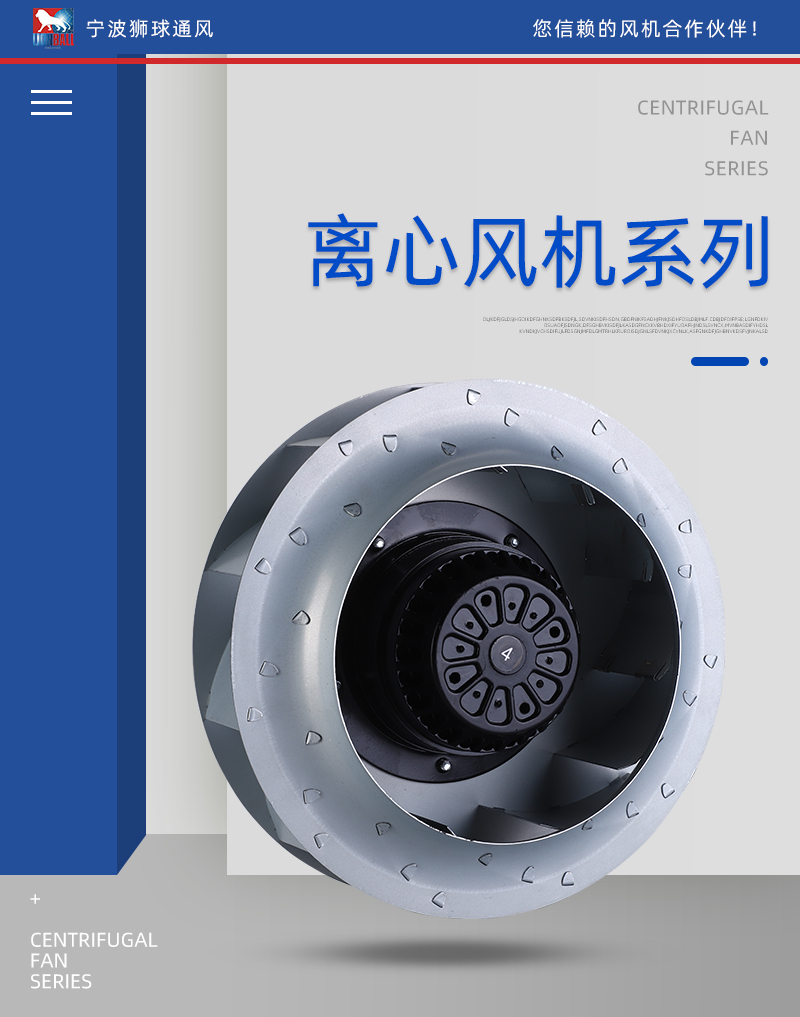

High-Performance Centrifugal Fan

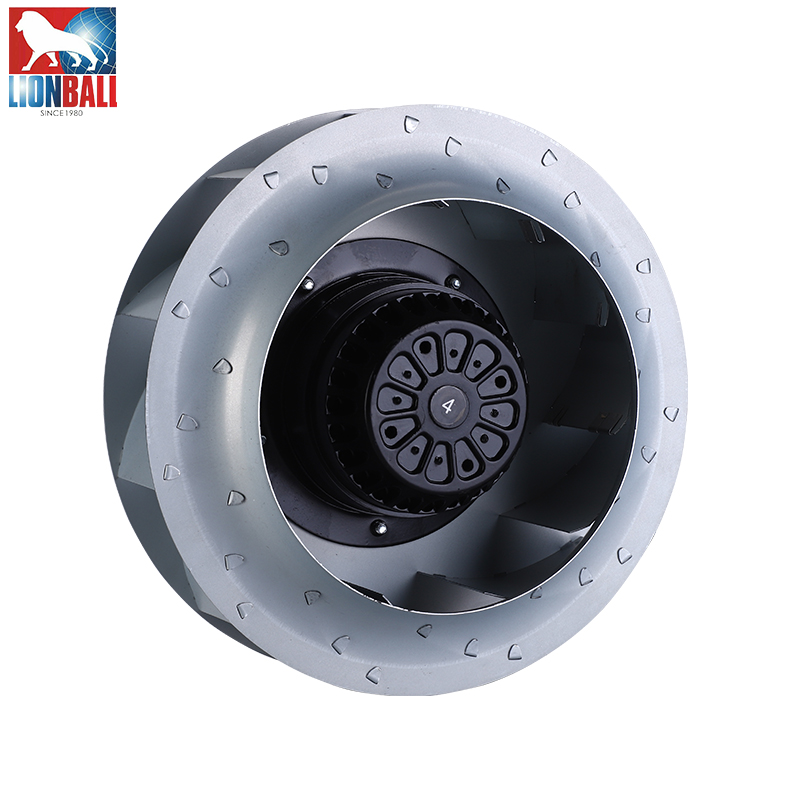

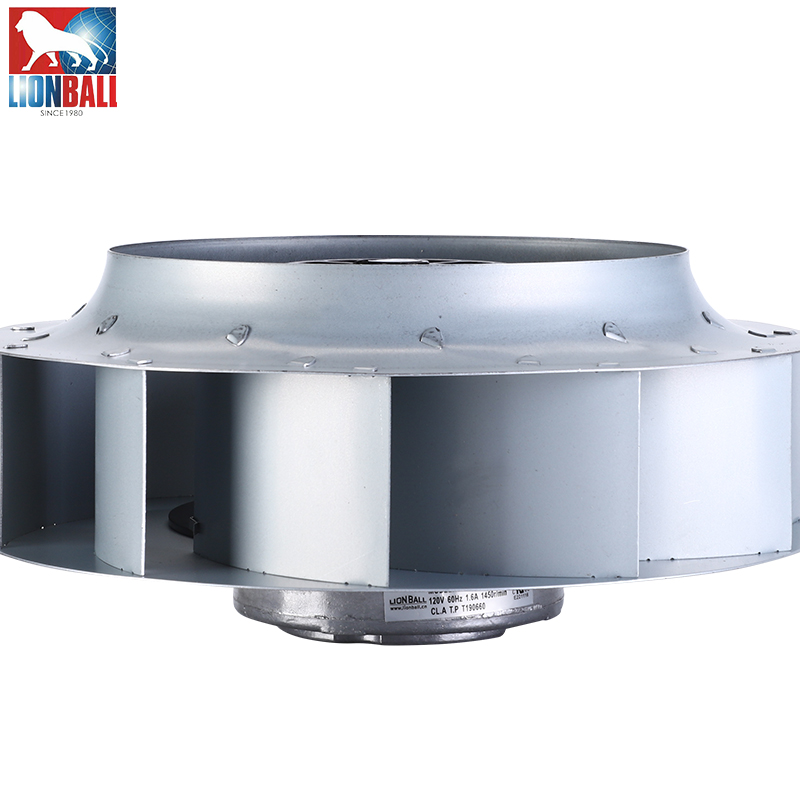

The YWFB250 is a robust centrifugal fan engineered for demanding HVAC and air purification applications. It features a compact structure and professional design that ensures high efficiency with low noise levels during operation. Designed for easy installation and a long service life, this fan is an ideal solution for maintaining optimal airflow in ventilation systems and air handling units.
Key Features
Core Benefits
- Compact and space-saving structure
- Professional aerodynamic design
- Fine process control for reliability
- Simplified installation process
- High efficiency with low noise output
- Extended service life for long-term use
Technical Specifications
Performance Metrics (Model YWFB2E250)
1,450 m³/h
Max Air Flow
2,550 RPM
Rated Speed
77 dB(A)
Noise Level
185 W
Input Power
Electrical Data
| Parameter | Value (50/60Hz) |
|---|---|
| Rated Voltage | 115V / 230V |
| Rated Current | 1.3A - 1.6A (at 115V) |
| Capacitance | 4µF - 16µF (model dependent) |

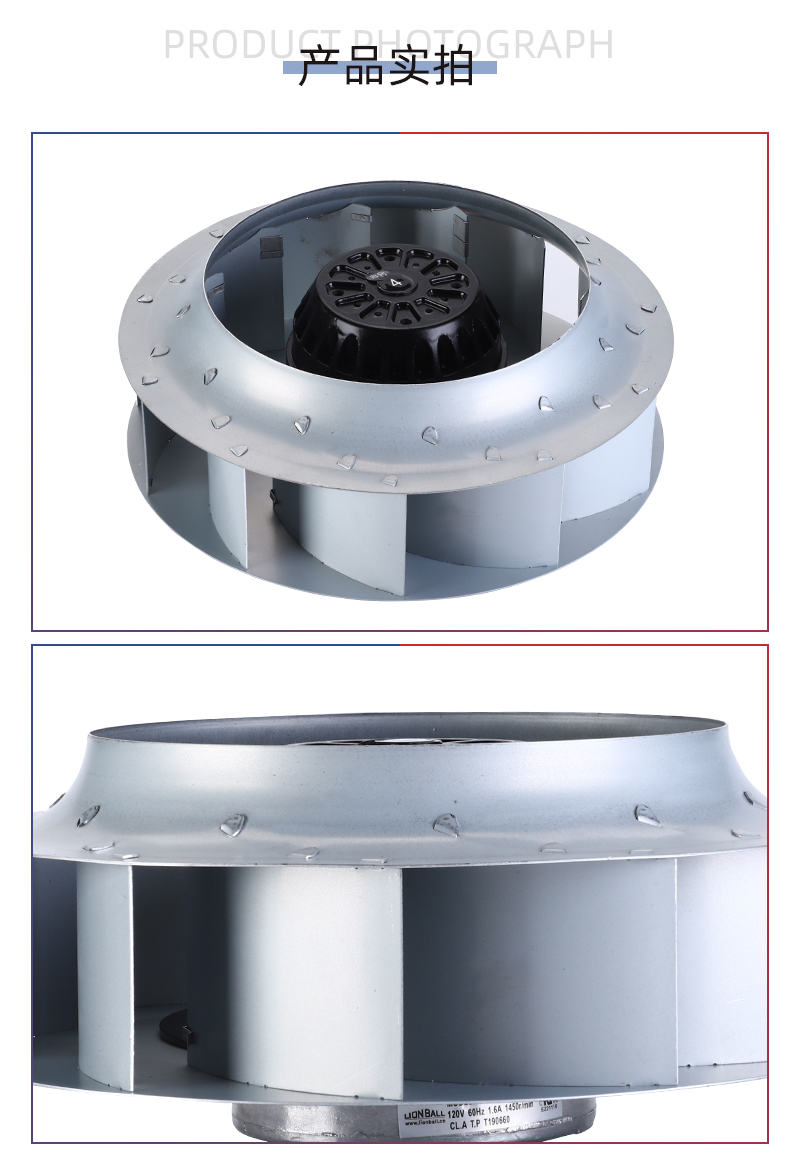

| Motor Type | External Rotor Motor |
Applications
- Application Areas
- HVAC SystemsAir PurificationMedical TreatmentNew EnergyCommercial SupermarketsIndustrial AutomationTransportation SystemsRefrigeration
Compliance & Quality
Certifications
CEULVDERoHSCCCISO 9001ISO 14001
Purchase Information
Ordering Process
- Style selection and project determination
- Design draft submission and detail confirmation
- Quotation and form validation
- Proofing and bulk production
- Quality inspection and packaging
