Ceiling Mounted Exhaust Fan with Metal Cover
This ceiling mounted exhaust fan features a metal cover. It is designed for long life and low noise operation.
Technical Specifications
Product Overview
High-Performance Metal Exhaust Fan
This ceiling-mounted exhaust fan is engineered for durability and safety, featuring a full metal casing and housing for superior fire resistance. Its super-slim design allows for industry-leading integration into various ceiling types, making it an ideal choice for bathrooms and kitchens. Designed for powerful air extraction with low noise levels, it ensures a long-lasting and efficient ventilation solution for residential or commercial spaces.
Key Features
Core Features
- Full metal casing for high performance fire resistance
- Super slim casing for industry-leading integration
- Powerful air volume design
- High efficiency motor
- Quiet wind wheel design
- Durable construction for long life
Performance Highlights
Performance Metrics
Low
Noise Level
High
Fire Resistance
Technical Specifications

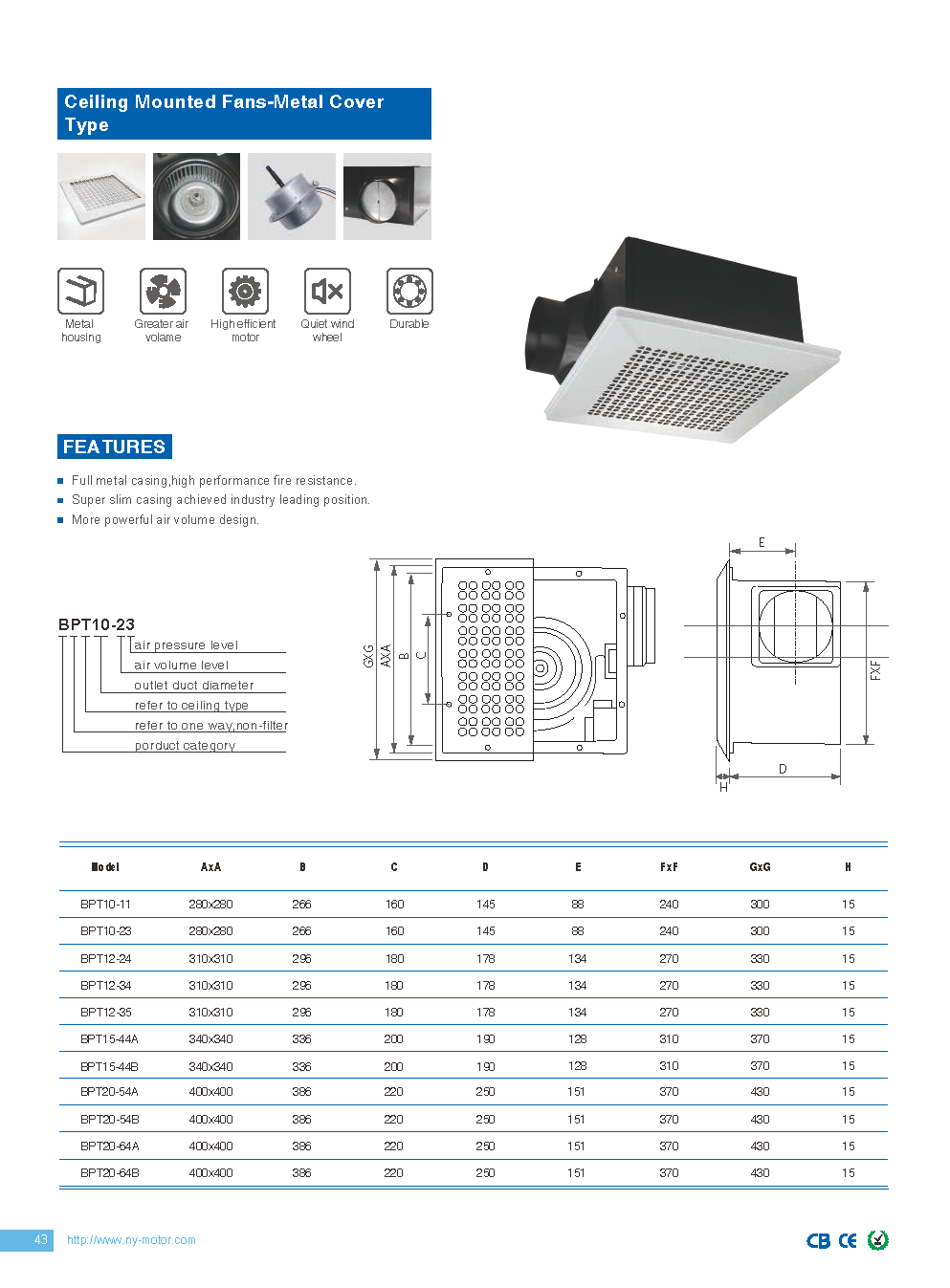

Model Dimensions & Sizing
| Model | Panel Size (AxA) mm | Installation Size (GxG) mm | Duct Diameter (D) mm |
|---|---|---|---|
| BPT10-11 | 280x280 | 240 | 88 |
| BPT10-23 | 280x280 | 240 | 88 |
| BPT12-24 | 310x310 | 270 | 134 |
| BPT12-34 | 310x310 | 270 | 134 |
| BPT12-35 | 310x310 | 270 | 134 |
| BPT15-44A | 340x340 | 310 | 128 |
| BPT20-54A | 400x400 | 370 | 151 |
| BPT20-64A | 400x400 | 370 | 151 |
Design & Build
- Casing Material
- Full Metal
- Mounting Type
- Ceiling Mounted
- Cover Type
- Metal Cover
Compliance & Certifications
Certifications
CECB
