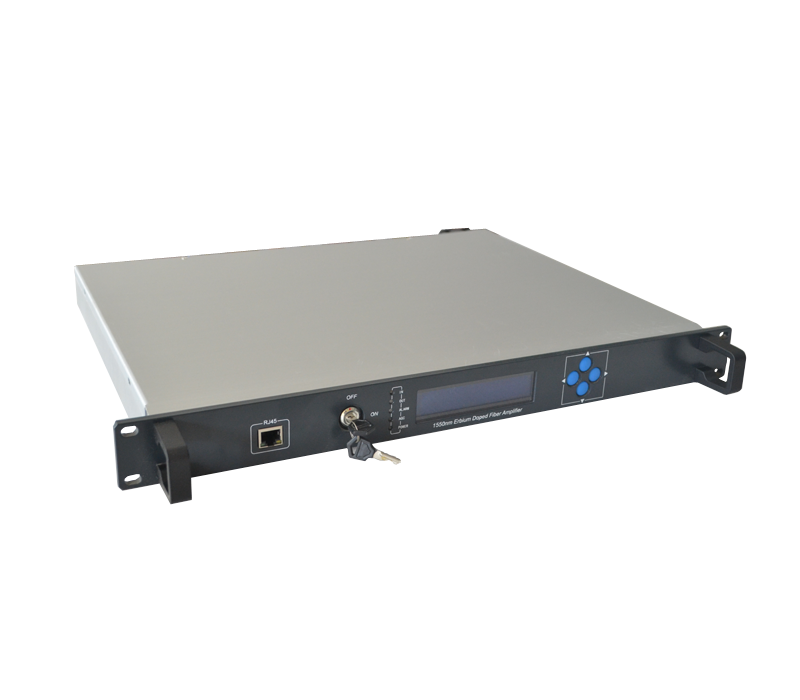

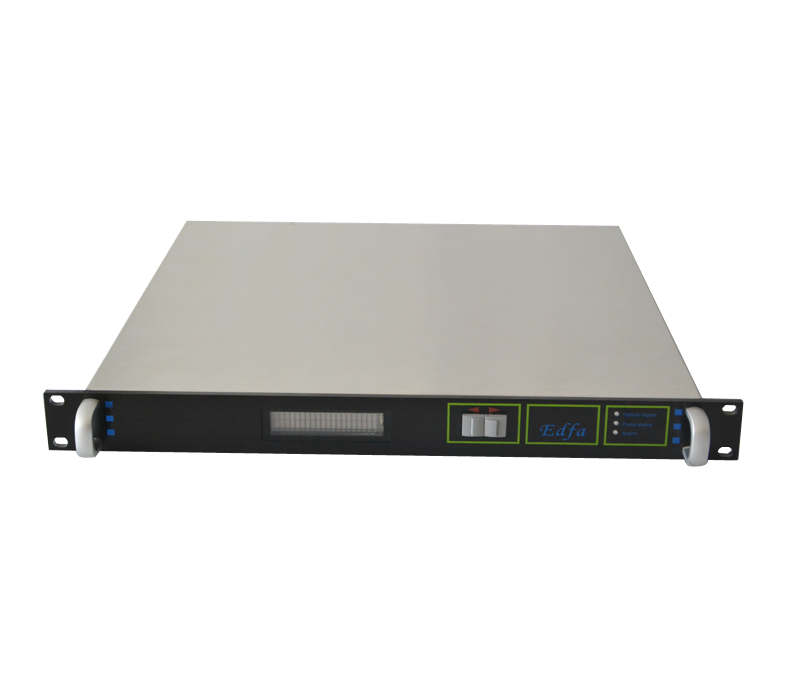

CATV 1550nm EDFA Fiber Optic Amplifier
This CATV 1550nm EDFA fiber optic amplifier is designed for cable television applications. The amplifier boosts optical signals in CATV networks, ensuring signal integrity and extending transmission distances.
Technical Specifications
Product Overview
High-Performance CATV 1550nm EDFA
The YOA-1500nm series Erbium-Doped Fiber Amplifier (EDFA) is a high-output solution designed for 1550nm CATV signal transmission. Engineered with high-quality erbium-doped fiber and a double-pump laser structure, it delivers exceptional stability, low noise, and high gain. This unit is ideal for long-distance transmission, capable of covering over 100km when used in front-enlarge and relay-enlarge configurations.
Optical Specifications
Saturated Output Power
10 dBm
Min
33 dBm
Max
Input Power Range
-10 dBm
Min
10 dBm
Max
- Working Wavelength
- 1550 nm
- Noise Figure
- 4.6 dB @ 0dBm Input
System Features
Key Features
- Double-pump laser structure for high output and low noise
- Real-time monitoring of input/output power and pump laser parameters
- Network management software support via front-end computer
- Advanced APC (Auto Power Control) and ATC (Auto Temperature Control) circuits
- High-quality switching power supply with auxiliary cooling
- Wide voltage range adaptability
- Interface Ports
- RJ45USBOptical InputOptical Output
