Cat6 Ethernet Cable with Integrated Power
This Cat6 Ethernet cable provides reliable data transmission. It also features an integrated power cable for simplified installation.
Technical Specifications
Product Overview
High-Performance Integrated Data & Power Solution

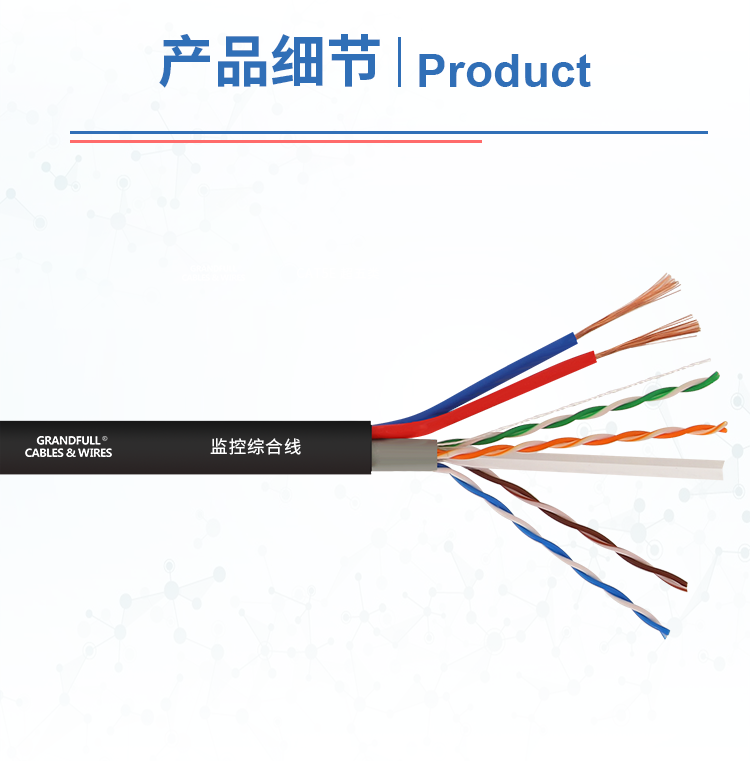

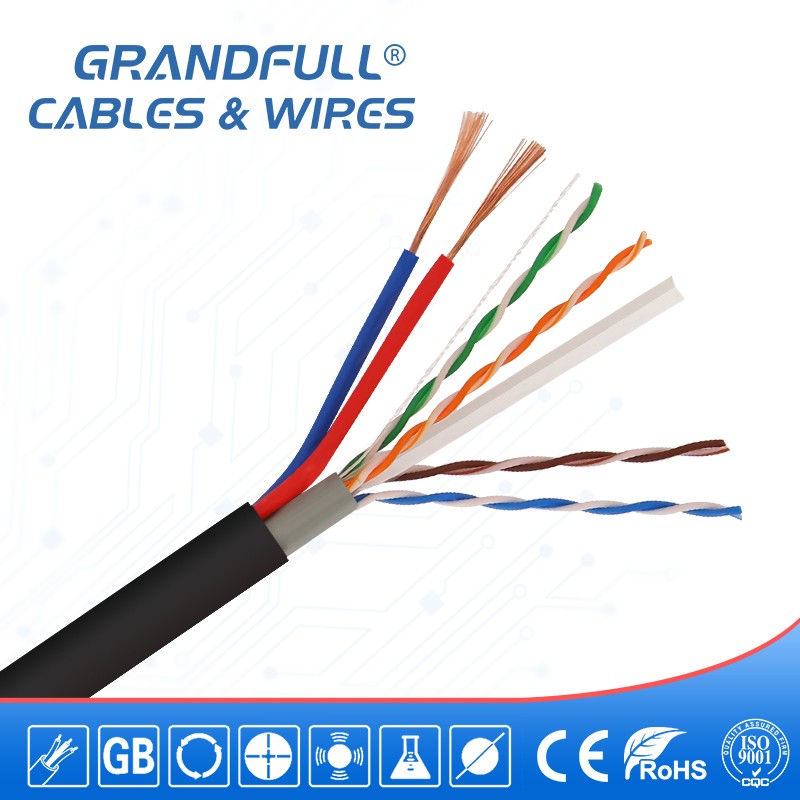

This Cat6 Ethernet cable features integrated power conductors, providing a streamlined single-cable solution for networking and surveillance systems. Designed for indoor installations, it offers long transmission distances with minimal signal loss and high resistance to wear and pressure. It is an ideal choice for 5G networks, intelligent buildings, and security applications requiring both high-speed data and reliable power delivery.
Technical Specifications
Cable Construction
| Component | Specification |
|---|---|
| Cat6 Conductor | 4*2*0.57mm (0.5mm/0.56mm optional) |
| Power Conductor | 0.5mm² / 0.75mm² |
| Conductor Material | Bare Copper (BC) |
| Insulation Material | Polyethylene (PE) |
| Jacket Material | PVC |
| Twisted Pairs | Four Pairs |
- Max Resistance Imbalance
- 2.5 %
Performance Metrics
Performance Metrics
100 Ohm
Impedance
6.58 Ω/100m
Max DC Resistance
5,000 MΩ·km
Insulation Resistance
Features & Customization
Key Features
- Integrated power supply (2C) for simplified wiring
- High wear and pressure resistance
- Optional shielding and conductor diameters
- Optional rip cord and center splitter
- OEM service available for jacket color and printing
Compliance & Quality
- Certifications & Testing
- ISO9001ISO14001ISO18001CERoHSFluke Tested
Applications
Typical Applications
5G NetworksIP SurveillanceIntelligent BuildingsSmart HomesVoice & Image Transmission
Logistics & Packaging

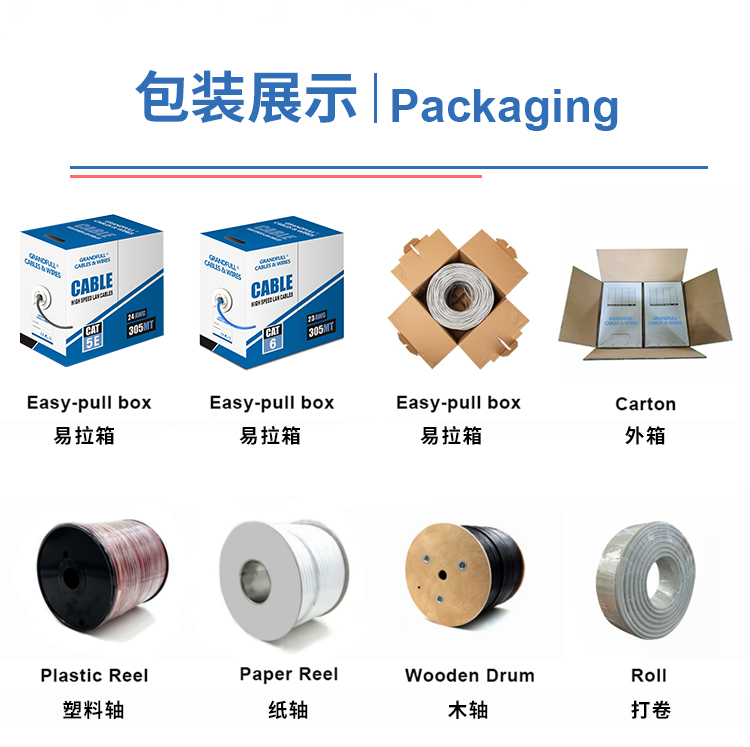

Packaging Types
- Easy-pull box (305m)
- Plastic Reel
- Paper Reel
- Wooden Drum
- Roll
