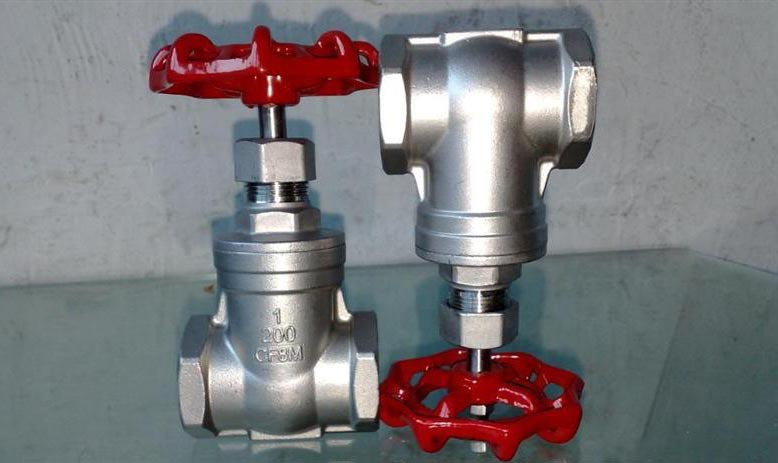

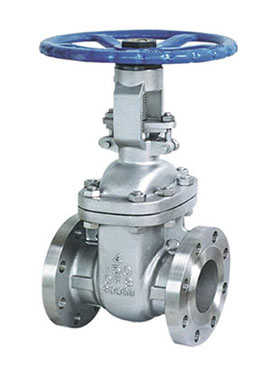

Cast Steel Wedge Gate Valve
This cast steel wedge gate valve is designed for industrial applications requiring efficient flow control. The wedge-shaped gate ensures a tight shut-off, minimizing leakage and maximizing system efficiency.
Technical Specifications
Overview
Industrial Cast Steel Wedge Gate Valve
This robust cast steel wedge gate valve is engineered for reliable on/off control in demanding industrial environments, including oil, chemical, and power generation sectors. Featuring a flexible wedge design for superior sealing and wear compensation, the valve ensures long-term durability with hardened alloy-overlaid sealing surfaces. Its versatile construction, available in various body materials and trim configurations, makes it an ideal solution for water, steam, oil, and corrosive chemical applications.
Technical Specifications
Operation Methods
HandwheelGearElectricPneumaticHydraulic
- Size Range
- 2" ~ 60" (DN50 ~ DN1500)
- Pressure Rating
- ANSI 150lb ~ 2500lb
- Body Materials
- Carbon SteelStainless SteelAlloy SteelDuplex Steel
Compliance & Standards
Applicable Standards
| Category | Standards |
|---|---|
| Design | API 600, BS1414, DIN3352 |
| Face to Face | ASME B16.10, EN 558, DIN3202 |
| End Flange | ASME B16.5, ASME B16.47, DIN2533 |
| Buttwelding Ends | ASME B16.25, DIN3239 |
| Inspection/Test | API 598, DIN3230 |
Design Features
Design Highlights
- Full port design
- OS&Y (Outside Screw and Yoke)
- Bolted bonnet with back seal structure
- Flexible wedge, fully guided
- Choice of solid or split wedge
- Renewable or welded seat options
- Extended stem design for low-temperature service
