Technical Specifications
Product Overview

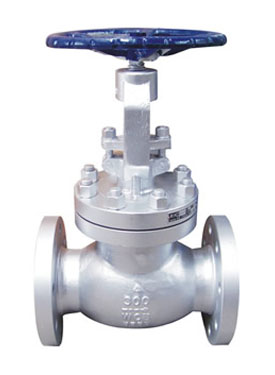

Industrial Cast Steel Globe Valve
This cast steel globe valve is engineered for demanding industrial applications, including oil, chemical, fertilizer, and power generation sectors. It features a robust, straight-pattern design with a seat seal surface overlaid with hardened alloy for superior wear resistance. Designed for safety and reliability, the valve includes a bolted bonnet with back-seal structure, ensuring consistent performance even under high-pressure conditions.
Performance & Range
- Size Range
- 2" ~ 24" (DN50 ~ DN600)
- Pressure Rating
- ANSI 150lb ~ 1500lb
- Compatible Media
- WaterSteamOil ProductsNitric AcidAcetic AcidOxygenation
Design Standards
Standard Compliance
| Category | Standards |
|---|---|
| Design | BS 1873, ASME B16.34, DIN3356 |
| Face to Face | ASME B16.10, EN 558, DIN 3202 |
| End Flange | ASME B16.5, DIN 2501 |
| Inspection & Test | API 598, DIN3230 |

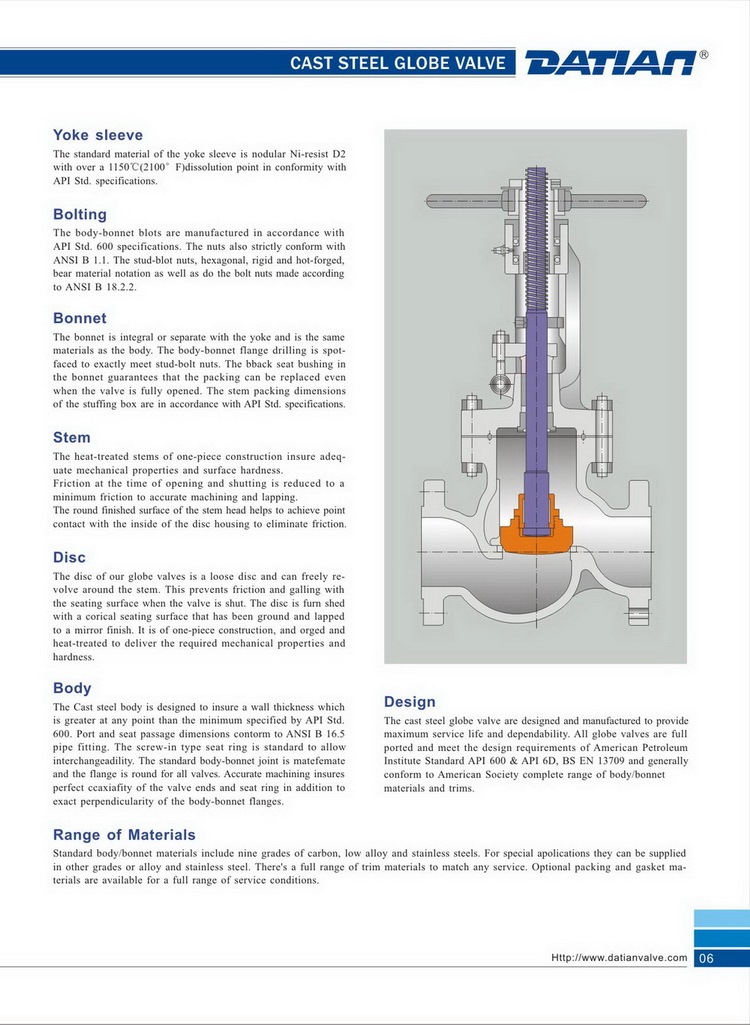

Construction Features
Key Design Features
- Straight pattern body design
- OS&Y (Outside Screw and Yoke)
- Bolted bonnet with back seal structure
- Renewable or welded seat
- Impact handwheel for 10" and above
- Extended stem design for low temperature
Operation Methods
HandwheelGearElectricPneumaticHydraulic
Materials
- Body Material Options
- Carbon SteelStainless SteelAlloy SteelDuplex Steel
