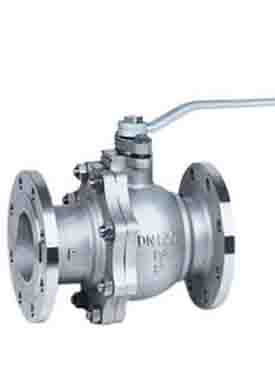

Cast Steel Floating Ball Valve
This cast steel floating ball valve features a two-piece bolted body and is designed for maximum rigidity against pipeline thrust. It is available in full or reduced bore configurations and with pressure ratings from ANSI 150 up to ANSI 2500 Lbs.
Technical Specifications
Overview
Cast Steel Floating Ball Valve
Designed for demanding industrial environments, this floating ball valve provides reliable on/off control for applications ranging from oil and gas to chemical processing and food production. The floating ball mechanism ensures a tight, reliable seal against the downstream seat under medium pressure, while the blowout-proof stem and fire-safe construction enhance operational safety. Available in full or reduced port configurations, this valve is engineered for longevity and ease of maintenance in critical piping systems.
Technical Specifications
Operation Methods
- Lever
- Gear
- Electric Actuator
- Pneumatic Actuator
- Hydraulic Actuator
- Size Range
- 1/2" to 10" (DN15 to DN250)
- Pressure Ratings
- 150lb300lb600lb
- Body Materials
- Carbon SteelStainless SteelAlloy Steel
- Trim Materials
- A105+ENP13CrF304F316

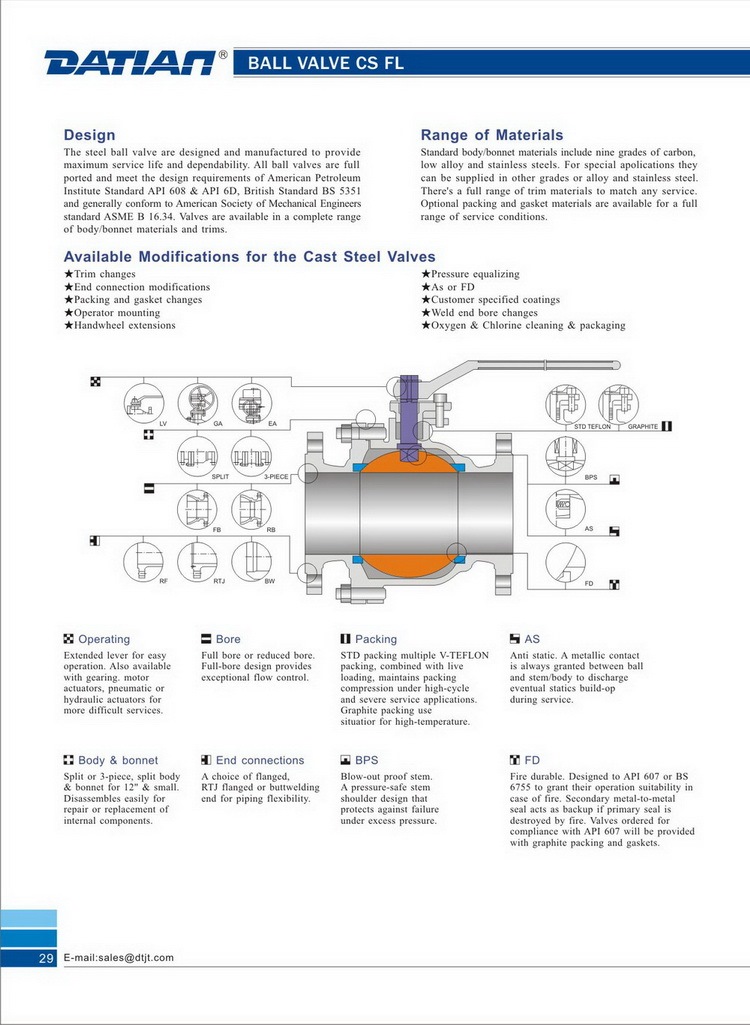

Design Features
Safety & Design Features
Compliance Standards
Industry Standards
| Category | Standard |
|---|---|
| Design | API 6D, ASME B16.34, API 608, BS 5351, MSS SP-72 |
| Face to Face | API 6D, ASME B16.10, EN 558 |
| End Connection | ASME B16.5, ASME B16.25 |
| Inspection & Test | API 6D, API 598 |
