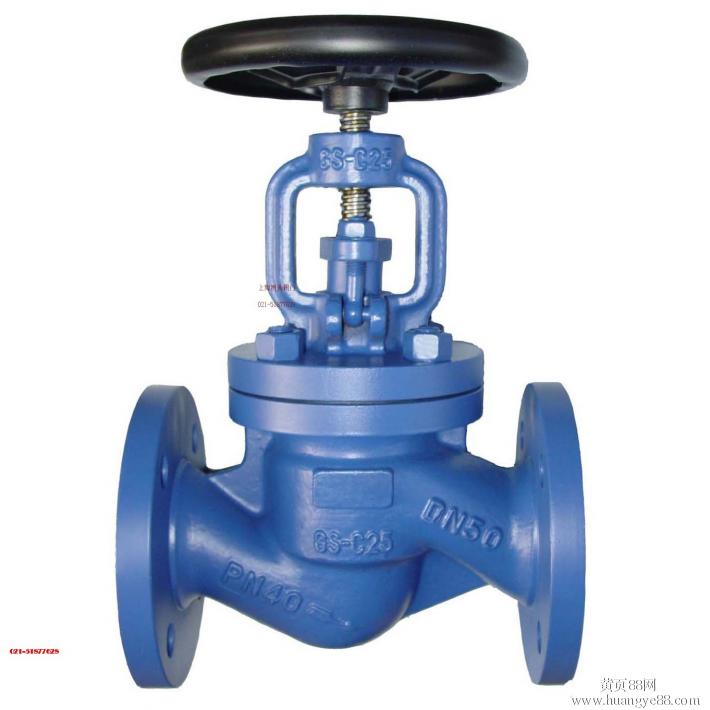

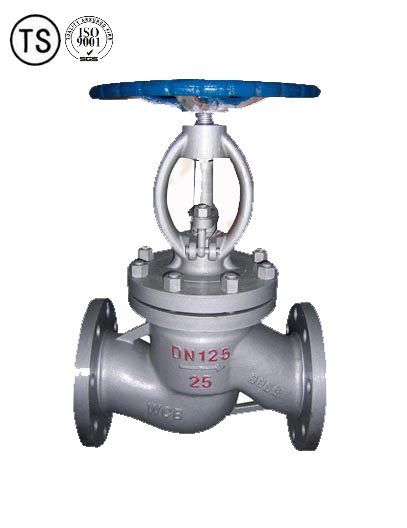

Cast Iron Globe Valve
This cast iron globe valve is designed for industrial applications. It features flanged connections and a handwheel for manual operation.
Technical Specifications
Overview
Industrial Cast Iron Globe Valve
This robust cast iron globe valve is engineered for reliable flow control in industrial piping systems. Designed for both shut-off and throttling applications, it features a durable cast iron or ductile iron body and bonnet construction. With flanged connections, this valve ensures a secure and stable installation suitable for water, oil, and gas environments.
Technical Specifications
- Nominal Diameter Range
- DN40 - DN300
- Pressure Ratings
- PN10PN16125LB150LB
Materials & Construction
- Body and Bonnet Material
- Cast Iron / Ductile Iron
- Disc Material
- Stainless Steel
- Operation Type
- Manual Handwheel
Standards & Compliance
Certifications
ISO 9001SGSTS
- Design Standards
- DIN3202ANSI
Performance Metrics
Key Performance Indicators
16 bar
Standard Pressure Rating
300 DN
Max Nominal Diameter
