Product Overview

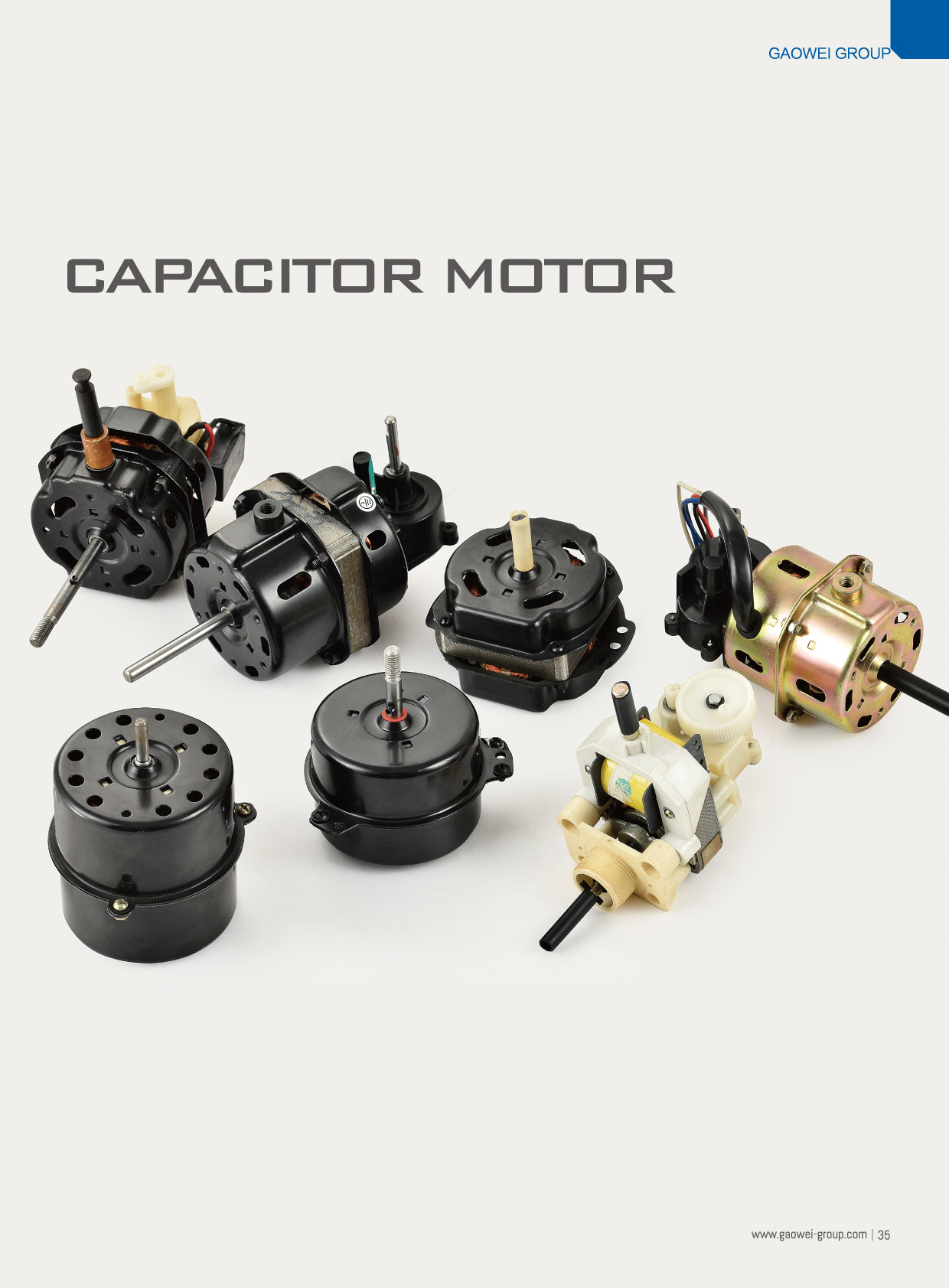

High-Performance Capacitor Run Motors
These capacitor run motors are engineered specifically for ventilation and HVAC applications, offering reliable performance for residential, commercial, and industrial equipment. Built with a focus on durability and efficiency, the series features insulation class B construction to ensure long-lasting operation in demanding environments. Each unit is designed to meet rigorous standards, with options available for various voltage and frequency requirements to suit global market needs.
Technical Specifications
Customization
- Voltage
- Frequency
- Shaft elongation
- Insulation Level
- Class B
- Voltage Range
- 100V110V-120V220V-240V230V
- Frequency
- 50Hz60Hz
Performance Metrics
Operating Range
35 W
Min Input Power
350 W
Max Input Power
0.14 A
Min Current
3.5 A
Max Current
Model Data
Sample Model Specifications
| Model | Voltage (V) | Freq (Hz) | Power (W) |
|---|---|---|---|
| YSY-7113-001 | 220-240 | 50 | 35 |
| YSY-7113-002 | 110-120 | 60 | 44 |
| YSZ-7112-001 | 220-240 | 50 | 40 |
| YSZ-7117-004 | 110-120 | 60 | 53 |
